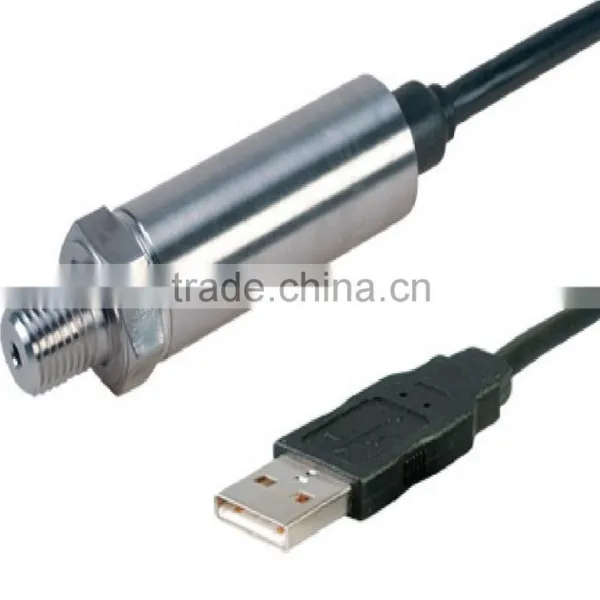

IPD50U USB Pressure Transmitter
With USB Adapter and software
The IPD50U USB pressure transmitter is suitable for connection to any PC with a USB port, via the USB adapter.
The USB pressure transmitter are stainless steel housing available with measuring ranges up to 1,000 bar. The USB adapter automatically detects the measuring range of the currently connected pressure transmitter and ensures a highly accurate pressure measurement
l Recording interval can be set from 200 ms ... 10 s
l Measuring ranges from 0 ... 25 mbar to 0 ... 1,000 bar
l Accuracy: 0.25 %
l No external voltage supply required
l Software for recording of measured values, calibration and evaluation
Sensor Parameters: | |||||
Ref. Temp.:25℃ | |||||
parameter: |
Min. |
Typ. |
Max. |
Unit |
Remarks |
|
Accuracy(include linearity, hysteresis and repeatability ) |
-0.25 |
|
+0.25 |
%Span |
1 |
Long stability(1year) |
-0.25 |
|
+0.25 |
%Span |
|
Total tolerance |
-1.0 |
|
+1.0 |
%Span |
2 |
Compensation Temp. |
-20 |
|
+85 |
℃ |
|
Working Temp. |
-40 |
|
+125 |
℃ |
|
Storage Temp. |
-40 |
|
+150 |
℃ |
|
Burst Pressure |
5X |
|
|
Rated |
|
Virbration |
-20 |
|
+20 |
g |
3 |
Shock |
50 |
|
|
g |
4 |
Recycles |
10 |
|
|
million |
|
Overload Pressure |
2X |
|
|
Rated |
|
Weight |
82 |
|
|
grams |
|
Compatible Media |
|
304/316 |
|
|
|
|
Contact the factory for special model
|
|
|
|
|
|
USB Parameters: | |
PC connection |
Standard USB connector (type A) Power(V) |
Recording interva |
1 ms ... 10 s, adjustable via software Min Typ. Max. |
Recording options |
selectable start/stop conditions, pre-trigger, stop-delay 4.75 5 5.25 |
Power supply |
Supply via USB port 8 30 |
Operating temperature |
-25 ... +50 °C 9 30 |
Storage temperature |
-25 ... +70 °C 8 30 |
Relative humidity |
0 ... 95 % r. h. (non-condensing) 15 30 |

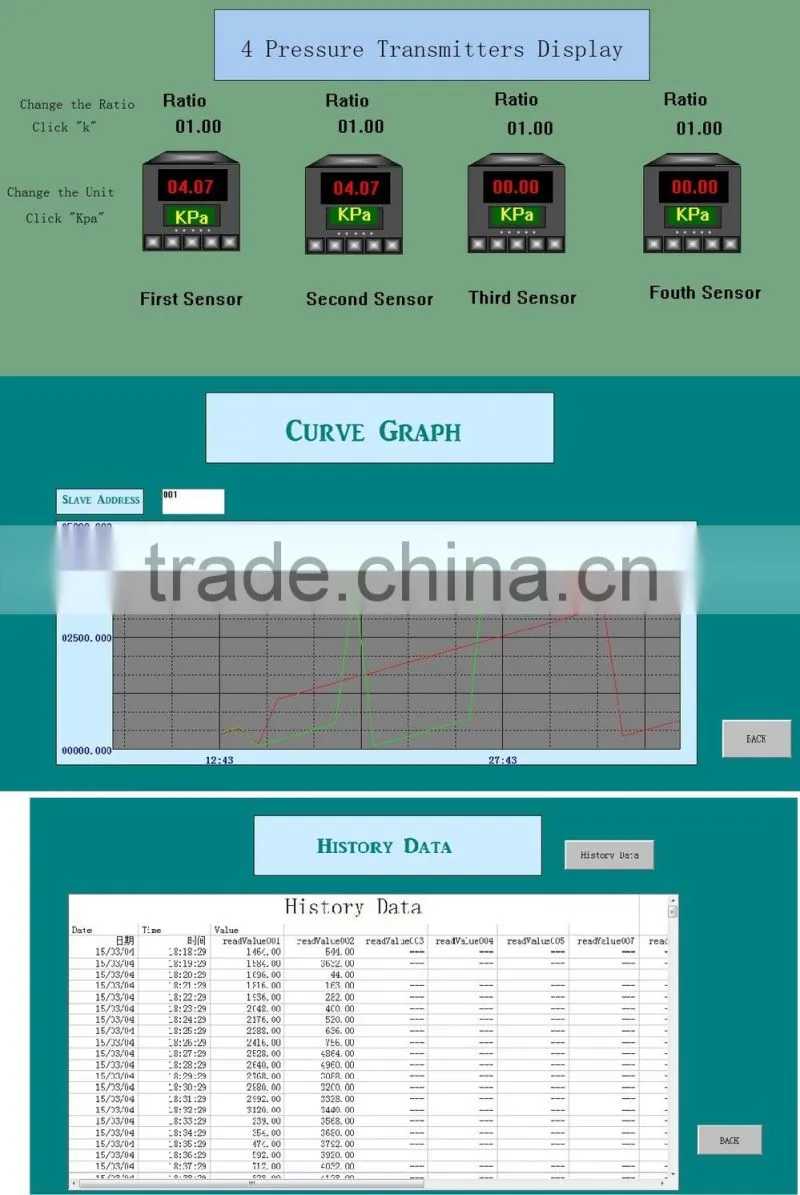

Software: |
Pressure transmitter IP10: https://img13.fr-trading.com/product/60186702736-801137010/4_20mA_water_pressure_transmitter_water_pipe_pressure_transmitter_water_tank_pressure_transmitter.html
Mini pressure sensor: https://img13.fr-trading.com/product/60214863151-801137010/pipe_pressure_sensor_pressure_plate_sensor_oil_pressure_sensors.html
wireless pressure transmitter: https://img13.fr-trading.com/product/60188011842-801137010/Wireless_Pressure_Transmitter_RS485_pressure_Transmitter_433M_Pressure_Transmitter.html
differential pressure sensor: https://img13.fr-trading.com/product/60205114200-801137010/4_20mA_differential_pressure_sensor_differential_pressure_transmitter_differential_pressure_level_transmitter.html
air differential pressure sensor: https://img13.fr-trading.com/product/60211298235-801137010/0_5V_low_cost_differential_pressure_sensor_air_differential_pressure_sensor.html
submersible pressure level sensor: https://img13.fr-trading.com/product/60187654964-801137010/4_20mA_water_tank_level_transmitter_submersible_pressure_transmitter_pressure_level_meter.html
USB Pressure sensor: https://img13.fr-trading.com/product/60187604926-801137010/Digital_Pressure_sensor_RS485_pressure_sensor_MODBus_Pressure_sensor.html
Air pressure sensor: https://img13.fr-trading.com/product/60227038902-801137010/Intake_air_pressure_sensor_differential_pressure_sensor_Absolute_Pressure_Sensor.html
Temperature sensor: https://img13.fr-trading.com/product/60242388091-801137010/Temperature_Sensor_Digital_Temperature_Sensor_Temperature_transmitter.html
Data logger: https://img13.fr-trading.com/product/60229939131-801137010/IP13_digital_pressure_gauge_water_pressure_gauge_small_pressure_gauge.html
All products are warranted to change new one for fault for our product quality for one (1) year from the date of purchase from an authorized dealer of Basis products.
