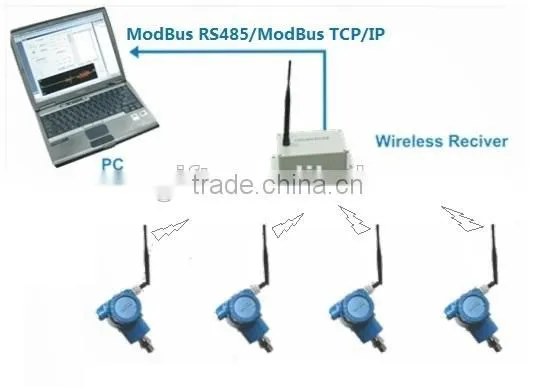

IPD50W Wireless pressure transmitter is compiance with MODBUS RS485 protocol, it can realize the 255 units to be one wireless net communication,.
It uses silicon diaphragm sensor or capacitance sensor, with stainless steel housing, using professional IC circuit over a wide temperature rangeof zero and full scale performance compensation.So it can detect a large number of monitoring points in the region-wide real-time data of the network systems, such as the liquid tank testing, storage tanks and oil and water pressure monitor,other industrial field automation control.
Features: |
1) LCD display, wireless signal output
2) High-precision real-time performance, high sampling frequency, low frenquency, low power consumption
3) 2 relay outputs, 220VAC/3A;
4) 433MHZ wireless communication,emission range is 6-10KM
5) Can be in the chemical industry, metallurgy industry, oil and electricity automatic field
6) Maximum net points can reach 255 sensors
Pressure Part Parameter | ||
|
pressure medium |
gas or liquid compatible to wetted stainless steel |
|
pressure ranges |
-1...0~0.01bar...1000bar |
|
pressure type |
gauge(G),absolute(A),sealed gauge(S) |
|
output signal |
4~20mA |
|
accuracy |
0.25%FS , 0.5%FS |
|
long term stability |
<0.1%FS/year |
|
supply voltage |
10~30V DC |
|
Relay output(2 relays) |
220V/3A |
|
indicator |
4 digits LCD display |
|
compensation temperature range |
-20~+85°c |
|
working temperature range |
-40~+125°c |
|
temperature coefficient of zero |
0.2%FS/10°c |
|
temperature coefficient of span |
0.2%FS/10°c |
|
insulation resistance |
100MΩ@ 50VDC |
|
electrical connection |
M20×1.5 female |
|
material of wetted part |
1Cr18Ni9Ti |
|
material of membrane |
316L |
|
material of housing |
cast aluminium |
|
process connection |
G1/2 or others |
|
overload pressure |
150%FS |
Wireless Part Parameter |
Frenquency Range |
119~1050MHz |
Receiver Sensitivity |
-126dBm |
Emission Power |
31dBm |
Off Current |
30nA |
Stand_By Current |
50 nA |
Receiver Current |
10.0mA |
Emission Current |
450mA |
DATA Rate |
0.123~1M |
Emission Range |
10000 Meter In Condition(434M 2.4K) |
Electrical Connection |
Software: |
1) Please let us know the following information about the pressure transmitter
Requirements | ||
NO |
Technical Parameters |
|
1 |
Pressure range |
|
2 |
Output signal |
|
3 |
Cable length |
|
4 |
Quantity |
|
2) We will give you a competitive price and make invoice for you
3) After you payment, we will start to produce them for you.
4) We will ship goods by DHL,UPS ,Fedex.... If you have special require, please let me know
