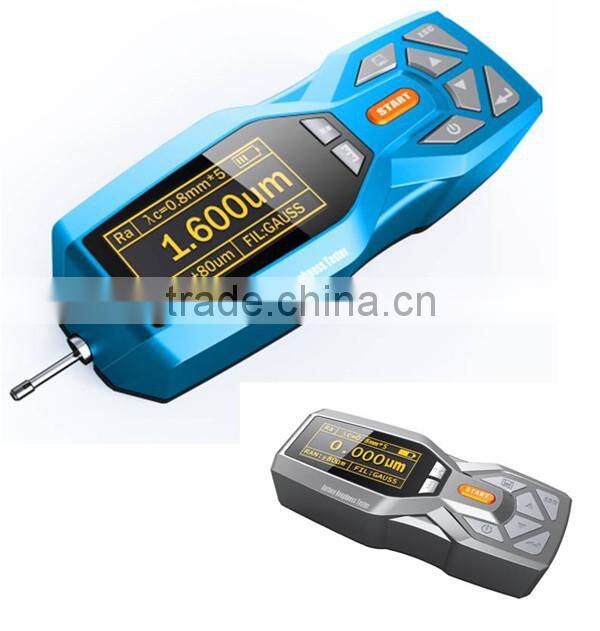

SX-Top quality small volume Surface Roughness Tester
Product Description
Product feature:
*Electromechanical integration design, small volume, light weight, easy to use;
*Using DSP chip to control and data processing, high speed, low power consumption;
*128 x 64 OLED dot matrix display, digital / graphic display; highlight no perspective;
*Intuitive and rich display information, can display all the parameters and graphics;
*Compatible with ISO, DIN, ANSI, JIS national standards
Instrument Function :
*Residual quantity icon, prompting the user to charge;
*Continuous working time: more than 20 hours.
*Real-time clock settings and display, convenient data recording and storage.
*With automatic dormancy, automatic shutdown and power saving function
*Reliable control motor to go dead circuit and software design
*Measurement information display, menu prompt information, false information and switch machine and other tips that information;
*Can be connected to a computer and printer;
*Optional different sensor, measuring platform, mini printer, extension rod and other accessories.
*Plastic shell, inspired by “TRANSFORMERS” stylish design, portable, high reliability.
*Optional bluetooth function.
*High price performance.
TR200 |
|
Testing parameters |
Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr, Rx; |
Measuring range (um) |
Ra: 0.005-16.000 Rz: 0.02-160.00 |
Sample length (mm) |
0.25, 0.80, 2.50 |
Evaluation length(mm) |
(1-5)L |
Maximum drive stroke |
17.5mm/0.7inch |
Indication accuracy |
0.001 |
Indication error |
±(7-10)% |
Variability |
<6% |
Data Storage |
100 groups |
Power |
Rechargeable li-battery |
Working temperature |
-20℃~40℃ |
Relative humidity |
<90% |
Size |
158mmx63.5mmx46mm |
Weight of Host |
0.3kg |
Standard configuration:
Name |
QTY |
|
1 |
Host |
1 |
2 |
Standard Sensor |
1 |
3 |
Calibration block and bracket |
1 |
4 |
Bracket |
1 |
5 |
Charger |
1 |
6 |
Adjustable support |
1 |
7 |
Operating manual |
1 |
8 |
Warranty card |
1 |
9 |
Certificate of approval |
1 |
10 |
Instrument case |
1 |
Roughness comparison block
High quality comparison block of surface roughness
Strict anti-rust treatment process
Mini Pinter
External printer for 200Packing: pack in suitcase and standard export carton
We supply one year warranty and a longlife maintenance.
We supply 24h online service.
Customer Service
"customer first" aways is our main goal , The technical support department solves all doubts and requirements from users by telephone, Internet, etc. We emphasize on product and service quality.
"Honesty and high quality , customers and service first" is our eternal aim.
1.How to Place an order?
In order to recommend you the most suitable Ultrasonic Flaw Detector and quote you the accurate price, please provide the
information as follows:
1. What forged parts or metal product do you want to detect?
2. How about the product size?
3. What metal is your product made of?
4. Do you have any special requirement for the technical parameters?
5. Which price terms and payment terms could you accept?
6. Please advise which shipping ways you will accept.
7. If you have agent from China, please provide your agent's contact information.
2. How do you ensure the quality of products?
We have a complete quality control system, all of our products were fully 100% inspected by professional QC departments before shipping.
All our products apply to ISO, ASTM, BS, EN, etc. Our products got CE certificate.
