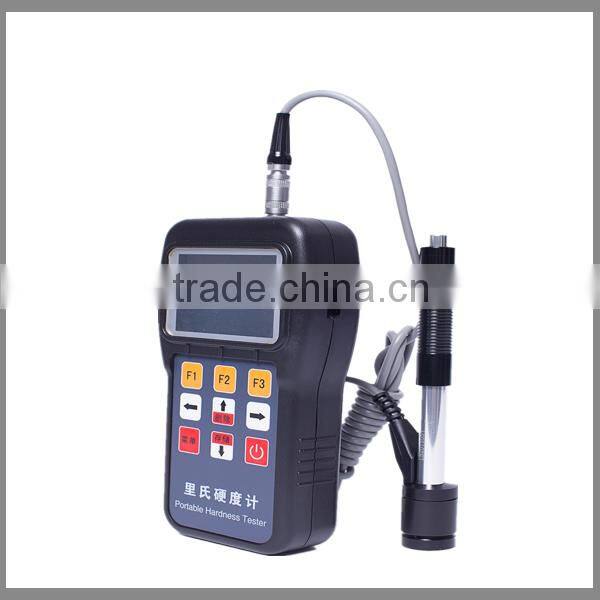

portable digital hardness tester
Function & Feature
l New design based on depth-studying into hardness testing principle, high precision test all metal materials.
l Testing materials can be user-defined.
l Easily switch to all hardness parameters (HL,HB,HRB,HRC,HRA,HV,HS).
l Large Screen LCD color display,WINDOWS interface, menu operation, information rich, intuitive.
l High brightness LED back-light, convenient in the dark.
l USB communication interface, can be convenient, shortcut for data exchange and parameter setting on PC.
l One main machine can be equipped with 7 different impact device, impact device can be automatic identification. No need to re-calibrate after replacement.
l Can store 600 groups of measuring data.
l Limit alarm setting if measuring data is beyond the limit.
l Plastic shell, resistance to vibration, shock, and electromagnetic interference.
l Low power consumption: Auto sleep, automatic shutdown function of saving energy.
l Ordinary alkaline battery, standby time 150 hours.
l Support user calibration function.
l Software to connect PC for micro-printer.
l Rechargeable lithium battery.
Measuring Materials:
l Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), an alloy of copper and tin, copper (bronze), forged steel.
Model |
leeb190 |
Measuring Range |
(170-960)HLD,(17.9-69.5)HRC,(19-683)HB,(80-1042)HV, (30.6-102.6)HS, (59.1-88)HRA, (13.5-101.7)HRB |
Hardness parameter |
HL, HRC,HRB, HRA,HS,HB,HV |
Accuracy |
Within±0.3%(HLD=800) |
Display |
Color LCD with back-light |
Memory |
600 groups |
PC Connection |
Available |
Printer |
No |
Battery |
Rechargeable Lithium Battery |
Operating Temperature |
-20℃~+60℃ |
Dimensions |
129×68×25mm |
Shell |
Plastic |
Impact Device Type |
D,DC,DL,D+15,G,C,E |
Weight |
230g |
Standard Delivery |
Main unit,Impact Device type D,Operation manual,Power charger,Small supporting ring,Cleaning brush, Certificate, USB cable,Test block with calibration,Packing Box. |
Optional Accessories |
Impact DC,D+15,DL,G,C,E, Shaped support ring |
CE Certificat
