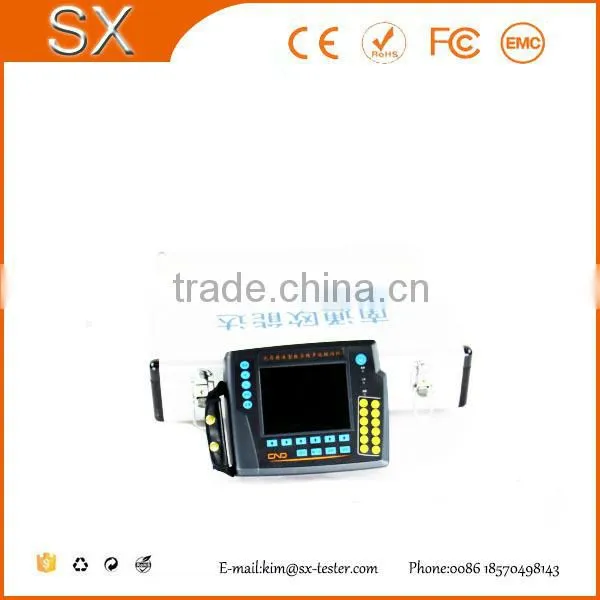

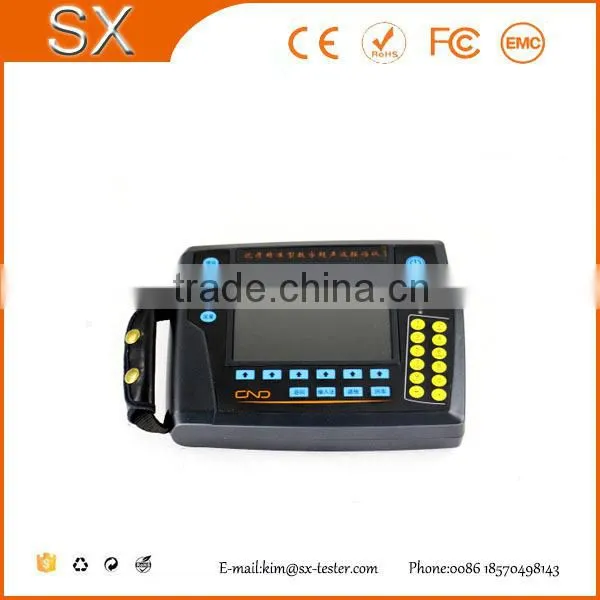

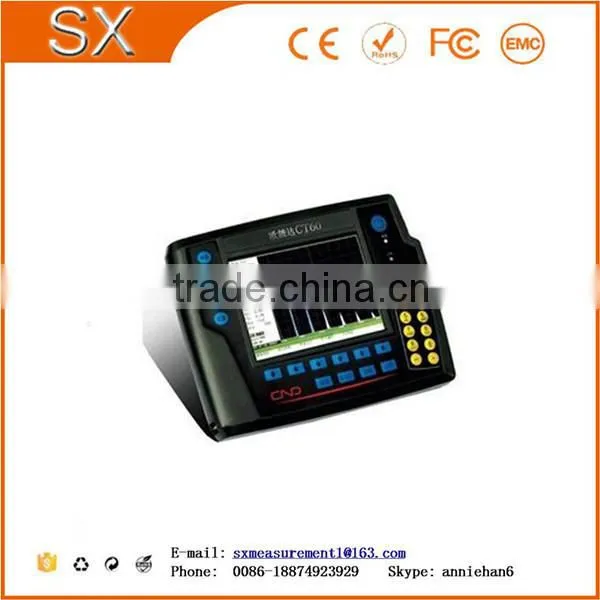

SX5600 Digital Portable Forged Parts Ultrasonic Flaw Detector

FOB Price

US$ 3,000 - 7,000 / Set

1 Set(Min. Order)

Port Shenzhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hunan, China	Brand Name	SX
Model Number	5600	Power	Electronic
Usage	Other, ultrasonic flaw detector, Detect

Product Description

SX5600 digital portable forged parts ultrasonic flaw detector

Product Description

Product name and model No.	SX5600 digital portable forged parts ultrasonic flaw detector
Transmitter Pulse Square Wave Pulser
Transmitter Pulse Voltage	25 ~ 400V, continuously
Test Modes	Pulse echo and dual transmission
Damping	400, 80 Ohm
Frequency	0.5 ~ 20MHz. Broadband / narrowband optional
Gain	0.0~ 120.0dB. Steps as 0.1, 1.0, 2.0, 6.0 dB
Material Velocity	1000 ~ 15000m/s continuously adjustable. 30 common material velocities selectable
Range	0.0~ 10000mm longitudinal wave at steel velocity. Range continuously variable with minimum 0.1mm
Rectification	Positive halfwave, negative halfwave, full wave, RF
Alarm	Real-time alarm signal indicated by horn or LED indicator.
Display	5.7" high-brightness TFT color LCD
Pulse Shift	-20 ~ 3400μs
Probe Zero Offset	0 ~ 999.9μs
Pulse Repetition Frequency (PRF)	25 ~ 1000Hz, auto and manual adjustment modes optional
Vertical Linearity Accuracy	≤2%
Horizontal Linearity Accuracy	≤0.1%
Surplus Sensitivity	≥65dB (200 dia. 2 flat bottom hole)
Resolutions	≥45dB
Dynamic Range	≥32dB
Reject (suppression)	0 ~ 99%
Electric Noise Level	<10%
Interface	C6 transducer connections, USB HOST, LAN, RF OUT, Two-dimensional encoder interface
Power Supply	Large-capacity Li Battery, no memory effect; Battery Operating time: More than 6 hours
Environmental Temperature	-20 ~ 50℃
Relative Humidity	20% ~ 95%RH

Specifications:

The SX5600 digital ultrasonic flaw detector offers state-of-the-art technology in a package that is compact and lightweight 1.28kg. It is a full-featured and reliable instrument which can be used in various industries. suitable for various detection demands of forged pieces, welding lines, airplane parts

The SX5600 adopts an embedded computer system and a super large-scale field programmable IC design, which combine all good performance of a large ultrasound system in a very small space: at least 65dB detection sensitivity surplus will meet detection demand for large forged pieces or coarse-crystal material; LAN Ethernet port
for real-time communication with a PC (Host) and remote control; Cine loop function for recording the dynamic scanning process; The new-type color TFT LCD results in ptimize read & measure effect and visual comfort; The simple but convenient surface wave tracking function is good for immersion detection; Together with new techniques and new functions such as DAC, RF echo display, large memory and USB port, the OND-3600 becomes a handy ultrasonic flaw detector with excellent performance.
Furthermore, the fast response time of the color TFT LCD enables display of fast scanning echoes; the touch keypad is reliable and comfortable for use; Its outstanding EMC design significantly increases field anti-interference of the system.

Advantages and features:

Small dimension, lightweight, portable, fully-sealed, highly-reliable design especially suitable for working outdoors

Up to 640MHz sampling frequency, measurement resolution of 0.1mm with minimum range of 3mm

Operating Frequency: 0.5 – 20MHz, surplus sensitivity up to 65dB

Bright, high resolution (640×480) color TFT display realizing the best measurement result in similar products

High performance square wave pulser with tuning option allows the operator to tune the pulse width of the square wave pulser to optimize transducer performance. This maximizes
signal-to-noise and penetration in difficult materials such as highly-attenuated materials or thin work-pieces

LAN port allows remote data transfer and management. It provides management to instrument parameters when the instrument is used as independent square wave pulser

High-speed USB interface allows data storage on USB drive and PC communication. To interface with a mouse to secure accurate analysis on report with A-scan

Internal charger, auto switch between “charge” and “work”. Power supplied by battery or AC mains. The operating time of onboard Li battery is more than 6 hours

Multi-software functions to meet all inspection needs, unique keypad organization and rotary knob operation, user-friendly design for menu, English/Chinese language menu
options, English/Chinese input and edit functions make the inspection much easier

Automatically test the transducer frequency, tune the pulse width of square wave pulse to optimize transducer performance

Thickness alarm function, continuous storage function of waveform and various measurement modes of waveforms

Automatically calibrate instrument specifications and search the peak value

Accessories:

Item	Quantity
main unit	1piece
BNC cable, PC software	each one
Straight probe, Angle probe	each one
Power adapter	1piece

Packaging & Shipping

Packing:pack in suitcase and standard export carton:

Shipping ways: 1. shipping by express (door to door service), e.g. shipping by DHL, FEDEX, UPS or TNT, shipping time need

about 3-7 working days.

2. shipping by China mainland EMS or Hongkong EMS, need about 10-25 working days

3. shipping by air, need about 7 working days.

4. shipping by sea, need about 28 days.

Payment and other trade terms:

Price terms: EXW(factory price), FOB, CNF&CIF or price include door to door service.

Payment terms: T/T, Western Union, Paypal, MoneyGram or others.

Delivery time: Within 3-7days after order confirmed or payment received.

Our Services

We supply one year warranty and a long-time technology support.

We supply 24h online service

Company Information

Our company is a Measurement high-tech enterprise focused on the design, manufacture and marketing of the test equipement, computer control equipment, such as temprature calibrator tester,Hardness Tester,Metal Thickness Gauge,Digital photo colorimeter,Walk-through Metal Detectors, Hand-held Metal Detectors and Ground Searching Metal Detectors,Our company offers products and solutions ranging from measuring ,test and control, quality and metering to power factor correction and test .

Customer Service
"customer first" aways is our main goal , The technical support department solves all doubts and requirements from users by telephone, Internet, etc. We emphasize on product and service quality.

"Honesty and high quality , customers and service first" is our eternal aim.

Our license and patents:

Company and factory pictures:

FAQ

1.How to Place an order?

In order to recommend you the most suitable Ultrasonic Flaw Detector and quote you the accurate price, please provide the information as follows:

1. What forged parts or metal product do you want to detect?

2. How about the product size?

3. What metal is your product made of?

4. Do you have any special requirement for the technical parameters?

5. Which price terms and payment terms could you accept?

6. Please advise which shipping ways you will accept.

7. If you have agent from China, please provide your agent's contact information.

2. How do you ensure the quality of products?

We have a complete quality control system, all of our products were fully 100% inspected by professional QC departments before shipping.

All our products apply to ISO, ASTM, BS, EN, etc. Our products got CE certificate.
