Newest Weld Crack Metal Dectector

Newest Weld Crack Metal Dectector thumbnail-1
Newest Weld Crack Metal Dectector photo-1
US$ 1,000 - 3,100 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
leeb
Model Number:
Leeb510
Contact Supplier Request Quote Chat Now
Changsha Shuangxin Measurement Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
sz
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hunan, China
Brand Name leeb
Model Number Leeb510

Portable Digital Ultrasonic Detector



Function & Feature:

1.With high-precise positioning, it meets requirements of close and distant detection;

2.Small blind near-field allows the detection of small diameter, thin-walled tube;

3.Automatic calibration: with one-4.button automatic calibration, convenient operation, automatically testing the "zero", "K value", "forward" of the pro5.be and "speed of sound" of the materials;

6.Auto-display the location of flaw echo (depth d, level p, distance s, amplitude, equivalent dB,  aperture value);

7.Free switch to three kinds of standards (depth d, level p, distance s);

8.Auto-gain, return envelope, peak memory function improves detection efficiency;

9.value calculation: forging straight probe testing, identifying the highest wave of defects, automatic conversing ap

10.erture value and calculating the large flat;

11.100 independent testing channels (expandable), you can freely enter and store any industrial testing standard, do12. field detection without test block;

13. Freely store and playback 500 A-scan wave forms and data;

14.DAC and AVG are automatically formed, without restriction of sub-15.sampling points, and can be corrected and compensated.

16. 13 built-in testing standards can be used;

17.You can freely enter any industrial standards;

18.The width and intensity of launch pulse are adjustable;

19.It can connect to the computer, realizing data management, and exporting inspection reports of Excel format with20.A4 paper ;

21.With the durable shell,oil-proof, water-proof and dust-proof;

22.26 million colors ultra-23.bright display, adjustable brightness, suitable for both intense and low light working environment;

24.Battery with a good performance of safety and environment-friendly, can work for 10 hours.

25.Time records: track and store records of testing date, time;

26. With power outage protection, stored data will not be lost;

27.Testing parameters can be automatically tested or preset;

28. With digital suppression, no effects for the gain and linearity;

29. Gain Compensation: Correcting dB attenuation caused by surface roughness, surface curvature, distant-30.testing of thick piece and other factors;

31. Two input methods: Angle and K values

32.Echo frequency analysis

33. Power indicator

34. Strobe Audible and visual alarm

35.DAC Audible and visual alarm

36. Screen lock and unlock

37. Clock display



Product Description:

Technical Specification

Model

leeb520

leeb521

leeb522

Display

Single color



Multi-color





Multi-color



Scanning Range(mm)

2.5-6000mm

2.5-10000mm

Velocity Range

100~18000(m/s)

100~20000(m/s)

Vertical linearity error

≤4%

Dynamic Range

≥32dB

≥34dB

Horizontal linearity error

≤0.2%

Testing sensitivity

≥58dB

≥62dB

≥65dB

Storage channel

50

100

100

Storage

200

300

300

TCG curve

×

×

√

B Scan

×

×

√

PC

Optional Accessories

√

√

Video

×

√

√

Gain Range(dB)

0~110

Overall dimension

240×160×40mm

Weight

1.2kg

Standard Delivery

Main Unit,Straight probe,Angle probe,Power adapter,BNC cables,PC software

Optional Accessories

BNC cables,PC software



Application Fields

Widely used in boilers, pressure vessels, aerospace, power, petroleum, chemical, marine, military, petroleum pipeline, ship-manufacturing, automobile, machinery manufacturing, metallurgy, metal processing, steel structure, railway transportation, nuclear power, and relevant departments in colleges and universities.










Packaging & Shipping



Packaging Detail: Packed in suitcase and carton for outside

Delivery Time: Within 3-7 days after payment received

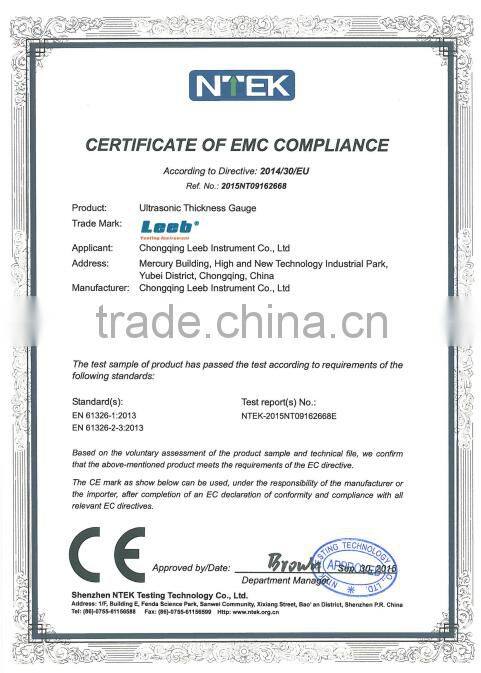

 Certificate:

Our Services

  After-sell service: One year warranty
