Newest Weld crack metal testing instrument/detector
- 1000 Set / Sets per Month
- sz
- T/T Credit Card
- Sand Water Filter/Water treatment plants
- Automatic Doypack Seal Machine (insert and sealing machine)
- Portable gas analyzer for detecting and measuring gas concentration K850 for power station
- Liquid level transmitter
- IPX3/IPX4 Hand-held Water Spray Nozzle Test Device IEC 60529
- IPX5,IPX6 Jet Nozzle of IEC 60529, Brass material
Product Details
Place of Origin: | Hunan, China | Brand Name: | OND | Model Number: | 5600 |
Product Description
Portable Digital Ultrasonic Flaw Detector
Our OND5600 type is Bright, high resolution (640×480) color TFT display realizing the best measurement result in similar products.
High performance square wave pulser with tuning option allows the operator to tune the pulse width of the square wave pulser to optimize transducer performance. This maximizes signal-to-noise and penetration in difficult materials such as highly-attenuated materials or thin work-pieces.

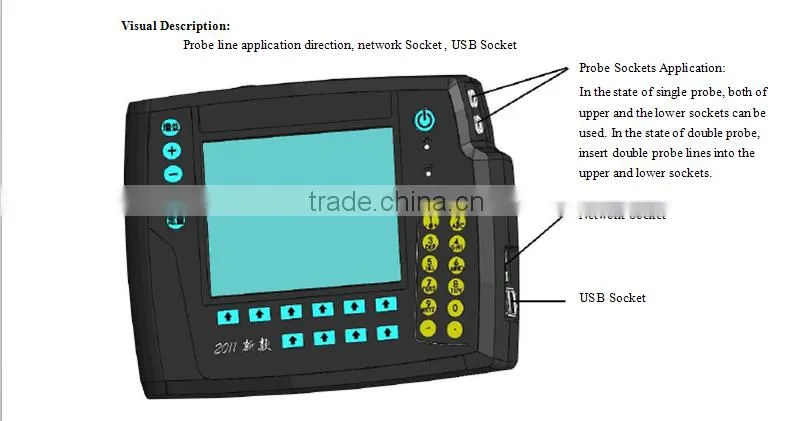

LAN port allows remote data transfer and management. It provides management to instrument parameters when the instrument is used as independent square wave pulser.
High-speed USB interface allows data storage on USB drive and PC communication. To interface with a mouse to secure accurate analysis on report with A-scan.
Internal charger, auto switch between “charge” and “work”. Power supplied by battery or AC mains. The operating time of onboard Li battery is more than 6 hours.
Internal charger, auto switch between “charge” and “work”. Power supplied by battery or AC mains. The operating time of onboard Li battery is more than 6 hours.
Automatically test the transducer frequency, tune the pulse width of square wave pulse to optimize transducer performance.
Thickness alarm function, continuous storage function of waveform and various measurement modes of waveforms.
Automatically calibrate instrument specifications and search the peak value.

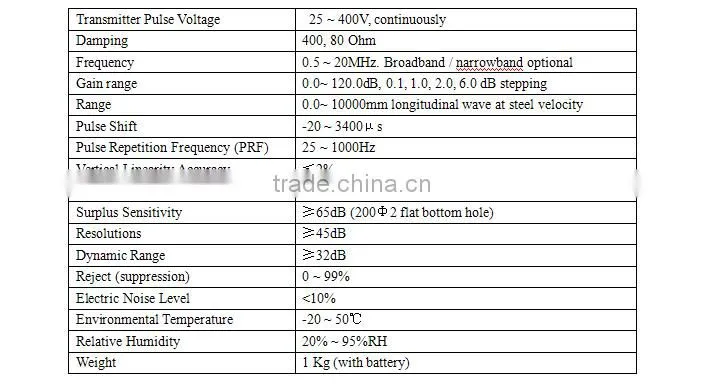

Product Description:
Transmitter Pulse Square Wave Pulser.
Product Usage:
Widely used in steel, boilers, pressure vessels, aerospace, power, petroleum, chemical, marine, military, petroleum pipeline, ship-manufacturing, automobile, machinery manufacturing, metallurgy, metal processing, steel structure, railway transportation, nuclear power, and relevant departments in colleges and universities.
Standard configuration:
main engine | 1set |
Probes | 4(straight probe, angle probe each one) |
Probe line | 4 |
Removable lithium polymer battery | 2 |
Charger | 1 |
Power cable | 1 |
Router | 1 |
Network cable | 1 |
Certificate | 1 |
Instructions | 1 |
Instrument package | 1 |
Instrument case | 1 |
Instrument strap | 1 |
Inspection list | 2 |
Packing List | 1 |
Packaging & Shipping
Packaging Detail: Packed in suitcase and carton for outside
Delivery Time: Within 3-7 days after payment received
After-sell service: One year warranty
