Home > Lights & Lighting > Outdoor Lighting > Street Light > 40-400W Induction Light Induction Induction High Bay Light 300 Watt

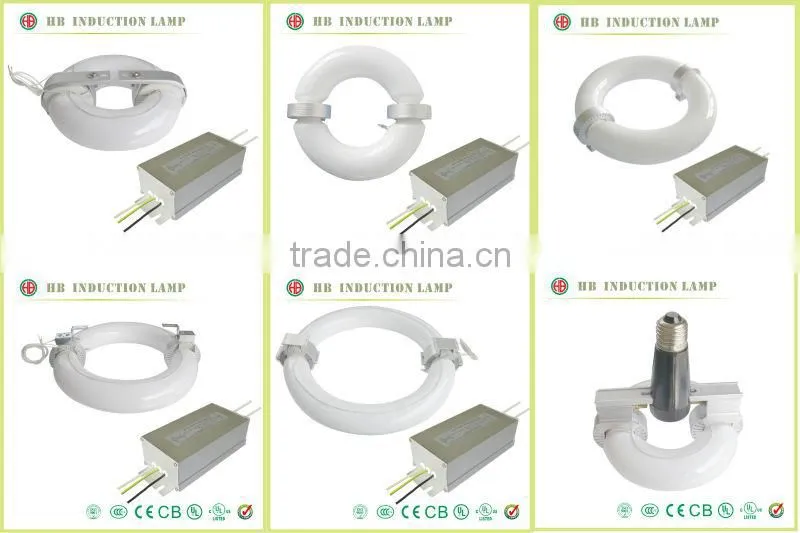

40-400W Induction Light Induction Induction High Bay Light 300 Watt
US$ 49.76 - 57.78
MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Brand Name:
HB
Model Number:
HB60w-RA/RB/RD/RC-347v
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Five Years Warranty and Eco Friendly Low Frequency DC12v Street LampUS$ 41.73 - 49.76MOQ: 10 Sets -
80w Rectangular Environmental Protection and Low Frequency Super Long Lifetime Induction LightUS$ 59.39 - 67.42MOQ: 10 Sets
-
2012 Newest Mushroom Self-ballast 40-75W Energy-saving Inductive LightUS$ 30.85 - 53.8MOQ: 5 Sets
-
HOT Low Frequency Save Energy Lamp 18W PL Induction LampUS$ 33.32 - 40.35MOQ: 10 Sets
-
China Lighting Product Energy Saving 80W Electrodeless Round Induction Circular LampUS$ 51.42 - 63.29MOQ: 5 Sets
Place of Origin
Anhui, China
Brand Name
HB
Model Number
HB60w-RA/RB/RD/RC-347v
Power Supply
AC
Application
Other, garden,square,highway
Lampshade Material
Toughened Glass
Specifications
1.induction high bay light 300 watt2.power:40-400WCCC,CE,CB,UL,ROHS
3.voltage:100-300V,120V,220V,277V,347V
4.5 years war
40-400W induction light induction induction high bay light 300 watt
We have UL, CUL, CCC, CE, CB, RoHS and ISO9001 certificates and more than 20 patents. The UL certificate has included 24-400W.
HB induction lamp warranty is 5 years and maintenance free. And our company mainly products as follow: 18-70W U-type , 40-80W M-type, 40-400W Round-type, 40-400W Square type; 18-400W AC100-300V , DC12V, DC24V electronic ballast and 40-400W DC or AC dimming electronic ballast. They are the most comprehensive and competitive in China at present.
Our company founder Mr Wang Baotong is the owner of the first patent about induction lamps ( electrodeless induction lamps, patent number is ZL03231861) and he is one of the drafters of Chinese Light Industry standard ( Single-ended electrodeless fluorescent lamp with electronic ballast of alternating current ) (QB/T2871-2007).
HB induction lamp warranty is 5 years and maintenance free. And our company mainly products as follow: 18-70W U-type , 40-80W M-type, 40-400W Round-type, 40-400W Square type; 18-400W AC100-300V , DC12V, DC24V electronic ballast and 40-400W DC or AC dimming electronic ballast. They are the most comprehensive and competitive in China at present.
Our company founder Mr Wang Baotong is the owner of the first patent about induction lamps ( electrodeless induction lamps, patent number is ZL03231861) and he is one of the drafters of Chinese Light Industry standard ( Single-ended electrodeless fluorescent lamp with electronic ballast of alternating current ) (QB/T2871-2007).

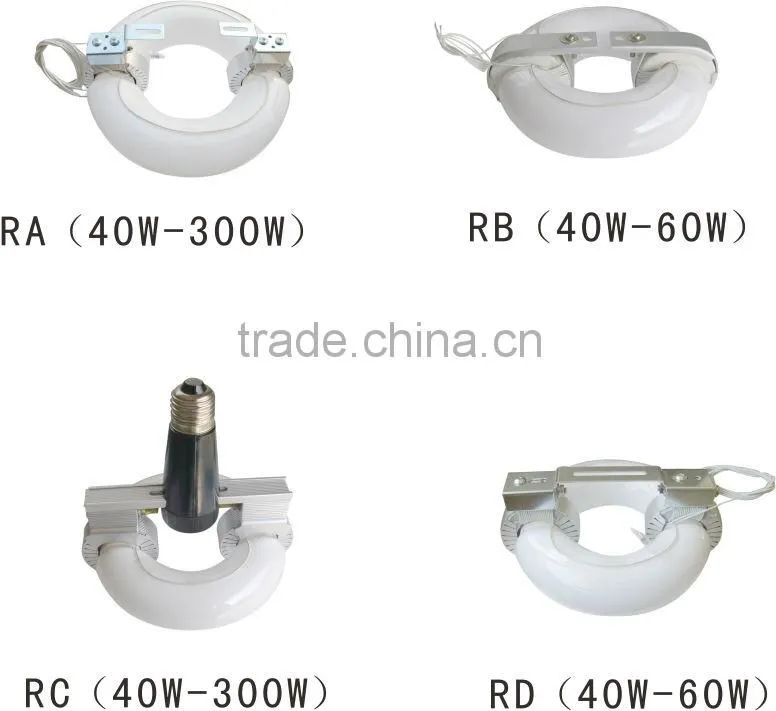

Four kinds of installation ways and size diagram
R-type tube
| Model | lm | Plm | Shape dimension(mm) | Weight (KG) |
RC |
| HB40W-R | 2800 | 3900-4600 | RA/RB/RD:172*154*97 RC:172*154*170 | RA/RB/RD:0.56 RC:0.60 | E27 E40 |
| HB50W-R | 3500 | 4800-5800 | RA/RB/RD:172*154*97 RC:172*154*170 | RA/RB/RD:0.56 RC:0.60 | E27 E40 |
| HB60W-R | 4500 | 5800-6900 | RA/RB/RD:172*154*97 RC:172*154*170 | RA/RB/RD:0.56 RC:0.60 |
E27 E40 |
| HB80W-R | 6400 | 9600-11100 | RA:240*215*105 RC:240*215*240 | RA:0.86 RC:1.00 |
E40 |
| HB100W-R | 8000 | 12000-14000 | RA:240*215*105 RC:240*215*240 | RA:0.86 RC:1.00 |
E40 |
| HB120W-R | 9600 | 15500-18000 | RA:300*274*100 RC:300*270*240 | RA:1.00 RC:1.20 |
E40 |
| HB150W-R | 12000 | 19500-22000 | RA:300*274*100 RC:300*270*240 | RA:1.00 RC:1.20 |
E40 |
| HB200W-R | 16000 | 28000-30000 | RA:345*320*115 RC:345*320*240 | RA:1.10 RC:1.35 |
E40 |
| HB250W-R | 20000 | 35000-37500 | RA:345*320*115 RC:345*320*240 | RA:1.22 RC:1.47 |
E40 |
| HB300W-R | 24000 | 45000-48000 | RA:440*385*115 RC:345*320*240 |
RA:1.70 RC:2.05 |
E40 |
| HB400W-R | 32000 | 60000-64000 | 480*440*100 | 2.14 | / |
Ballast
| Model | Voltage | Current | Power factor | Shape dimensions(mm) |
| HB40W | 100-300V 220V 277V 347V DC12V DC24V |
0.41-0.14A 0.20A 0.16A 0.13A 3.4A 1.7A |
0.98 0.9 0.9 0.9 / / |
L175*W70*H50 L125*W72*H50 L175*W70*H50 |
| HB50W | 100-300V 220V 277V 347V DC12V DC24V |
0.51-0.17A 0.25A 0.2A 0.16A 4.2A 2.1A |
0.98 0.9 0.9 0.9 / / |
L175*W70*H50 L125*W70*H50 L125*W70*H50 L175*W70*H50 |
| HB60W | 100-300V 220V 347V DC12V DC24V |
0.61-0.2A 0.28A 0.19A 5A 2.5A |
0.98 0.98 0.9 / / |
L175*W70*H50 L110*W76*H32(S2) L175*W103*H50 L175*W103*H50 L175*W70*H50 |
| HB80W | 100-300V 347V DC12V DC24V |
0.82-0.27A 0.26A 6.67A 3.4A |
0.98 / |
L175*W70*H50 L175*W103*H50 |
| HB100W | 100-300V 347V 24V |
1-0.34A 0.32A 4.17A |
0.98 0.9 / |
L175*W70*H50 L175*W103*H50 L175*W103*H50 |
| HB120W | 100-300V 347V |
1.2-0.41A 0.38A |
0.98 0.9 |
L175*W103*H50 L175*W103*H50 |
| HB150W | 100-300V 347V |
1.53-0.51A 0.48A |
0.98 0.9 |
L175*W103*H50 L175*W103*H50 |
| HB200W | 100-300V 347V |
2.04-0.68A 0.64A |
0.98 0.9 |
L214*W115*H61 L175*W103*H50 |
| HB250W | 100-300V | 2.6 -0.85A | 0.98 | L214*W115*H61 |
| HB300W | 100-300V 185-300V |
3.1-1A 1.7-1A |
0.98 0.98 |
L238*W115*H61 L214*W115*H61 |
| HB350W | 185-300V | 1.9-1.2A | 0.98 | L238*W115*H61 |
| HB400W | 185-300V | 2.2-1.4A | 0.98 | L238*W115*H61 |
Specifications about HB induction lighting
1.ISO9001,CCC,CE,CB,UL,CUL,RoSH certificate
2.super long service life,100k working hours.
2.super long service life,100k working hours.
3.no glare,flikering and instant start.
4.5 years guarantee,save the replace cost.
5.eco-friendly,and energy-saving,the energy cost lowest than others light.
6.Open circuit protection function: If the lamp tube and ballast disconnect, the ballast won't output high voltage and current. The Ballast cannot be breakdown and damaged.
7.Sweeping frequency start function(repeated start):Except tube leakage itself, our ballast will be restarted repeatedly until light the lamp, when the lamp can not be started in time as the circumstance is terrible, such as instable magnetic field, or rain and snow, low temperature and moisture is heavy.
8.Wide voltage 100-300V:Reasonable wide voltage and heat dissipation design make our lamps' working more stable, performance more reliable on 100-300V. And we can see the wattage has no much change when we changed the voltage from 100V to 300V.
9.Power factor is above 0.98: It reflects our reasonable circuit design with low disturbance. And it also declares, it is pure resistance, with lowest demand on power grid and lowest input current, working is more stable.
10.Earth leakage protection: When our HB ballast and tube are installed in fixture, ballast will not be burned if the wire on the magnetic ring, or tht output wire of ballast or tube connection wires are crushed, as this earth leakage protection function help us improving our ballasts' reliability and stability.
11.Super long lif-time is guaranteed with high quality imported electronic components and reasonable integrated circuit design.
12.Three kinds of dimming ways: External DC 0-10V dimming , Three wires control dimming, Automatic time dimming.
Packing & Delivery-HB INDUCTION LIGHTING
Packing detial:Polyprolene/poly bag/carton/veneer carton
Delivery detial:according the order's quantity,usually 5-12 days
Service support
1. OEM service offered
2. Samples offered for quality and test.
3. 5 years guarantee.
4. 100% QC before the shipping
Wide Usage
Our Factory and workshop
CERTIFICATE
