Specifications
1.200w high bay2. ccc ul cul ce cb rohs
3. 100-300V , 347V
4. 50%~75% cost savings,long lifes,5 years warranty
HB218 200w 250w 300w 350w low frequency induction 200w high bay
1. Wide voltage range design(100-300V): 40-400W all series wide voltage range design (100-300V), which entirely meet the requirements using in 100V, 120V, 220V, 240V, 277V grid.
2. Designed according to electromagnetic compatible circuit standard: EMC meet GB17625, EN55015 standard.
3. Outdoor special protect function: Add the thunder and anti-surge current function; Insulation Paint process is used on electronic ballasts, which can dampproof, dustproof, anti-oxidation to ensure the lifetime of the outdoor products.
4. Protect function under the abnormal condition (open circuit, electric leakage, short circuit): No high voltage, heavy current, high-power appear during the protect process, improve the product stability, which ensure that the ballast won’t be damaged if the tube load is under any abnormal conditions.
5. Smart sweep frequency start:: Ensure every lights can be lighted up while they are used on a large scale. Avoid the circumstance that the light cannot work normally because of bad environment or voltage instability.
6. High quality import electronic device and IC design: Good stability, good warranty of product lifetime. For example, The United States stmicroelectronics Co.,Ltd FET. The U.S. IR chip companies, electrolytic capacitor Nichicon Corporation of Japan, Taiwan thick sound resistance, capacitance Singapore, etc.
7. High power factor: The power factor of AC external induction lamps 23-400W is 0.98, input current is the smallest under equal power.
HB-HB218
Type |
Input Voltage (V) |
Current (A) |
Power Fator |
Efficiency (lm/w) |
CT(k) |
Color Index |
Ballast size (mm) |
tube size (mm) |
200W |
100-300 |
2.04-0.68 |
0.98 |
80 |
5000 |
80 |
195*103*50 |
345*320*115 |
250W |
100-300 |
2.6-0.85 |
0.98 |
80 |
5000 |
80 |
214*112*60 |
345*320*115 |
300W |
100-300 |
3.1-1 |
0.98 |
80 |
5000 |
80 |
214*112*60 |
440*385*115 |
350W |
100-300 |
3.6-1.2 |
0.98 |
80 |
5000 |
80 |
214*112*60 |
440*385*115 |
Work Frequency: 230KHz SCREWTYPE:
LIGHT FIXTURE
Type: HB-HB218
Category: High Bay
Size: 570*570*430mm
Package Size: 595*595*475mm
Net Weight: 7.4kg(200W/250W) 8kg(300W/350W)
Gross Weight: 10kg(200W/250W) 10.6kg(300W/350W)
Lamp source: HB Induction Lamp(round)
Power: 200W-350W
IP grade: IP65
HB-HB218include Tube, Ballast,Fixture and Glass Cover.
Applications:
Industrial Plants, Warehouses, Gymnasiums, Hypermarkets, Supermarkets and
other indoor lighting applications environment.

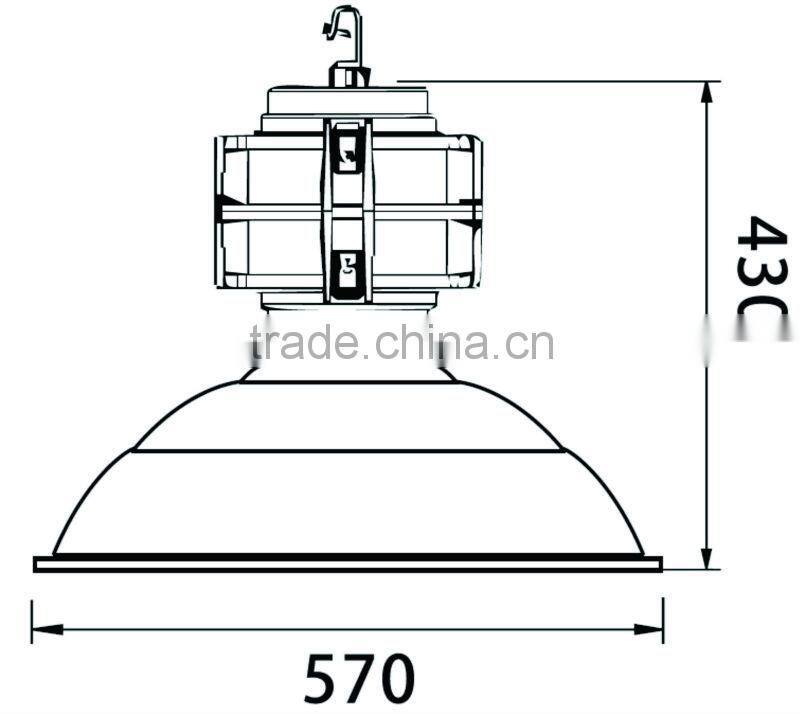

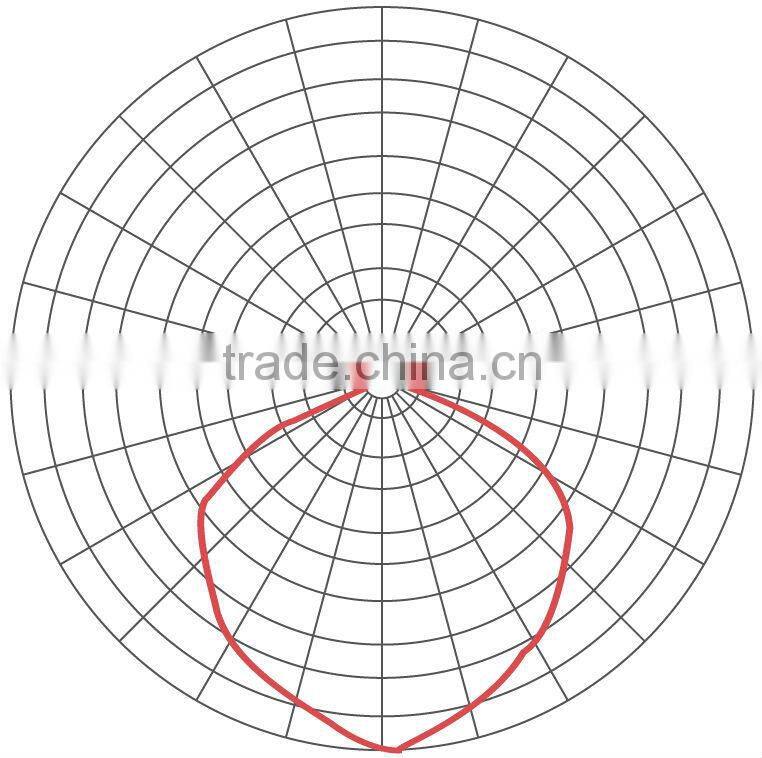

Light Distribution Curve Engineering Figure
Structural features:
1. High-pressure die-cast aluminum electrical box, using light, electrical split design.
2. Professional induction lamp reflector surface structure design, using mirror reflective surface treatment process.
3. Imported mirror aluminum reflector, high reflectivity, ensuring high flux output.
4. Unique lighting design, to ensure that the lamp heat dissipation.
5. High-strength glass, high transmittance, high impact.

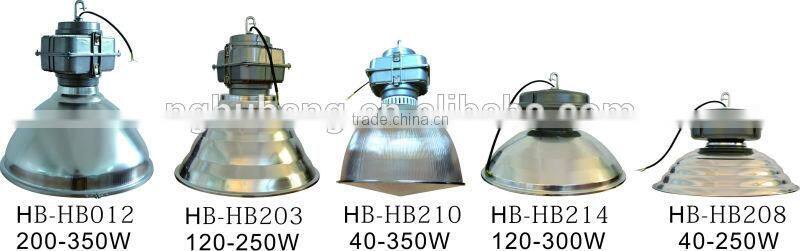

Other Smilar HB Fixtures
