HB-RD506A 60W cob led street light led street light manufactures
Detailed parameter | |||
Model |
HB-RD506A |
size |
497mm*280mm*105mm |
Category |
Road Light |
Package Size |
540mm*340mm*180mm
|
Power |
60W |
Net Weight |
6.1kg |
Input Voltage |
AC90-305V DC127-431V |
Gross weight |
6.7kg |
Light source |
Bridgelux 45mil LEDs (America) |
Material |
Aluminium + tempered glass |

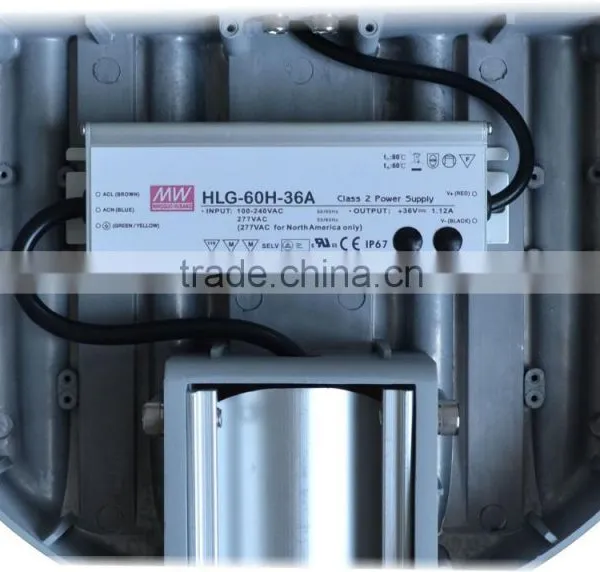

Power drive |
meanwell HLG series |
Available color |
Gray/customized |
Power Fator |
>0.95 |
Light degradation rate |
25000h ≤ 30% |
LED QTY |
1W*60pcs |
Rated life |
50000h |
Efficiency(lm/w) |
>110lm/W |
Working temperature |
-40~+50°C |
Frequency |
50/60HZ |
IP grade |
IP67 |
Color rendering index |
Ra>85 |
Warranty |
5 Years |

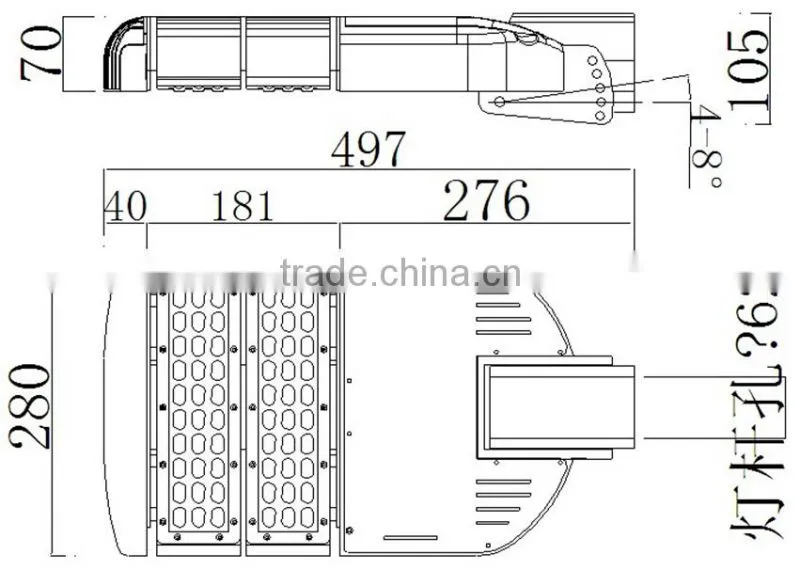

Light Distribution Curve Engineering Figure
1.High Power, high lumen, high quality, high efficiency, high CRI & luminous flux
2. Save 80% more energy compared with traditional lighting fixtures

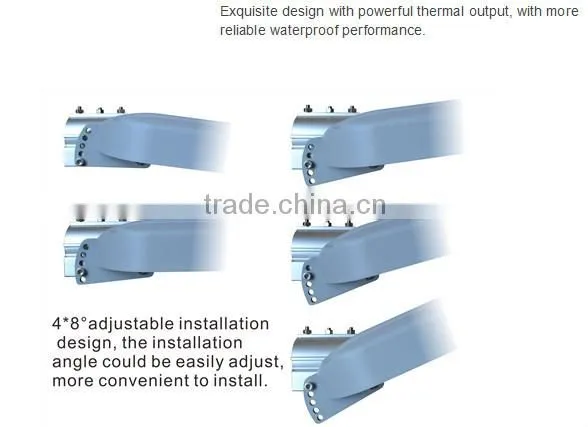

3. Easy to install and use, secure and reliable
4. No UV or RF interference, No mercury or lead
5.Light body is made of good quality aluminum alloy with painting or anodic treatment on surface, exiguity
and unique design, excellent heat dissipation
6. long life span>50000hrs
7. High brightness, low consumption, green for environment
8. PMAM lens, 120°for your choice
9. Built-in LED driver with IC ensure stability of light, it can work efficiently under
10. AC90-305V in different countries and regions.
Detailed parameter | |||||
Model |
HB-RD506A |
HB-RD506B |
HB-RD506C |
HB-RD506D |
HB-RD506E |
Category |
Road Light |
||||
Power |
60W |
90W |
120W |
150W |
180W |
Input Voltage |
AC90-305V DC127-431V |
||||
Light source |
Bridgelux 45mil LEDs (America) |
||||
Power drive |
HLG series |
||||
Size(mm) |
497*280*105 |
581*280*105 |
665*280*105 |
749*280*105 |
833*280*105 |
Package Size(mm) |
540*340*180 |
615*340*180 |
710*340*180 |
795*340*180 |
875*340*180 |
Net Weight |
6.1kg |
7.5kg |
8.5kg |
9.6kg |
11.7kg |
Gross weight |
6.7kg |
8.3kg |
9.4kg |
10.6kg |
12.8kg |
Power Fator |
>0.95 |
||||
LED QTY |
1W*60pcs |
1W*90pcs |
1W*120pcs |
1W*150pcs |
1W*180pcs |
Efficiency(lm/w) |
>110lm/W |
||||
Frequency |
50/60HZ |
||||
Material |
Aluminium + tempered glass |
||||
Available color |
Gray/customized |
||||
Light degradation rate |
25000h ≤ 30% |
||||
Rated life |
50000h |
||||
Working temperature |
-40~+50°C |
||||
IP grade |
IP67 |
||||
Color rendering index |
Ra>85 |
||||
Warranty |
5 Years |
||||
Application |
Highway, courtyard, road, Downtown streets, Parking lots, etc. |
||||
Trade Terms:
1.Payment terms: 40% deposit,balance before delivery or irrevocable L/C at sight.
2.Delivery time: 3-10days after receiving deposit.
3.Price terms: FOB, CFR, CIF all acceptable.
4.Discounts are negotiable according to ordered quantity.
5.MOQ: 1pcs of each model.
Shipping & Duties:
Shipping will be arranged within 3 Days upon payment or deposit, from Monday to
Saturday.
