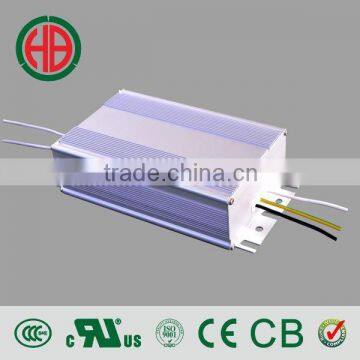

HB 23-400w Ballast for Magnetic Induction Lamp

HB 23-400w Ballast for Magnetic Induction Lamp thumbnail-1
HB 23-400w Ballast for Magnetic Induction Lamp photo-1
US$ 16 - 100 MOQ: 2 Sets
Key Specifications
Get Latest Price
Type:
Low Frequency Induction Lamp
Voltage:
Other, 100-300V
Place of Origin:
Anhui, China
Contact Supplier Request Quote Chat Now
Ningguo Hubang Electronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Low Frequency Induction Lamp
Voltage Other, 100-300V
Place of Origin Anhui, China
Brand Name HB
Model Number HB-B
Power Other, 23-400w
Working Frequency Other, 210KHZ
Certification CE, UL, Other, CE, UL, ISO9001,CCC CB CUL ROHS
Shape Rectangular

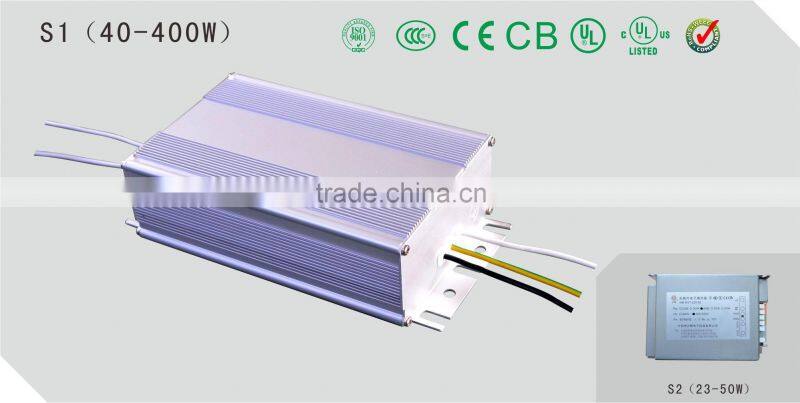

  HB 23-400w ballast for magnetic induction lamp

1. Wide voltage range design(100-300V): 40-400W all series wide voltage range design (100-300V), which entirely meet the requirements using in 100V, 120V, 220V, 240V, 277V grid.

2. Designed according to electromagnetic compatible circuit standard: EMC meet GB17625, EN55015 standard.

3. Outdoor special protect function: Add the thunder and anti-surge current function; Insulation Paint process is used on electronic ballasts, which can dampproof, dustproof, anti-oxidation to ensure the lifetime of the outdoor products.

4. Protect function under the abnormal condition (open circuit, electric leakage, short circuit): No high voltage, heavy current, high-power appear during the protect process, improve the product stability, which ensure that the ballast won’t be damaged if the tube load is under any abnormal conditions.

5. Smart sweep frequency start:: Ensure every lights can be lighted up while they are used on a large scale. Avoid the circumstance that the light cannot work normally because of bad environment or voltage instability.

6. High quality import electronic device and IC design: Good stability, good warranty of product lifetime. For example, The United States stmicroelectronics Co.,Ltd FET. The U.S. IR chip companies, electrolytic capacitor Nichicon Corporation of Japan, Taiwan thick sound resistance, capacitance Singapore, etc.

7. High power factor: The power factor of AC external induction lamps 23-400W is 0.98, input current is the smallest under equal power.



 HB 23-400w ballast for magnetic induction lamp



  Technical Parameter



NO.

Model

Voltage

Current

Powet factor

Shape dimensions

(mm)

1

HB23W

100-300V

0.23-0.08A

0.98

L125*W72*H50

L110*W76*H32(S2)

2

DC12V

1.9A

/

L175*W72*H50

3

DC24V

0.96A

/

4

HB40W

100-300V

0.41-0.14A

0.98

L125*W72*H50

L110*W76*H32(S2)

5

DC12V

3.4A

/

L175*W72*H50

6

DC24V

1.7A

/

7

HB50W

100-300V

0.51-0.17A

0.98

L125*W72*H50

L110*W76*H32(S2)

8

DC12V

4.2A

/

L175*W72*H50

9

DC24V

2.1A

/

10

HB60W

100-300V

0.61-0.2A

0.98

L175*W72*H50

11

347V

0.19A

0.9

L195*W103*H50

12

DC12V

5A

/

L175*W103*H50

13

DC24V

2.5A

/

14

HB80W

100-300V

0.82-0.27A

0.98

L175*W72*H50

15

347V

0.26A

0.9

L195*W103*H50

16

DC12V

6.67A

/

L175*W103*H50

17

DC24V

3.4A

/

18

HB100W

100-300V

1-0.34A

0.98

L175*W72*H50

19

347V

0.32A

0.9

L195*W103*H50

20

DC24V

4.17A

/

L175*W103*H50

21

HB120W

100-300V

1.2-0.41A

0.98

L195*W103*H50

22

347V

0.38A

0.9

23

HB150W

100-300V

1.53-0.51A

0.98

L195*W103*H50

24

347V

0.48A

0.9

25

HB200W

100-300V

2.04-0.68A

0.98

L195*W103*H50

26

347V

0.64A

0.9

27

HB250W

100-300V

2.6-0.85A

0.98

L214*W112*H60

28

347V

0.8A

0.9

L195*W103*H50

29

HB300W

100-300V

3.1-1A

0.98

L214*W112*H60

30

347V

1A

0.9

L195*W103*H50

31

HB350W

100-300V

3.6-1.2A

0.98

L214*W112*H60

32

HB400W

185-300V

2.2-1.4A

0.98

L238*W115*H61

33

100-300V

4.1-1.4A

0.98

L270*W112*H60

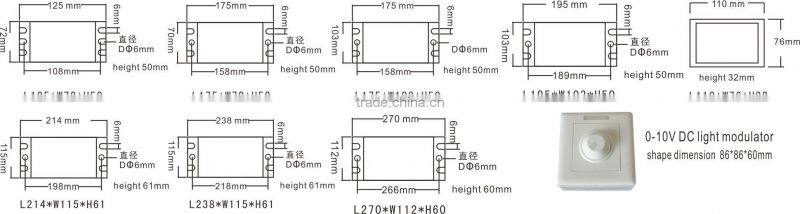

Shape dimensions(mm)

L110*W76*H32

L125*W72*H50

L175*W72*H50

L175*W103*H50

L195*W103*H50

L214*W112*H60

L270*W112*H60

Weight

(KG)

0.22

0.4

0.44

0.58

0.75

1.1

1.56





















 HB 23-400w ballast for magnetic induction lamp



   HB 23-400w ballast for magnetic induction lamp                               HB 23-400w ballast for magnetic induction lamp







   HB 23-400w ballast for magnetic induction lamp                              HB 23-400w ballast for magnetic induction lamp




Our Factory and workshop



 HB 23-400w ballast for magnetic induction lamp







CERTIFICATE







HB 23-400w ballast for magnetic induction lamp
