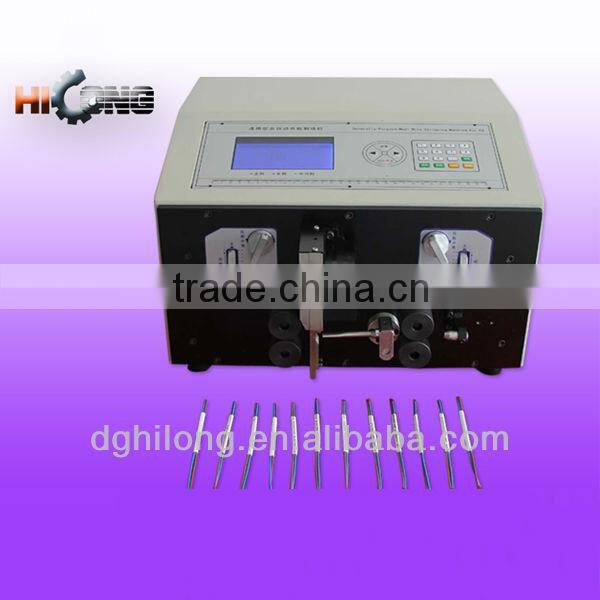

Cable Peeling Machine HL-322

Specifications

cable peeling machine :

 1.This is fullyautomated machine that performs high speed computerized wire cutting and

    stripping on both ends

 2. LCD display of full pictures, full screen operations display, clear and user friendly.

 3.Designed with memory function for faster and more convenient production configuration.

Feature:

This machine can stripe the outside jacket (sheath) and inner wires at one time.

Available Core Cross-Section Range: 0.1 - 6.0mm²

Max. Conduit Diameter: Φ10.0mm

Cutting Length: 1 ~ 9999mm

Stripping Length: Head 0~40mm, End 0~50mm

Max. Middle Stripping Section: 13

Motor Step Angle Accuracy: 3-phase 6 shot 1.5/3

Cutting Tolerance: ±(0.002×L)  (L=Cutting Length)

Speed: 3000~8000pcs/hour

Display Way: English LCD  dispaly

Drive Mode: 4 Drives

Blade Material: Hard tungsten steel

Appropriate Wire: PVC, Teflon, glass wire

Power Supply: 220V/50Hz   110V/60Hz

Power Rating: 220W

Good quality also good price!! welcome contact with us!
