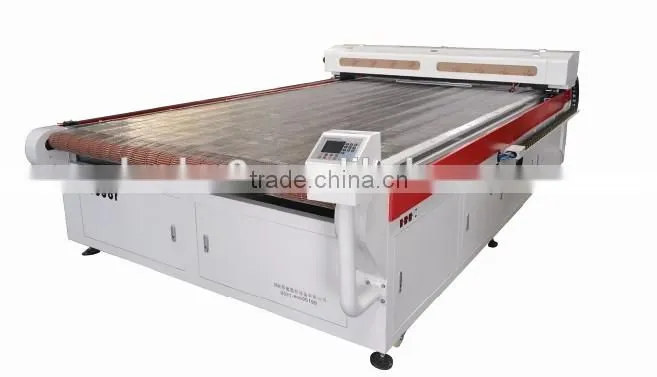

Home Textile Laser Cutting Machine
US$ 3,000 - 5,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Laser Type:
CO2
Applicable Material:
Acrylic, Crytal, Glass, Leather, Paper, plastic, Plexiglax, Plywood, Rubber, Wood
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Acrylicsheet Metal Laser Cutting MachineUS$ 3,000 - 10,000MOQ: 1 Set -
Small Sheet Metal Laser Cutter MachineryUS$ 10,000 - 100,000MOQ: 1 Set
-
Metal Accessories Parts Cnc Laser Cutting MachineryUS$ 10,000 - 100,000MOQ: 1 Set
-
Advertising Board Fiber Laser Cutting MachineUS$ 10,000 - 100,000MOQ: 1 Set
-
Laser Cutting Machine for Gold Silver Copper MetalsUS$ 10,000 - 100,000MOQ: 1 Set
Condition
New
Laser Type
CO2
Applicable Material
Acrylic, Crytal, Glass, Leather, Paper, plastic, Plexiglax, Plywood, Rubber, Wood
Cutting Thickness
0-30000mm/min
Cutting Area
1300*2500mm/1600*3000mm/1800*3000mm/2000*3000mm/2000*6000mm
Cutting Speed
0-30000mm/min
CNC or Not
Yes
Cooling Mode
Water Cooling
Control Software
RD
Graphic Format Supported
AI, PLT, BMP, DST, DWG, LAS
Place of Origin
Shandong, China
Brand Name
Bodor
Model Number
BCL-1325B
Certification
CE, SGS, Other, CE, SGS, FDA
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1:High sfficiency&long life laser tube2:Imported Focus Lens and Mirrors
3:Life time of laser tube reach to 10000 hours.
Main Features
1.The automatic feeding system is added to save time and cost, and to improve work efficiency.
2.Crawler correction device can prevent crawler belt dislocation when working.
3.Cloth auto-collecting device is very convenient for users to collect cloth.
4.Multi-layer feeding device is already for users to process multi-layer cloth at the same time.
5.To meet the demand of cutting in large width, Bodor laser cutting machine bed adopts the machine tool-level chassis to ensure the stability and accuracy in high speed working.
6. The moving system adopts Taiwan Hiwin linear guide and precision gear, matched up with the advanced DSP-controlled 3-phase stepper motor to ensure the working accuracy.
6.News-style high-efficiency laser tube is adopted. Laser beam is more stable than the traditional type. Usage age is more than 10000 hours.
2.Crawler correction device can prevent crawler belt dislocation when working.
3.Cloth auto-collecting device is very convenient for users to collect cloth.
4.Multi-layer feeding device is already for users to process multi-layer cloth at the same time.
5.To meet the demand of cutting in large width, Bodor laser cutting machine bed adopts the machine tool-level chassis to ensure the stability and accuracy in high speed working.
6. The moving system adopts Taiwan Hiwin linear guide and precision gear, matched up with the advanced DSP-controlled 3-phase stepper motor to ensure the working accuracy.
6.News-style high-efficiency laser tube is adopted. Laser beam is more stable than the traditional type. Usage age is more than 10000 hours.
Technical Parameter
| Model | BCL1625BA | BCL1830BA | Option |
| Working Area | 1600*2500mm | 1800*3000mm | According to Demands |
| Laser Power | 60w/80w / 100w / 130w / 150w | ||
| Laser Type | CO2 Sealed Laser Tube,10.6μm | ||
| Cooling Type | Water Cooling | ||
| Cutting Speed | 0—30000mm/min | ||
| Laser Output Control | 0—100% Software Setting | ||
| Smallest Character Engraving | 2.0*2.0mm1.0*1.0mm / English 1.0mm*1.0mm | ||
| Highest Scanning Precision | 4000DPI | ||
| Locating Precision | ≤+0.01mm | ||
| Controlling Software | DSP Control System | ||
| Graphic Format Supported | DST PLT BMP DXF DWG AI LAS,etc | ||
| Compatible Software | TAJIMA,CORELDRAW,PHOTOSHOP,AUTOCAD,All type of AUTOCAD Sofeware in Cloth | ||
| Color Separation | Yes | ||
| Drive System | High-precision 3-phase Stepper Motor | ||
| Auxiliary Equipments | Exhaust Fan and Air Exhaust Pipe | ||
| Power Supply | AC110V/220V+10%,50HZ/60HZ | ||
Applications:
Garments sampling, large format tailoring ,leather industry ,shoemaking ,decoration,furniture ,advertisement, packing and printing ,molding and artcrfts industries,etc.
Applicable Materials:
non-metal materials: cloth, leather, paper, wood, bamboo, plexiglass, glass, thin film ,canvas etc.
Company Information:
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
2008
Factory Size
5,000-10,000 square meters
Total Employees
201 - 300 People
