Specifications
application of advanced fiber module,high quality output beam
Small size and fast processing speed,
low energy consumption
2. High pulse repeating rate and stable power bring high speed laser marking. Unit pulse power surge is lower than 1%. Easy control laser dot size, thickness and shape.
3. High speed 2-3 times over than traditional diode pumped marking machine.
4. Air-cooling smart machine size!
5. Long lifetime. Ultra-low power consumption of 0.5 kw. Efficiency conversion reach to over 30%(Not suitable for stainless steel color marking ).
6.Suitable for various fiber laser generators.
| Model | BML10FTS | BML20FTS | BML10FT | BML20FT |
| Laser Power | 10W | 20W | 10W | 20W |
| Laser Wave length | 1064nm | |||
| Q-frequency | 20KHz~30KHz | |||
| Divergence | 0.3mard | |||
| Marking Range | 100*100mm | |||
| Minimum Line Width | 0.02mm | |||
| Minimum Character | 0.15mm | |||
| Marking Depth | 0~0.5mm | |||
| Engraving Line Speed | ≤7000mm/s | |||
| Repeatability Accuracy | ±0.001mm | |||
| Beam Quality | M2:1.2~1.8 | |||
| Marking Format | Graphics,Text,Bar Codes,Two-dimensional Code,Automatically Marking theDate,Batch Number,Serial Number,Frequency,etc. | |||
| Graphic Format Supported | bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc. | |||
| Working Voltage | 220V±10%/50Hz/4A | |||
| Unit Power | <0.5kw | |||
| Use of the Environment | Clean and Dust Free or Dust less | |||
| Working Condition:Humidity | 5%-75%,Free of Condensed Water | |||
| Laser Module Life | >100000hours | |||

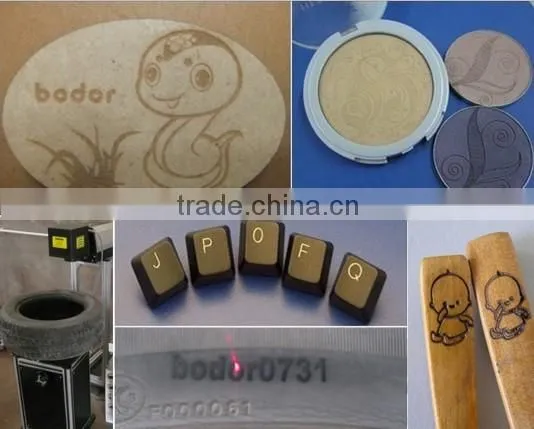

Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.
Applicable Materials:
Metals (including rare metals), engineering plastics, electroplating materials, coating materials,coating materials, plastics, rubber, epoxy resin, ceramic, plastic, ABS, PVC, PES, steel, titanium, copper and other materials.
Warranty and after sale service:
Warranty the whole machine for 2 YEARS and laser tube for 4 months; offer lifelong repair; laser tube’s average life is 4000-10000 working hours(depends on the laser power); Offer 24 - hour technical support
About Bodor
Jinan Bodor CNC Machine Co.,Ltd has been always devoting to the research and manufacturing of the CNC products such as Cutting, Engraving and Marking Machines and so on.Today, Bodor CNC has developed to a large worldwide Manufacturing Group, and becomes an excellent leader of the world in this field.
Bodor CNC was founded in 2002, and changed its name to "bodor" formly in 2008.We can supply Laser Cutting, Engraving and Marking Machines,Dot Peen Marking Machines, and many other industrial automation equipments.Meanwhile,we can also supply industrial automation sulutions according to your special needs.
Bodor CNC has earned ourselves a good reputation and ten thousands of faithful customers with our advanced technology,standardized producing management,stable products,and the best services.Through years of international marketing experience,we have established business relationships with customers from North America,West Europe,South Asia,and Middle East,etc.Welcome to join the world of Bodor CNC,you can experience the world-class products and services together with our customers all over the world.
