High Power Fiber Laser Metal Sheet Cutting Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Laser Type:
Fiber Laser
Applicable Material:
Metal
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao Tianjin Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Bodor Steel Laser Cutting MachineUS$ 70,000 - 100,000MOQ: 1 Set -
Height-adjustable Laser Head Fiber Laser Metal Cutting MachineNegotiableMOQ: 1 Set
-
Fiber Laser Metal Cutting Machine Price Cut 10mm Stainless Steel PlateNegotiableMOQ: 1 Set
-
Mini Metal Fiber Laser Cutting Machine for Cuff Links, Bracelets, Necklaces, Name RingsUS$ 30,000 - 40,000MOQ: 1 Set
-
Hot Sale! Height-adjustable Laser Head Fiber Laser Metal CutterNegotiableMOQ: 1 Set
Condition
New
Laser Type
Fiber Laser
Applicable Material
Metal
Cutting Thickness
According the material
Cutting Area
1300x2500mm, 1500x3000mm, 1500x4000mm, 1500x6000mm
CNC or Not
Yes
Cooling Mode
Water Cooling
Graphic Format Supported
AI, PLT, DXF, BMP, DST, DWG, LAS
Place of Origin
China
Brand Name
Bodor
Model Number
BCL-YB series
Certification
CE, SGS
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1operate easily,high accuracy2high perforamce ratio
3smoothful cutting seam
4CE,FDA,SGS
Product Description
Main Features

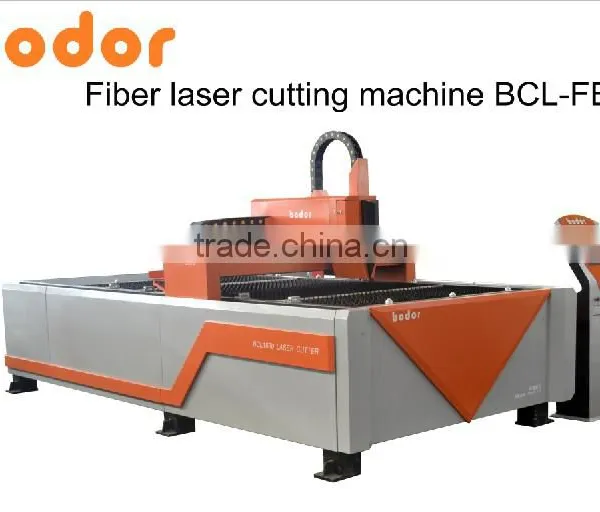

BCL-FB Fiber sheet metal laser cutting machine adopts most sophisticated fiber laser, combining self-design Gantry CNC machine and high strength welding body. After high temperature annealing and precision machining by large CNC milling machine, it has good rigidity and stability with imported high precision and fast speed, linear guide drive. Aluminum beam, advanced heat treatment process, high strength, light weight, good rigidity. It is mainly for cutting sheet metal below 6mm in high speed and high precision. Fiber laser has a series of advantages, such as high beam quality, high brightness, high conversion rates, maintenance-free, stable and reliable operation of low cost and small size, etc. Air-assisted cutting is the most advanced level of laser cutting, which is particularly suitable for stainless steel, alloy steel, copper, titanium and other metal materials' precision cutting. It is widely used in metal products, hardware, precision machinery, auto parts, glasses, jewelry, nameplate, electronics, toys, advertising and other industries.
Advantage of Fiber laser cutting machine:
1. Excellent path quality: Smaller laser dot and high work efficiency, high quality.
2. High cutting speed: cutting speed is 2-3 times than same power CO2 laser cutting machine.
3. Stable running: adopt top world import fiber lasers, stable performance, key parts can reach 100,000 hours;
4. High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.
5. Low cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.
6. Low maintenance: fiber line transmission no need reflect lens, save maintenance cost;
7 Easy operations: fiber line transmission, no adjustment of optical path.
Advantage of Fiber laser cutting machine:
1. Excellent path quality: Smaller laser dot and high work efficiency, high quality.
2. High cutting speed: cutting speed is 2-3 times than same power CO2 laser cutting machine.
3. Stable running: adopt top world import fiber lasers, stable performance, key parts can reach 100,000 hours;
4. High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.
5. Low cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.
6. Low maintenance: fiber line transmission no need reflect lens, save maintenance cost;
7 Easy operations: fiber line transmission, no adjustment of optical path.
Technical Parameter
| Model | BCL 1530FB | BCL 1540FB | Option |
| Max cutting range | 1500*3000mm | 1500*4000mm | According to Demands |
| Machine Size(Length*Width*Height) | 2.4*4.7*1.9m | 2.4*5.7*1.9m | |
| Accessory Parts(Length*Width*Height) | Chitler 1*1*1.2m Control Box 1*0.8*1.8m Fiber Module 0.5*0.6*0.14m | ||
| Laser Medium | SingleCoreJunctionSemiconductorModule | ||
| Max Cutting Speed | 25m/min | ||
| Cooling Way | Water Cooling | ||
| Laser Power | 500W(Option 200W/300W/400W/1000W/2000W) | ||
| Min line width | 0.1nm | ||
| Cutting Depth | 0.2-6mm | ||
| Driving and transmission Way | Imported Servo Motor and Linear Guide Rail | ||
| Power Requirements | 380V/50Hz/16A | ||
| Continuous Working Time | 24Hours | ||
| Related Weight |
Machine Body 2732kg Trolley 116kg Computer Cabinet 56kg Servo Cabinet 75kg Transformer 77kg Chiller 93kg Fiber Module 50kg |
||
Applications
Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.
Mainly used for cutting Mild steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminium zinc plate, copper and many kinds of metal materials and so on.
Mainly used for cutting Mild steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminium zinc plate, copper and many kinds of metal materials and so on.

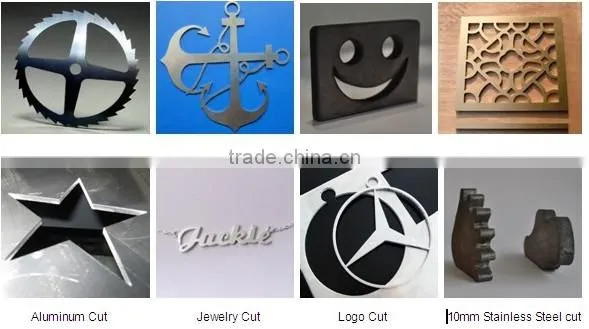

Samples
Packaging & Shipping
Laser machine has high requirement for precision, therefore, before delivery after adjustment, our machine will be protected by many measurement to ensure the machine's safety and completion.
Company Information
Jinan Bodor CNC Machine Co., Ltd. has been always devoted to the research and manufacture of CNC products such as laser cutting machines,laser engraving machines and laser marking machines. Today, Bodor CNC has developed into a large Manufacturing Group, and becomes an excellent leader in this field.
