Home > Manufacturing & Processing Machinery > Laser Equipment > Laser Cutting Machine > Laser Cutting Engraving Machine for Fabric
Laser Cutting Engraving Machine for Fabric
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Laser Type:
CO2
Applicable Material:
Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Payment & Shipping
Payment Methods:
Port of Shipment:
Qindao Tianjin Shanghai Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Autofeed CO2 Laser Cutting Machine PriceNegotiableMOQ: 1 Set -
Laser Cutting Bed for Automobile Internal DecorationNegotiableMOQ: 1 Set
-
Multi-head (Movable) Auto Feeding Laser Cutting Machine BCL-1814XH2(3)H(M)ANegotiableMOQ: 1 Set
-
Hot Sale! China Jinan Bodor Multi-head (Movable) Auto Feeding Laser Cutting Machine BCL-1814XH2(3)H(M)ANegotiableMOQ: 1 Set
-
Hot Sale! Multi-head (Movable) Auto Feeding Laser Cutting Machine BCL-1814XH2(3)H(M)A Made in ChinaNegotiableMOQ: 1 Set
Condition
New
Laser Type
CO2
Applicable Material
Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Cutting Area
1300x2500mm, 1600x3000mm, 1800x3000mm, 2000x3000mm,2000x6000mm
Cutting Speed
0-30000mm/min
CNC or Not
Yes
Cooling Mode
Water Cooling
Control Software
DSP control system with laserwork V8
Graphic Format Supported
AI, PLT, DXF, BMP, DST, DWG, LAS
Place of Origin
Shandong, China
Brand Name
Bodor
Certification
CE, SGS
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1 Imported focus lens and reflect mirrors2 High efficiency,long life laser tube
3 Wolly open type blade working table
Product Description
Main Features
1. Working table: Open blade with special treated material. Never fray and easy operation, suitable for all kinds of hard materials.
2. Steady chassis: Stability and precision during high speed work.

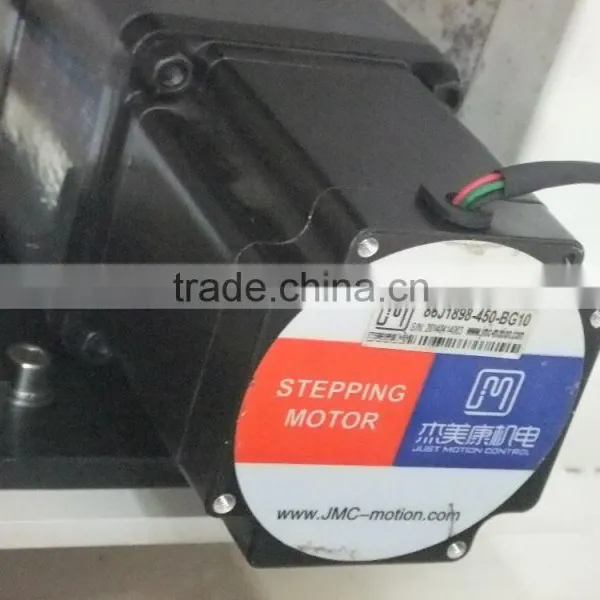

3. Moving system adopts Taiwan HIWIN linear guide and precision gear, matched up with advanced DSP-controlled 3-phase
2. Steady chassis: Stability and precision during high speed work.
3. Moving system adopts Taiwan HIWIN linear guide and precision gear, matched up with advanced DSP-controlled 3-phase
stepper motor to ensure the working accuracy.
4. High efficiency tube with stable laser path, life time around 10000 hours.
4. High efficiency tube with stable laser path, life time around 10000 hours.
Technical Parameters
| Model | BCL1325B | BCL1630B | BCL 1830B | BCL 2030B | BCL 2060B | |
| Working Area | 1300*2500mm | 1600*3000mm | 1800*3000mm | 2000*3000mm | 2000*6000mm | |
| Laser Power | 60w/80w/100w/130w/150w | |||||
| Laser Type | Sealed Co2 Laser Tube,10.6μm | |||||
| Cooling Type | Water Cooling | |||||
| Cutting Speed | 0—30000mm/min | |||||
| Laser Output Control | 0—100% Software Setting | |||||
| Smallest Character Engraving | 2.0*2.0mm1.0*1.0mm / English 1.0mm*1.0mm | |||||
| Highest Scanning Precision | 4000DPI | |||||
| Locating Precision | ≤+0.01mm | |||||

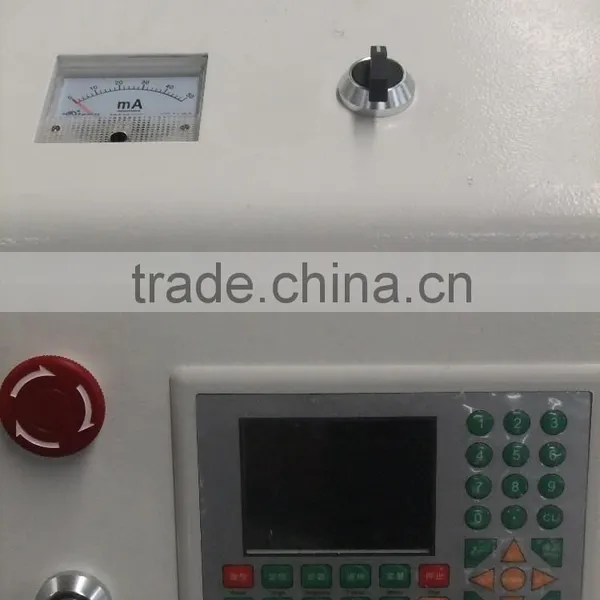

| Controlling Software | DSP Control System | |||||
| Graphic Format Supported | DST PLT BMP DXF DWG AI LAS,etc | |||||
| Compatible Software | TAJIMA,CORELDRAW,PHOTOSHOP,AUTOCAD,All Type of AUTOCAD Sofeware in Cloth | |||||
| Color Separation | Yes | |||||
| Drive System | High-precision 3-phase Stepper Motor | |||||
| Auxiliary Equipments | Exhaust Fan and Air Exhaust Pipe | |||||
| Power Supply | AC110V/220V+10%,50HZ/60HZ | |||||
| Option |
Up&Down Table(Length:500mm),Honeycomb Worktable,Rotary Device Red Dot Position System,Auto-focus Device |
|||||
Applicable industries
Mould industry (construction mould, aviation and navigation mould, wooden mould), advertising, decoration, arts and crafts,
electronics, electric appliances, etc.
Applicable Materials
Auto supplies manufacturing industry,materials such as acryl, wood planks(light planks,candlenut wood),bamboo ware,
double color board, paper, leather, shell, coconut shell, ox horn, resin animal grease,ABS board, lamp shade, etc.

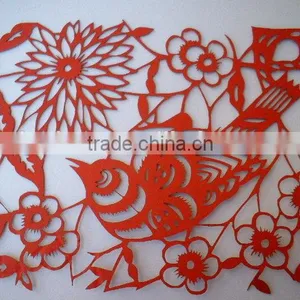

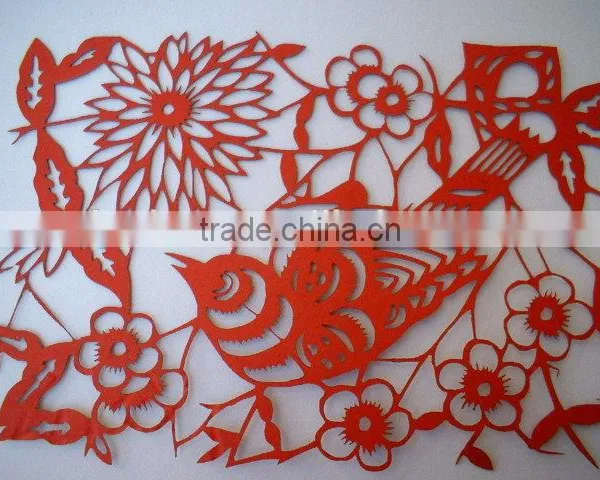

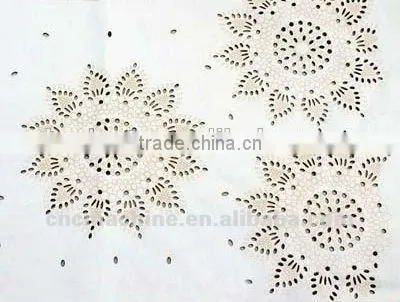

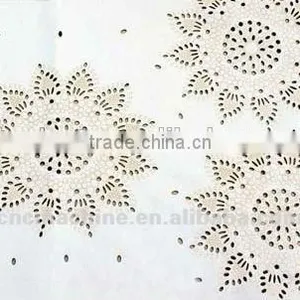

Samples

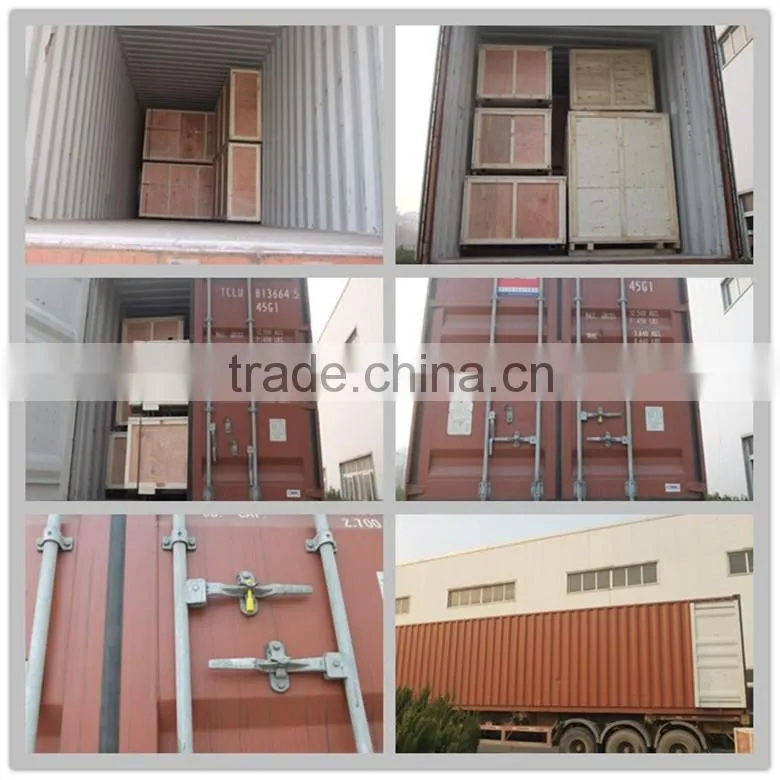

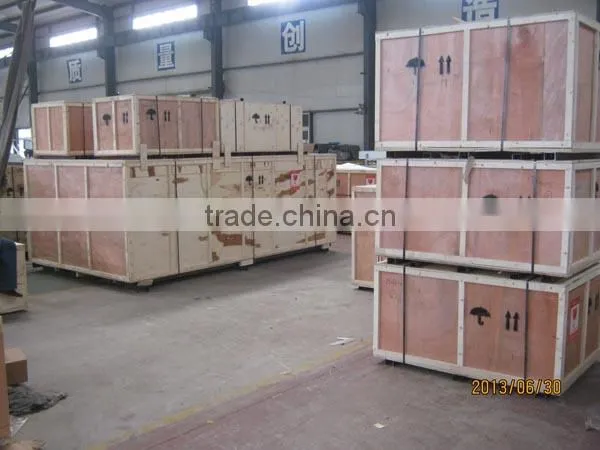

Packaging & Shipping
Laser machine has high requirement for precision, therefore, before delivery after adjustment, our machine will be protected by many measurement to ensure the machine's safety and completion.
Company Information
Jinan Bodor CNC Machine Co., Ltd. has been always devoted to the research and manufacture of CNC products such as laser cutting machines,laser engraving machines and laser marking machines. Today, Bodor CNC has developed into a large Manufacturing Group, and becomes an excellent leader in this field.
FAQ
Question and Reply

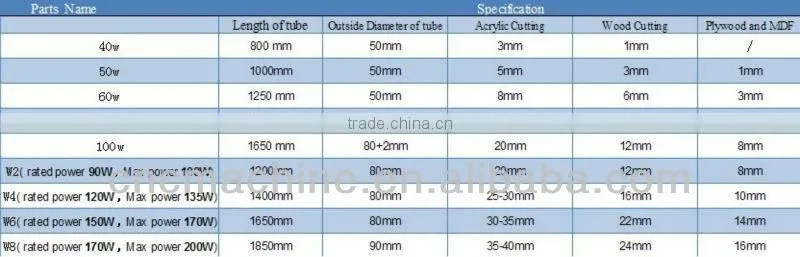

@ How can we choose the laser power we need?
@What are exactly included in the package?
@What software? It's coming with machine?
LaserWorkV5.It should come with machines in CD.
@How we start machine and make operation?
In CD we install machine working operation video and handbook.
Video together with words explain is first one, you can catch how to start easily.
Then please start to read handbook.
Please take care on “Notice”.
Take good care of your machine, that will make it works long life time!
