Mambrane Switch Panel Sticker

Mambrane Switch Panel Sticker thumbnail-1
Mambrane Switch Panel Sticker photo-1
US$ 0.01 - 0.5 MOQ: 5000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
China-P
Model Number:
0807
Contact Supplier Request Quote Chat Now
Shenzhen China-P Printing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name China-P
Model Number 0807
Application Telecommunication Equipment
Keypad Button Material Other, PC

Specifications

Membrane panel
1.Custom made
2.Light weight,compact structure,good-looking appearance
3.Recycle and long servuce life

Membrane panels,PET keypad membrane panel



PRODUCTS DETAILS



1.Material:PC



2.Printing:silk-screen printing



3.Size:welcome customized



4.Double sides tape:3M467,3M468



5.Good quality,durable and recycled



6.Can be used for any electrical equipment



Our membrane switches are widely used in :

  • Medical Equipment
  • Telecommunications apparatus
  • Telephone systems
  • Household appliances
  • Security systems
  • Point of sale apparatus
  • Industrial controls
  • Access control systems.....



Maximum circuit rating:  35v DC, 100 milliamps, 1 watt



Contact Resistance:       10-500W    (depending on trace length and material used)



Insulation Resistance:    100 MW at 100 v



Dielectric Withstand:        250v RMS (50- 60 Hz  1 minute)



Contact Bounce:                <5.1 ms



Life Expectancy:                 Flat type >Five million closures



                                               Tactile type > One million closures

MECHANICAL



Actuation Force:                Flat type = 57 - 284 g



                                            Tactile type  = 170 -397 g



Switch Travel:                    Flat type = 0.1 to 0.5 mm



                                            Tactile type = 0.6 to 1.5 mm



ENVIRONMENTAL



Operating temperature:   -401C to +801 C



Storage temperature:       -401 C to +851 C



Humidity:                             401 C, 90% - 95% for 240 hours



Vibration:                              20 Gs max. (10-200 Hz, MIL-STD-202, Condition B)







PRODUCTS SHOW

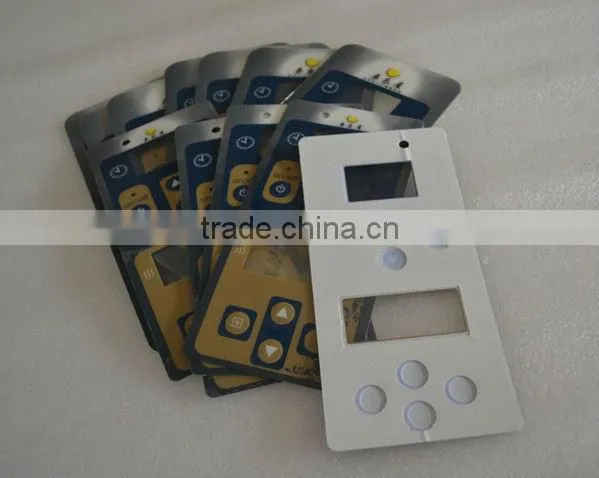

Mambrane switch panel sticker

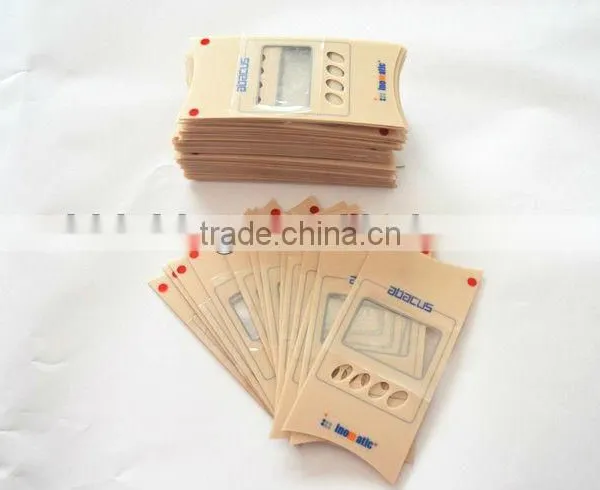

Mambrane switch panel sticker

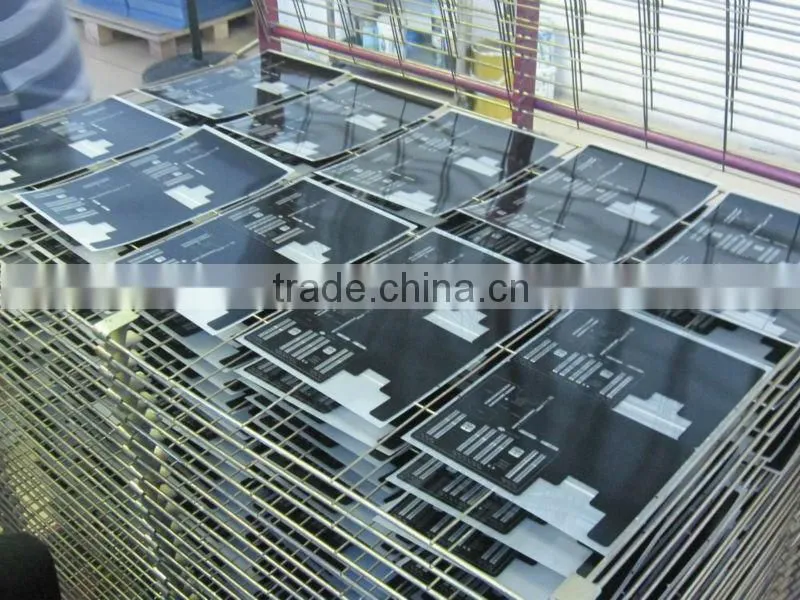

Mambrane switch panel sticker

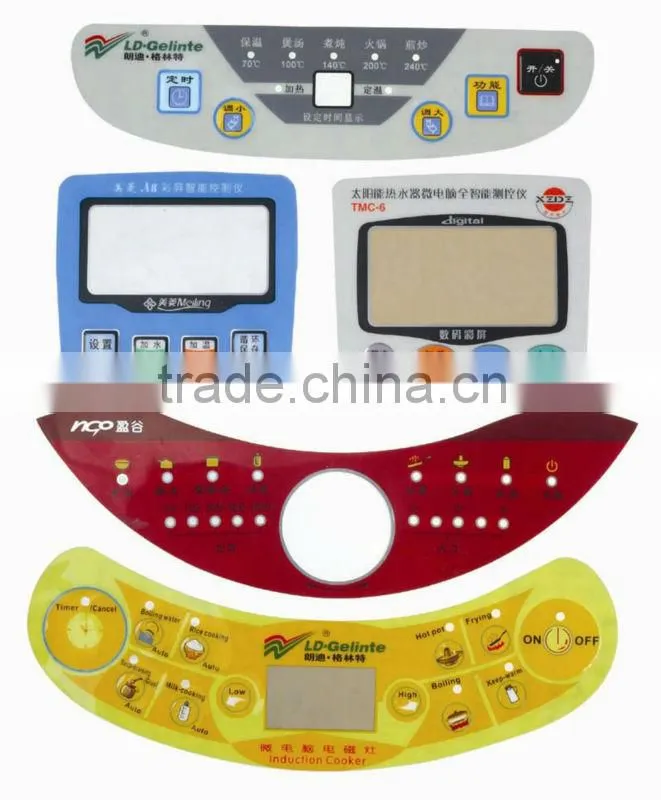

Mambrane switch panel sticker

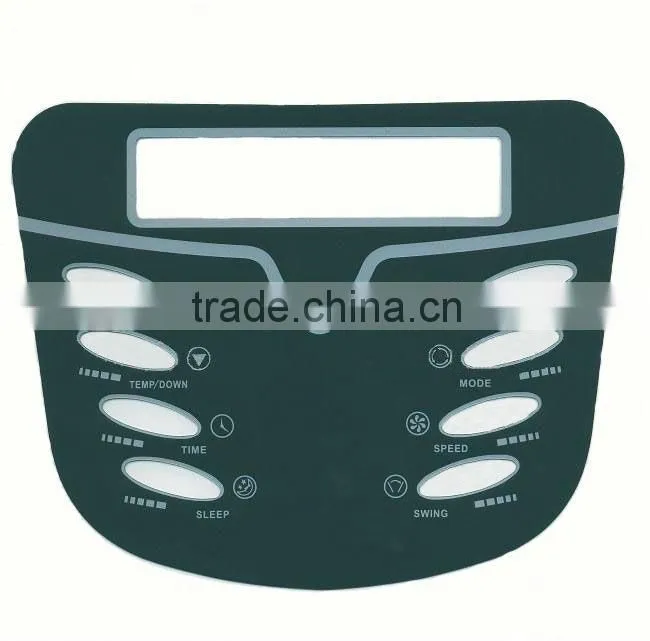

Mambrane switch panel sticker

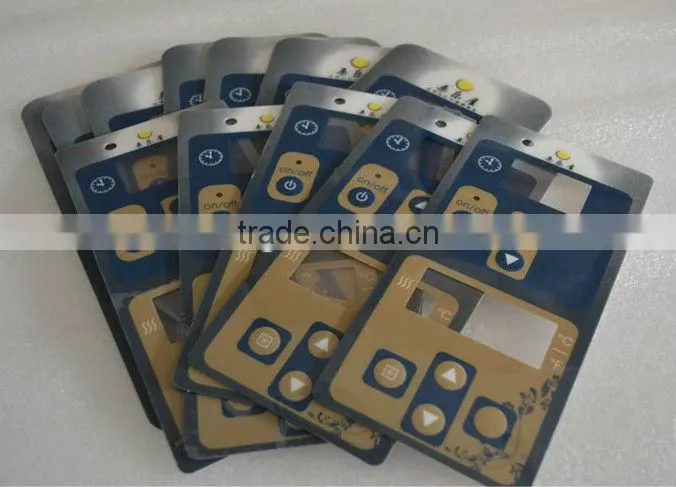

Mambrane switch panel sticker

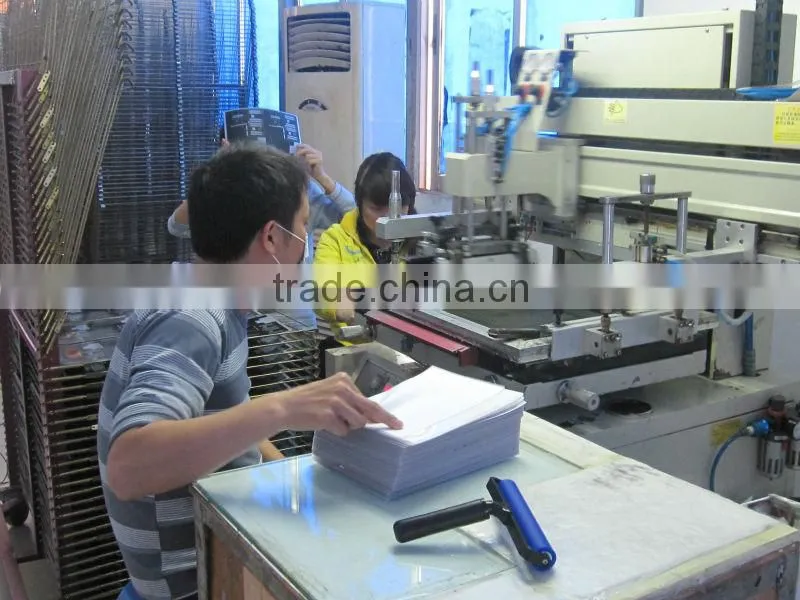

Silkscreen Printing Workshop

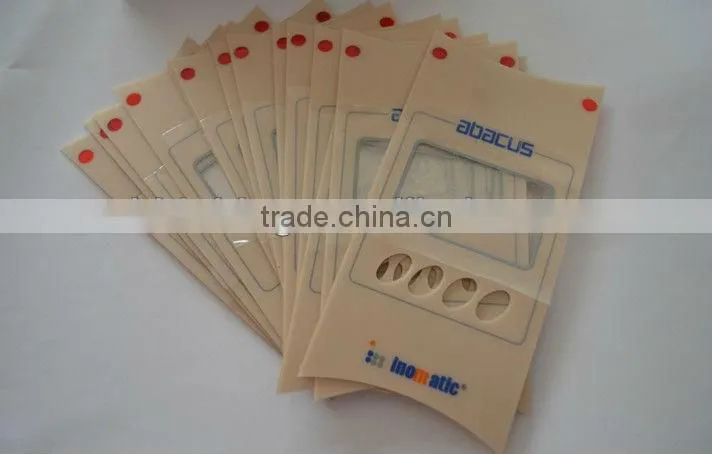

Mambrane switch panel sticker



Mambrane switch panel sticker
