Sinroad Fiberglass Mesh strengthening Construction structure Wall Reinforce Layer
Introduction
Sinroad Fiberglass Mesh is on the basis of alkali-resistant or C-glass or E-Glass woven fabric, then coated by acrylic acid copolymer liquid,possesses the properties of good alkaline-resistance, high strength, excellent alkali and acid resistance, good cohesion,excellent in coating etc.
Specification
| NO | SPEC(mm) | Width(mm) | Mesh size(mm) | Yarn density(tex) | Resin content(%) | Mash(g/m^2) | Tensile strength(N/50mm) | |||
| warp | weft | warp | weft | warp | weft | |||||
| 1 | 5x5-145 | 1000 | 5 | 5 | 132x2 | 364 | 18±2 | 145±3 | 1450 | 1550 |
| 2 | 5x5-125 | 1000 | 5 | 5 | 99x2 | 343 | 18±2 | 125±3 | 1100 | 1300 |
| 3 | 5x5-110 | 1000 | 5 | 5 | 99x2 | 278 | 18±2 | 110±3 | 1000 | 1100 |
| 4 | 4x4-165 | 1000 | 4 | 4 | 132x2 | 338 | 18±2 | 165±3 | 1500 | 1650 |
| 5 | 4x5-160 | 1000 | 4 | 5 | 132x2 | 357 | 18±2 | 160±3 | 1500 | 1600 |
| 6 | 4x5-145 | 1000 | 4 | 5 | 132x2 | 295 | 18±2 | 145±3 | 1500 | 1400 |
| 7 | 4x4-145 | 1000 | 4 | 4 | 99x2 | 340 | 18±2 | 145±3 | 1500 | 1500 |
| 8 | 4x5-125 | 1000 | 4 | 5 | 99x2 | 293 | 18±2 | 125±3 | 1150 | 1350 |
| 9 | 4x5-110 | 1000 | 4 | 5 | 66x2 | 308 | 18±2 | 110±3 | 1100 | 1200 |
| 10 | 4x4-90 | 1000 | 4 | 4 | 66x2 | 202 | 18±2 | 90±3 | 1000 | 800 |
| 11 | 4x4-85 | 1000 | 4 | 4 | 33x2 | 260 | 18±2 | 85±3 | 800 | 900 |
| 12 | 4x4-75 | 1000 | 4 | 4 | 33x2 | 220 | 18±2 | 75±3 | 700 | 850 |
| 13 | 4x4-60 | 1000 | 4 | 4 | 33x2 | 160 | 18±2 | 60±3 | 700 | 500 |
Application
1.75g / m2 mesh fabric used in the reinforcement of thin slurry, to eliminate small cracks and scattered throughout the surface pressure.
2.110g / m2 mesh cloth is widely used in indoor and outdoor walls, prevent the various materials (such as brick, light wood, prefabricated structure) of treatment or caused by a variety of expansion coefficient of wall crack and break .
3. 145g/m2 mesh fabric used in the wall and be mixed in various materials (such as brick, light wood, prefabricated structures), to prevent cracking and scatter the whole surface pressure, especially in the external wall insulation system (EIFS ).
4. 160g / m2 mesh fabric used in insulator layer of reinforcement in the mortar, through shrinkage and temperature changes by providing a space to maintain movement between the layers, prevent crack and rupture due to shrinkage or temperature change.

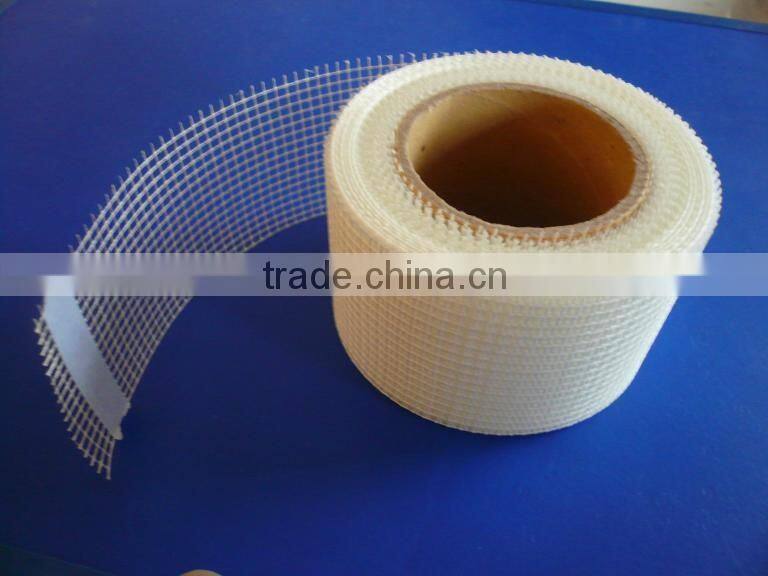

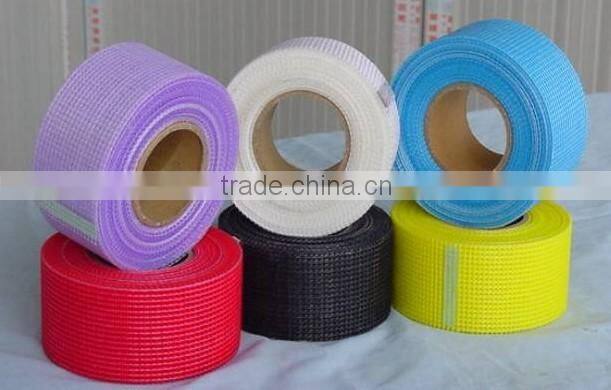

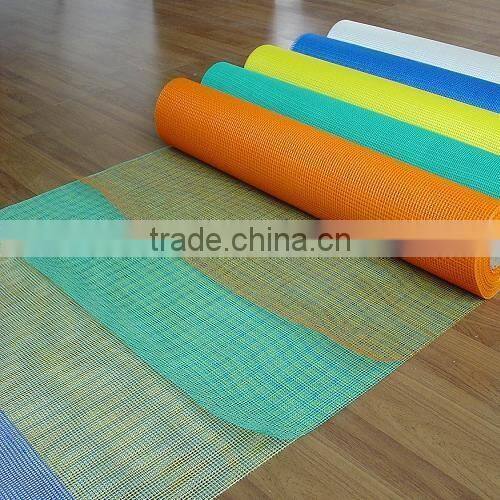

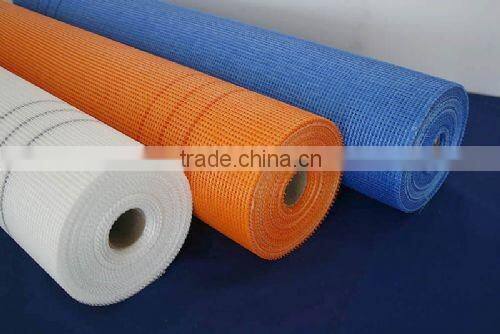

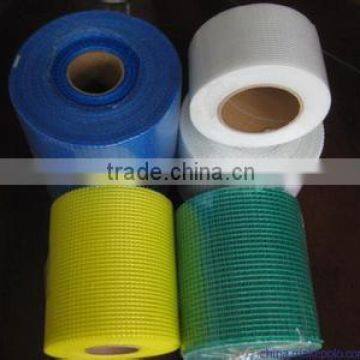

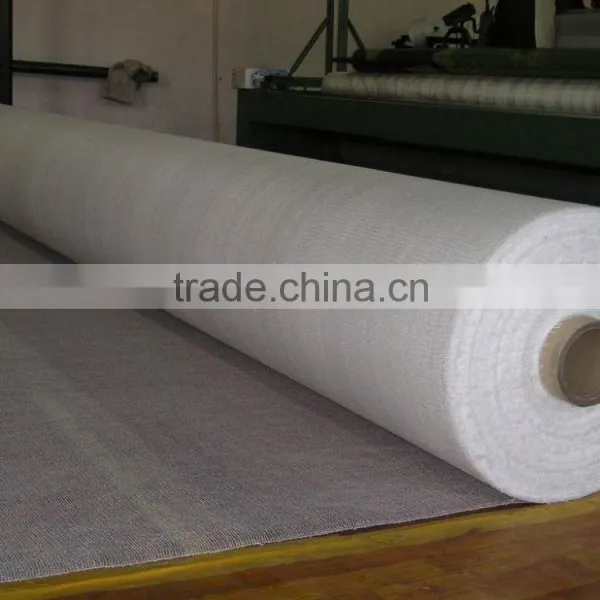

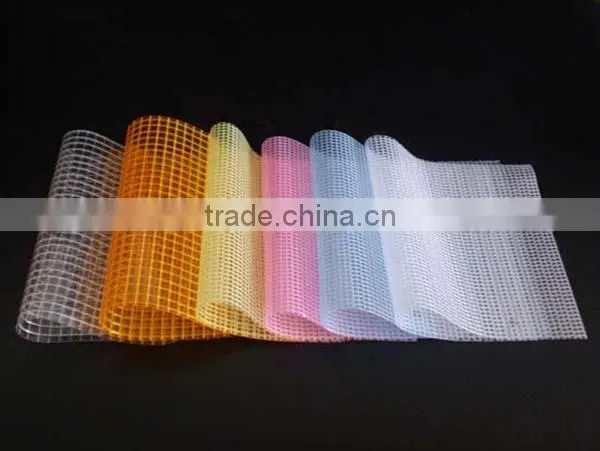

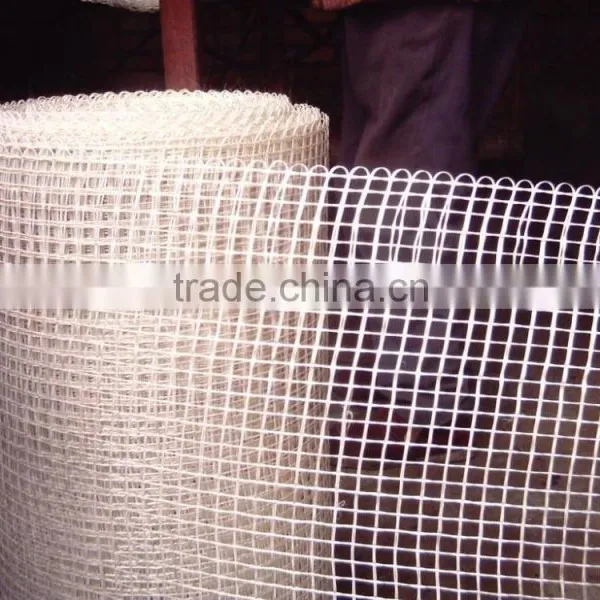

Product Pictures
Instruction

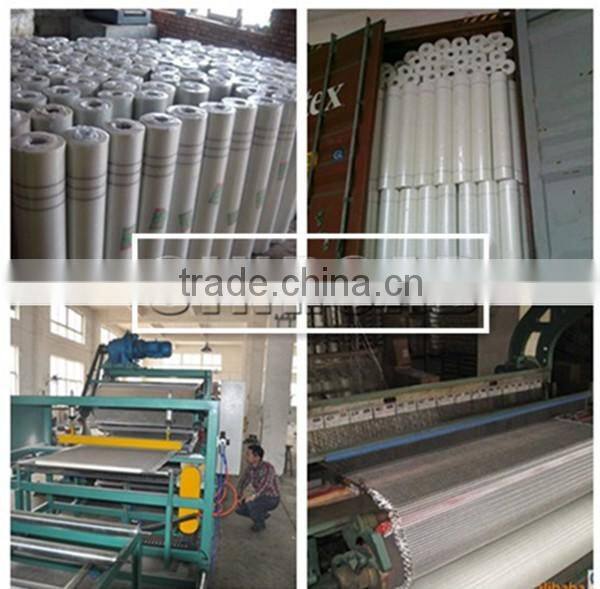

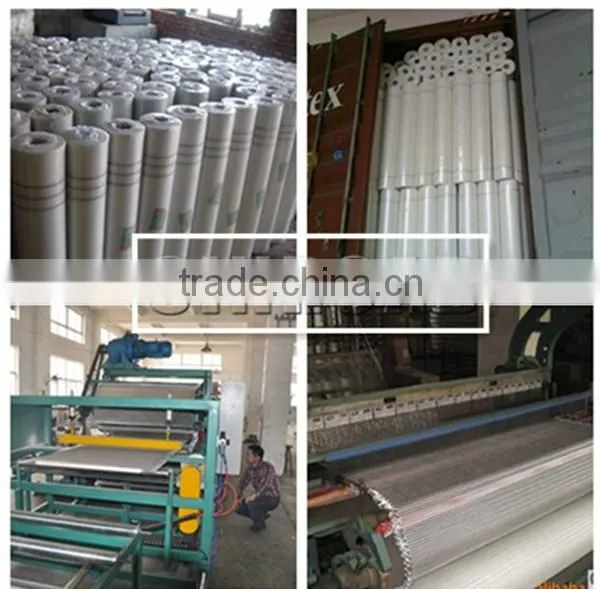

Factory Pictures
company Introduce
