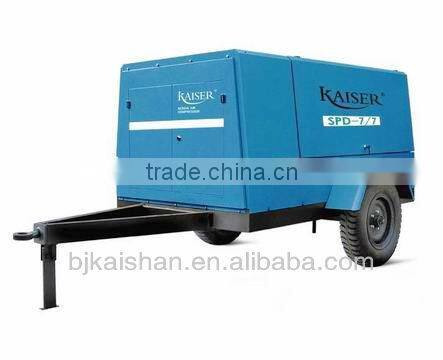

Help CenterKAISER SPD 7.4-7 Electromotor Portable Rotary Screw Air Compressor(261cfm,102psi)
Related Products
-
Air Compressor / Screw Air Compressor / KAISER SPD 6.5-10 Portable Rotary Screw Air Compressor(230cfm,145psi,60HP)US$ 15,000 - 20,000MOQ: 1 Set -
Air Compressor / Screw Air Compressor / KAISER SPD 5.6-13 Portable Rotary Screw Air Compressor(198cfm,189psi,60 HP)US$ 15,000 - 20,000MOQ: 1 Set
-
Crawler Drilling Rig / Portable Crawler Drill / KAISER SPD 10.5-7G Portable Rotary Screw Air Compressor(371cfm,102psi)US$ 15,000 - 20,000MOQ: 1 Set
-
Air Compressor / Screw Air Compressor / KAISER SPD 8.7-10 Portable Rotary Screw Air Compressor(307cfm,145psi,75HP)US$ 15,000 - 20,000MOQ: 1 Set
-
KAISER SPD 7.5-10 Electromotor Portable Rotary Screw Air Compressor(265cfm,145psi)US$ 15,000 - 20,000MOQ: 1 Set
Specifications
1.Configuration: Portable2. Motor: 45 kw / 60 HP
3. Max Bar: 7 bar / 102 psi
4. FAD: 7.4 m3/min ( 261 cfm)
About Kaiser Portable Screw Air Compressor
SPD Series Portable Screw Air Compressor are designed for a variety of segments like abrasive sandblasting, construction and mining
where they are used to drive heavy pneumatic tools like jack hammer, pavement breaker, chipping hammer, pneumatic pumps etc.
·15%-30% of energy saving.
·Air filtration system with vacuum indication for dust environments.
·High reliability with less compressor parts and no wearing parts.
·Long working life and overhaul interval can be up to 80000 hours.

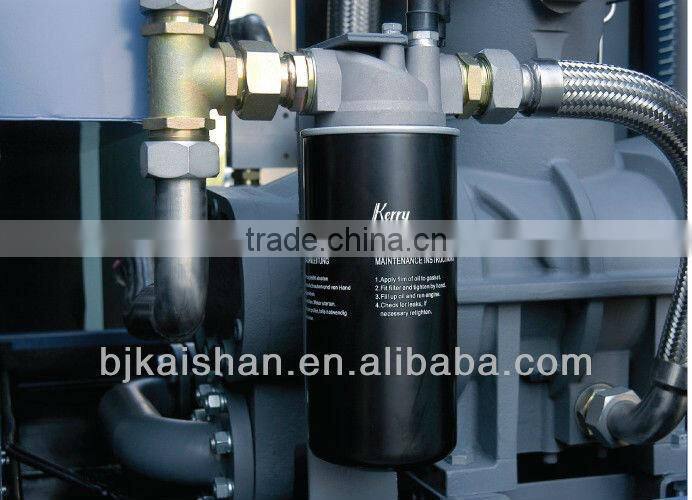

·Efficient compressor oil filter.
·High degree of automation and convenient operation & maintenance.

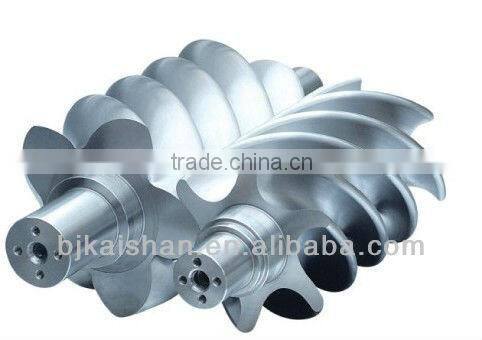

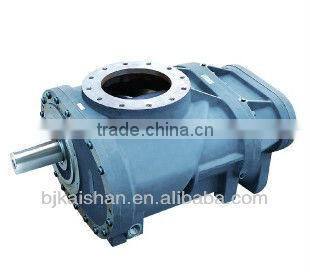

Airend · Direct Driven --- No Gearing, No Belt!
Rotors are the key elements in producing compressed air efficiently. Kaiser airends utilize a male 5 lobe rotordriving rotorand a 6 lobe
(female rotor driven rotor).These state of the art Y profile rotors were introduced in the Kaiser series compressor.
They have the following characteristics:

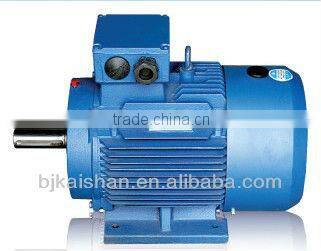

Drive Motor
IP55 rated, standard efficiency, IEC motors are used on every kaiser compressor. Over sized cast iron conduit boxes make
connections easy. The industry best motor grease is used to protect motor bearings, provide longer lubricant life, greater shear
stability and the best resistance to rust and corrosion.

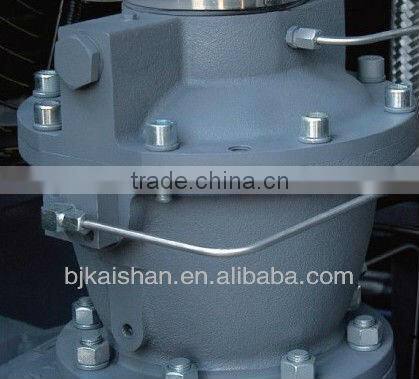

Inlet Valve
The Inlet Valve is the major air flow control component in the compressor unit.It controls air flow to the compressor,either by opening,
throttling, or closing completely in response to pressure transducer controls.
Drive Coupling
The latest European designed spider couplings are used to guarantee the reliability and transmission efficiency and provide
vibration free power transmission for quiet and maintenance free operation.

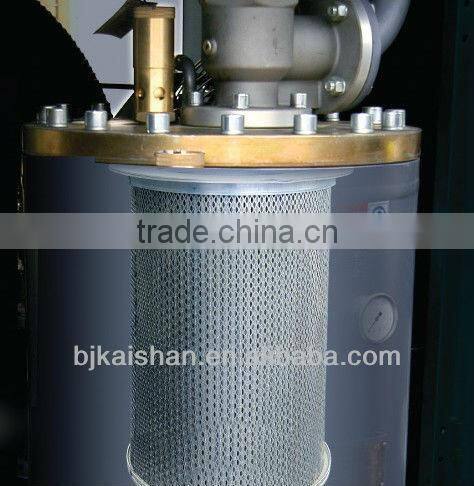

Oil Separation System
The threestage separation system, the result of extensive research and development, supplies high quality compressed air. The sepa
ration tank has two different separation stages: Centrifugal and gravity. The third stage separation is provided by a high performance,
long life coalescent separator filter. The efficiency of the first two stages assures the long life of this coalescent filter. This system
limits oil vapors carryover to below 3 ppm.

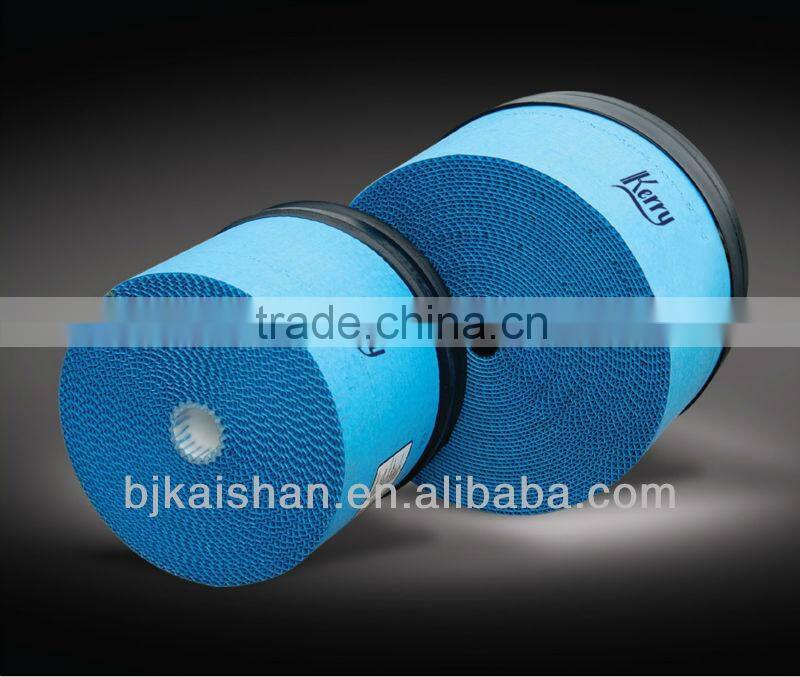

Kerry Air Filter
Kaiser series compressors use the Kerry air filter which provides filtration to less than 3 microns Ultra Web nanofiber technology.
This technology ensures clean, unrestriced airflow for optimal compressor operation. It has 99.99% filtration efficiency and fully
complies with ISO 5011 standards. Strategic air inlet port positioning receives the coolest air as it enters the cabinet to ensure
superior volumetric efficiency.
Specifications:
1. Place of Origin: China
2. Configuration: Portable
3. Brand Name: Kaiser
4. Model Number: SPD 7.4-7
5. Motor: 45 kw / 60HP
6. Max Bar: 7 bar / 102 psi
7. FAD: 7.4 m3/min (261 cfm)
8. Weight: 1200kg
9. Dimension: 2850 x 1520 x 1500 mm
10. Delivery Time: As Per Your Requirement
11. Packaging Details: Standard
12. Supply Ability: Enough
Main Products
Stationary Type:
1.Electromotor Powered Screw Air Compressor: 28~2543 cfm, 116~189 psi g, 10~544 HP.
2.Diesel Driven Screw Air Compressor: 212~1377 cfm, 102~508 psi g, 79~857 HP.
3.Electromotor Powered Reciprocating Air Compressor: 2.8~170 cfm, 116~580 psi g, 1~102 HP.
4.Diesel Driven Reciprocating Air Compressor: 48~459 cfm, 73~102 psi g, 15~102 HP.
Movable Type:
1.Diesel Driven Screw Air Compressor: 212~1377 cfm, 102~508 psi g, 79~857 HP.
2.Electromotor Powered Screw Air Compressor: 28~2543 cfm, 116~189 psi g, 10~544 HP.
3.Electromotor Powered Reciprocating Air Compressor: 2.8~170 cfm, 116~580 psi g, 1~102 HP.
4.Diesel Driven Reciprocating Air Compressor: 48~459 cfm, 73~102 psi g, 15~102 HP.

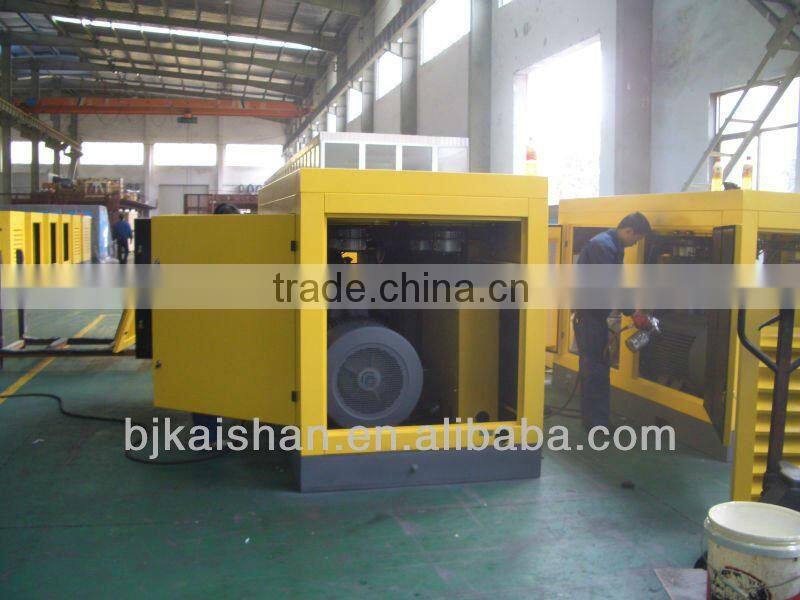

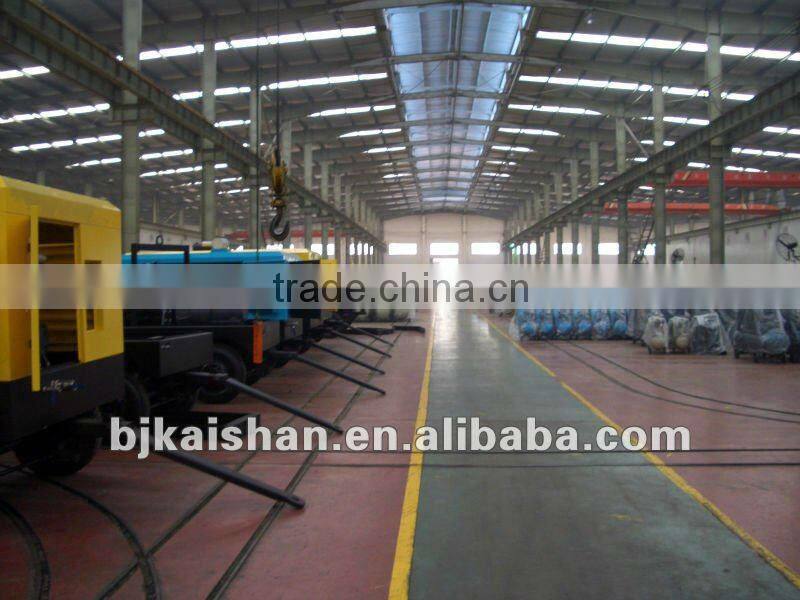

Advanced Manufacturing Equipments
The Kaiser Series compressors are the result of extensive testing and evaluation, which has resulted in one of the most dependable
compressors on the market today. All of our compressors are extensively tested before leaving the factory ensuring long term
reliability and giving you peace of mind.
German KAPP-RX Screw Rotor Grinding Machine
Japan MHU630A Machine Center
German HEXAGON 3-Coordinate Measuring Machine
