Specification of 150cc engine
Engine type | 2V91MW | ||||||||
4-stroke, single Over Head Camshaft(SOHC), Liquid cooled | |||||||||
Number of cylinders | 2 | ||||||||
Number of valves | 8 valves (mechanical adjustment) | ||||||||
Bore | 91 mm | ||||||||
Stroke | 61.5 mm | ||||||||
Displacement | 800 cm3 | ||||||||
Compression ratio | 10.3:1 | ||||||||
Decompressor type | N.A. | ||||||||
Maximum HP/ RPM | 44Kw/6000 RPM | ||||||||
Maximum Ne /RPM | 73N.m/5000 RPM | ||||||||
Idle speed | 1250 ±50 RPM (not adjustable) | ||||||||
Lubrication | Type | Wet sump. Replaceable oil filter | |||||||
Oil filter | Paper type, replaceable | ||||||||
Engine oil pressure | Minimum | 350 kPa at 6000 RPM | |||||||
Engine oil | Capacity (oil change with filter) | 2.2 L | |||||||
Recommended | SAE 10W40 API classification SL, SM or above | ||||||||
Intake valve opening | 10°BTDC | ||||||||
Intake valve closing | 45°ABDC | ||||||||
Exhaust valve opening | 50°BBDC | ||||||||
Exhaust valve closing | 0°ATDC | ||||||||
Gearbox | |||||||||
Type | Dual range (HI-LO)with park, neutral and reverse | ||||||||
Gearbox oil | Capacity | 400 ml | |||||||
Recommended | XP-S chaincase oil | ||||||||
Trans-Ratio | High gear : 2.886 Low gear : 5.29 Reverse gear : 5.087 | ||||||||
Rotating | Clockwise direction (in front of the rear shaft ) | ||||||||

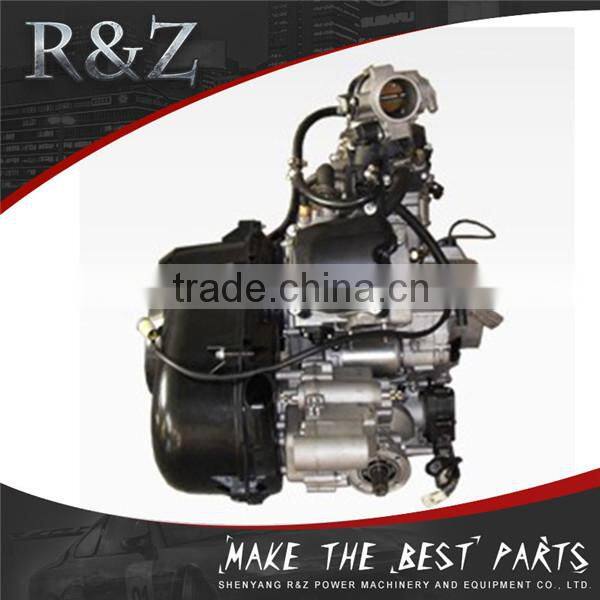

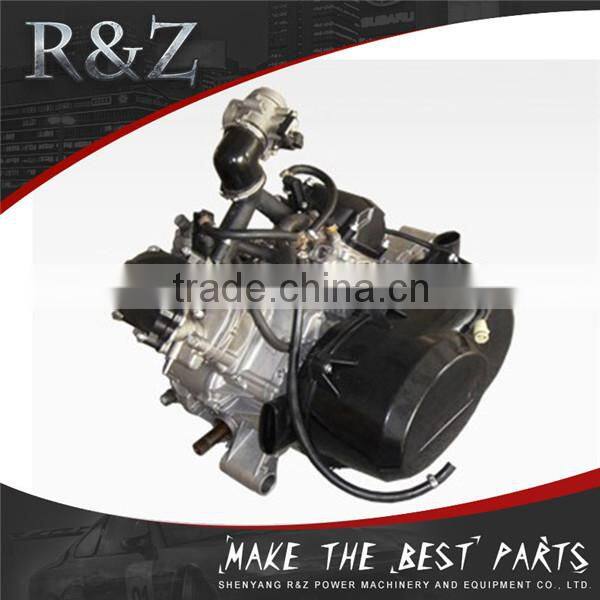

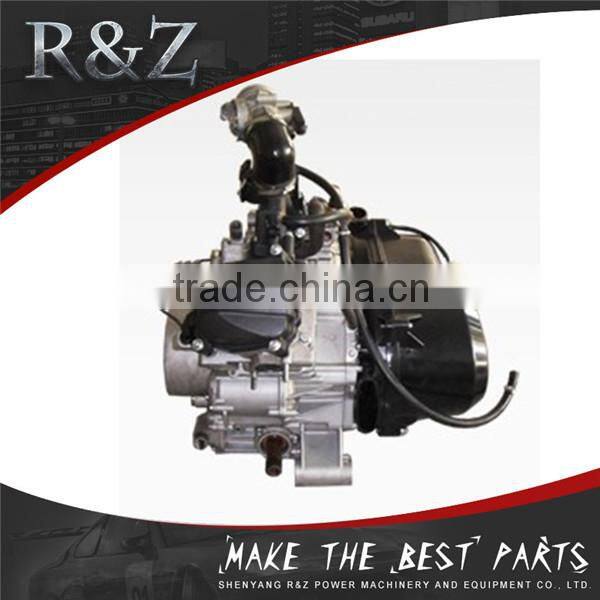

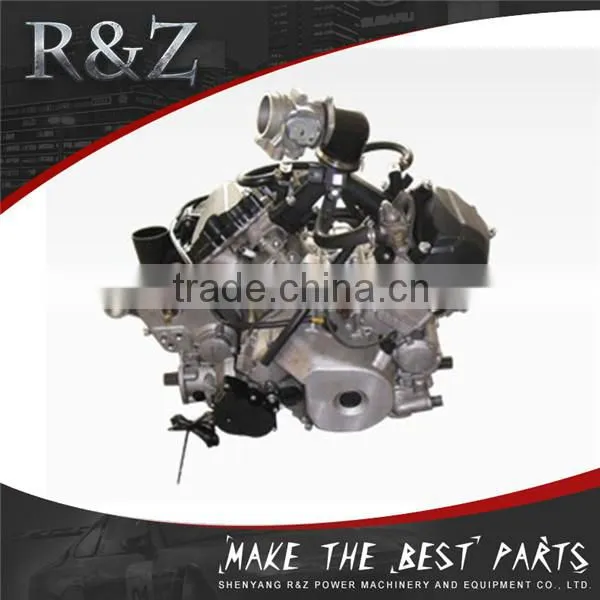

Pictures of 150cc engine
Features
1. High efficiency and low emission
2. Low fuel consumption
3. Easy and fast starting
4. Convenient operation
5. Endure the hard work
R&Z Parts Supply Other Related Engines As Follows:
Toyota 2Y/3Y/4Y/B3/2RZ/3RZ/Isuzu 4BD1/4BD1T/6BD1/6BD1T/4JB1/4JB1T/4HE1T/4HF1
Nissan QD32T/QD32TI/Suzuki F8A/F8B/F10A/G13B/ Deutz F2L912/F3L912/ F4L912/ F4L912T/F4L913/
F6L912/F6L912T/ F6L913/ BF4L913 /BF6L913/Cummins 4BT/4BTA/6BT/6BTA/6CT/6CTA/NT855/
Perkins 1004-4/1004-4T/1006-6/1006-6T/Iveco 8140 SERIES 2.5L/2.8L Etc
R&Z Supply all kinds of engines for Light Duty Trucks, Pick Up, BUS, MPV, Heavy Duty Trucks Etc.
Our products are packed in wooden box with iron sheet support in every edge, with polywood lock at the bottom
and another cover at the top. We care all the details and guarantee all the goods arrived safely.
Shenyang R&Z Power Machinery and Equipment Co., Ltd as a leading manufacturer and supplier in China,
specializes in Car Care Equipment and Auto Parts such as engine assembly, transmission assembly,cylinder head,
camshaft, crankshaft etc. which are sold to Europe, North America ,South America, Africa ,South-East Asia and
the Middle East market.And our products are well satisfied and praised by our oversea customers.
To ensure you the best products, all of the production procedures are carried out by our well-trained workers and
closely monitored by experienced supervisors. We have Q.C. Inspections after each stage of production, plus
a final Q.C. inspection before packaging.
We aim to be a top class supplier for worldwide OEM and Aftermarket! Warmly welcome customers all over
the world to establish business relations with us on the based of mutual benefit.
1. Modern automatic workshops, advanced production lines and professional knowledge of assembly.
2. Strict IQC system ensure every spare parts are qualified.
3. In every step, senior engineer provide technical support to eliminate all detailed questions.
We sincerely welcome all of you come to visit our company and discuss cooperation matters.
Pre-sale
1) Communicate by Web services, Phone, Email, Skype etc.
2) 7 days*24hours Hot-line & Email Service.
3) Your inquiry related to our products will be replied within 24 hours.
4) Well-trained and experienced staff will answer all your questions in fluent English.
Payment and delivery
Payment Term by T/T, L/C, Paypal, Western Union etc.
Real-time shipment tracking.
Warranty
If quality & assembling problem caused troubles, we take responsible on spare parts and all service fees.
If misuse or human factors caused the trouble, users shall take responsible on spare parts and all service fees.
Q: MOQ
A:1 Unit
Q: Delivery Time
A:7-15days
Q: Payment Terms
A:30% deposit T/T, 70% T/T before shipment or L/C at sight
Q: Logo
A: We can make customers own logo in the engine for free.
Q: Package and Loading qty
A: Wooden Package, Loading qty : as the container's size
Q: Shipment
A: We can help customer to arrange shipment and keep goods safely.
Welcome your inquiry and any suggestion. We are moving with you because of your support !
