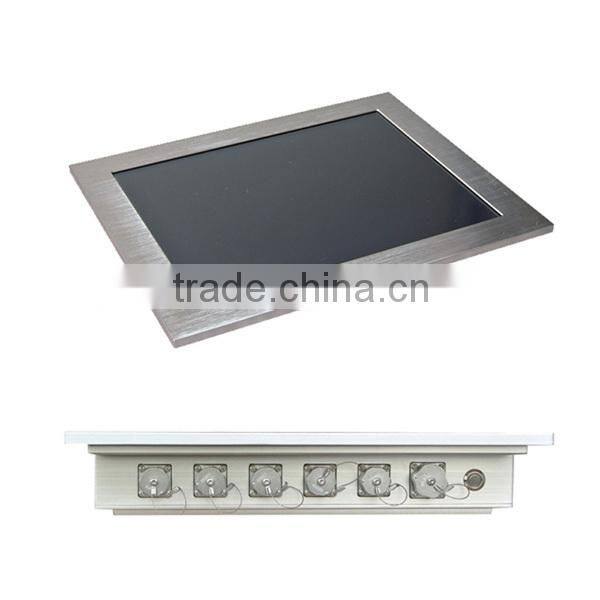

GS1504TI 15'' TFT LED industrial fully rugged tablet pc

Display Feature

Display Screen

15″ TFT LED

Resolution

1024*768

Brightness

350 cd/m2

Contrast ratio

400:1

Touch Screen

Resistive touch screen

Performance

Chipset

Intel® AtomN2600+ NM10

Memory

2G memory (DDRIII), up to 4GB

Hardware Monitor

Monitors voltage, TEMP and CPU fan speed

Watchdog Timer

Programmable 256 levels timer interval, from 1 to 255 sec, setup by software

Storage

HDD:320GB  2.5'HDD

CF :(Optional)

Operating System

Windows XP/ Windows 7/ Linux

Power Feature

Input voltage/frequency: 100~240VAC/50~60Hz (Power adapter);

Input voltage: 9~36VDC Optional; (No power adapter)

Power consumption of the PC: 25W (standby);

Power consumption of the PC: 42W (Running MaxPower 100%).

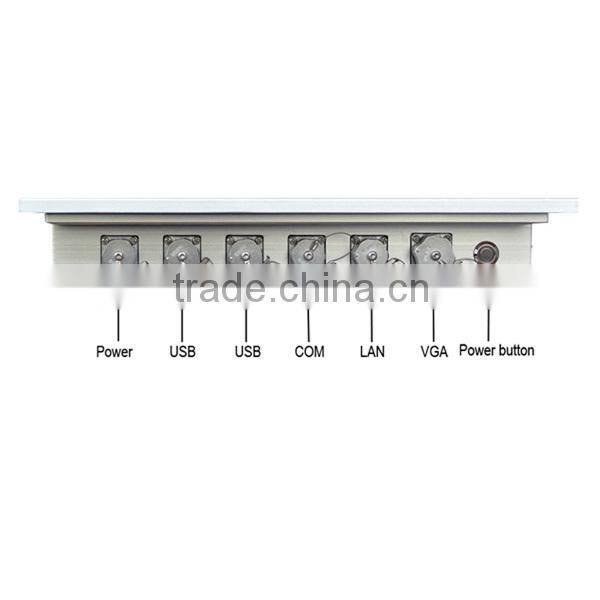

I/O Interface

USB

1 or 2*USB2.0 Ports

Serial Port

2 or 1*RS232

Ethernet

1* RTL8111DL 10/100/1000Mbps  RJ45

Display

1*VGA

Wireless

WIFI/3G (Optional)

Environmental

Anti-vibration

5-19Hz/1.0mm amplitude;19-200Hz/1.0g, acceleration

Anti-shock

10g acceleration, 11ms duration

EMC

GB9254-2008 Class A

IP Level

Complete IP65

Reliability

MTBF≥50000h; MTTR≤0.5h

Operating Temperature

-10℃~50℃ (with air flow)

Storage Temperature

-20℃ ~60℃

Operating Humidity

95% @40℃, non-condensing

Mechanical

Dimensions

380mm(L)×300mm(W)×60 mm(H)

Material

High-strength and elegant Al-alloy panel

Weight

9.5kg/10.5kg (NET./GROSS.)

Color

Slivery/Black/White
