Specifications
car central locking system with transmitter1. Lock/Unlock
2. Easy install
3. Window closer output
4. suitable for any car
Specifications
Ultrasonic welded and excellent waterproof
With the trunk release output(can be selected - or +)
6 Hole to 8 Hole sheet metal is available
More than 120 kinds of remote for matching
Main unit:
Frequency: 315 MHZ
Coding: learning code
Voltage: DC12V
Static Current: <15mA (except indicator, sensor)
Indicator Current: 20mA intermittently
Shock sensor current: < 1mA
Dynamic torsion: 4.5--5.5kg
Static torsion: >3kg
Remote control:
Voltage:12V
Current: 0 mA
Battery: 27A/12V
Frequency: 315 MHZ
Coding : Learning code
Coding times : > 1 million
Available models:

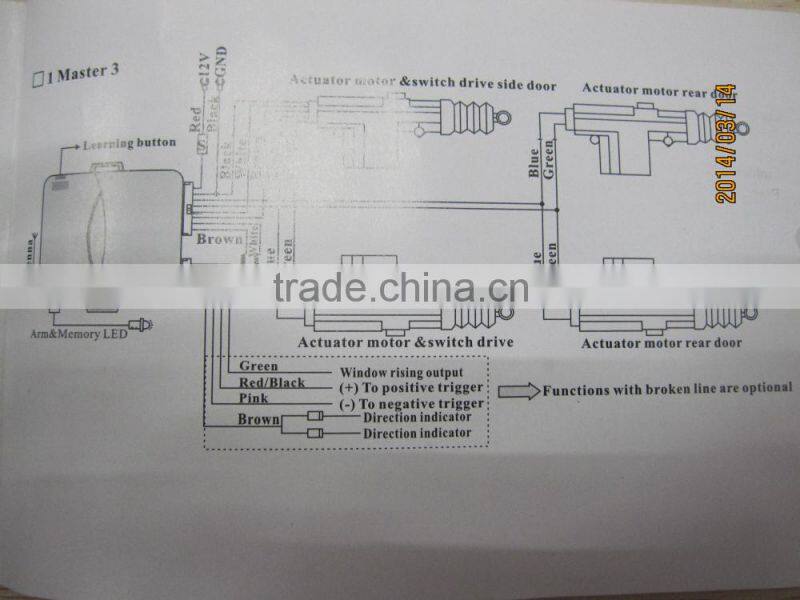

4-door system, 1 master controls 3 slaves
4-door system, 2 masters control 2 slaves
2-door system, 1 master controls 1 slave
2-door system, 2 masters
Main features
1 master;3 slaves
Universal specification,360 degree rotable
Waterproof
4 mounting holes for easy in stallation
Remote lock/unlock
Electronic lock/pneumatic lock programmable
Lights flashing output
Universal design
Trunk release output(optional)
Power window output(optional)
Operation temperature |
-30~80 C |
Stroke |
21-22mm |
Voltage |
12/24V |
No-load &load current |
1.5A+ OR -5% & 3A+ or - 10% |
Actuating force |
5.5kgs |
The cover materials(actuators & mainunit) |
757ABS |
Endurance(up & down) |
>100000times |
Wiring |
2 master:35.4M; 1 master:27M |

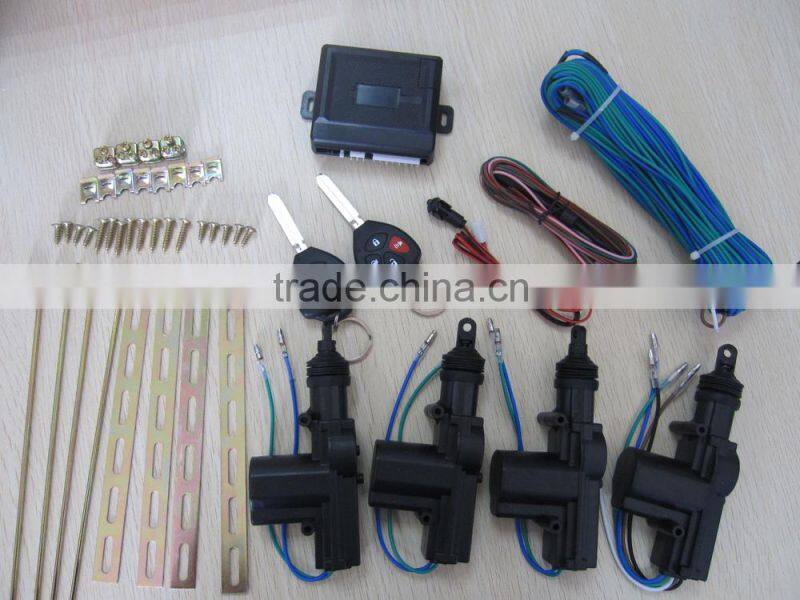

car central locking system with transmitter

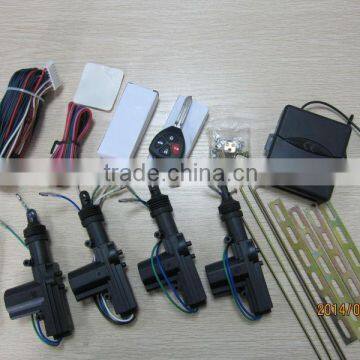

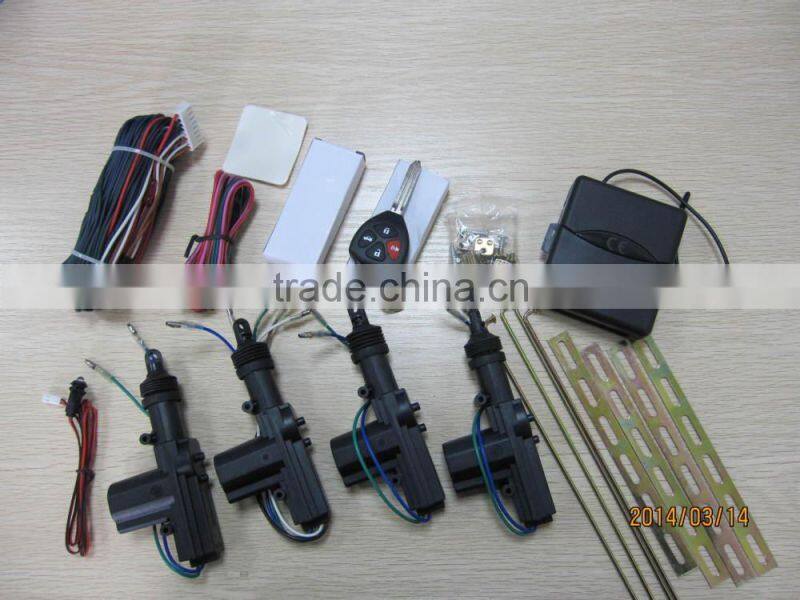

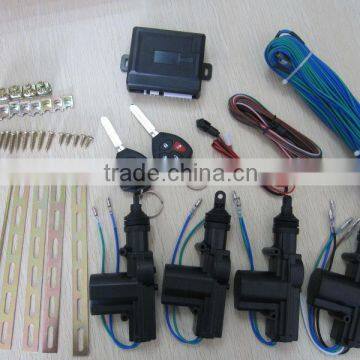

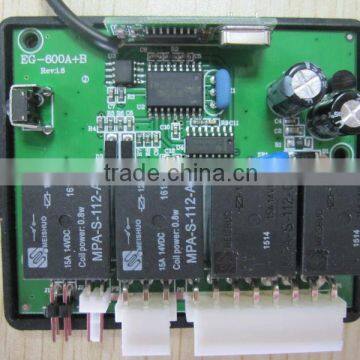

Product show

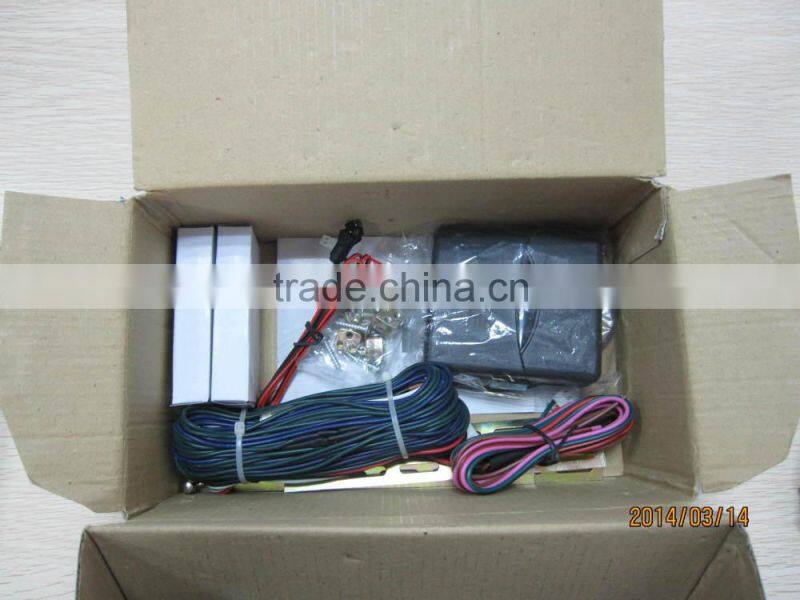

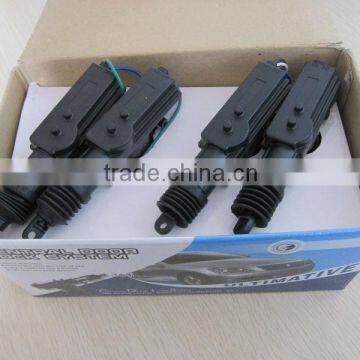

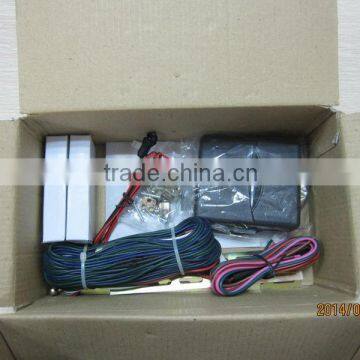

Packing

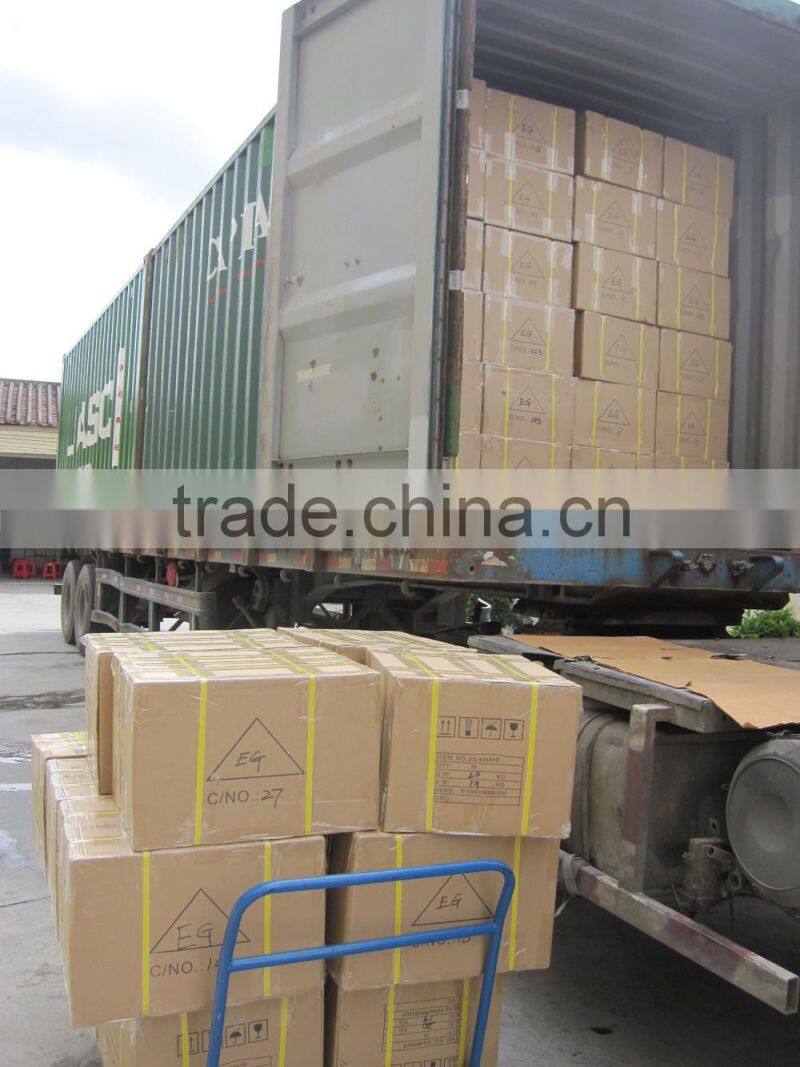

Shipping way
Our service
Company information
FAQ
1.Q:Are you manufactory or trade company?
A:We are the 100% manufactory specialized in auto alarm field. Founded in 2005, our main product are auto security systems, parking sensor systems, power window closers, keyless entry system GPS, HID conversion kits and other auto electronic products. We have 9 years of experience in this industry, with good quality and competitive price.
2.Q:How can I get the samples?
A:If you need samples,we can make as per your request .You should pay for the transportation freight and cost for sample,while the samples cost can be refundable after you place the order.
3.Q:How much the transportation freight of samples?
A:The freight depends on total weight and packing size and your area.
4.Q:Can we have our Logo or company name to be printed on your products or package?
A:Sure.Your Logo can be putted on your products, just tell us your request.
5.Q:What can purchasers do if the products have problems?
A:Our products all have one-year warranty. If they do have quality-related problems, please feel free to inform us, and we will try our best to make you pleased.
Welcome to visit our factory!
