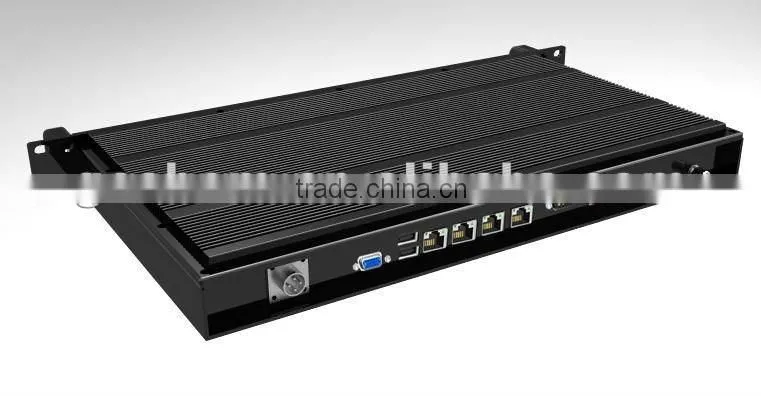

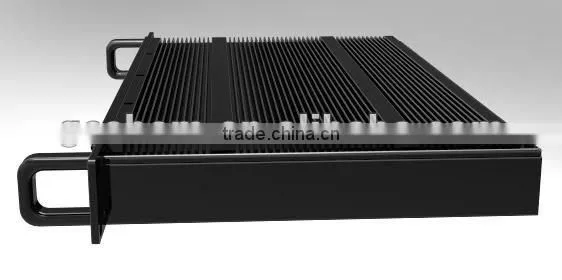

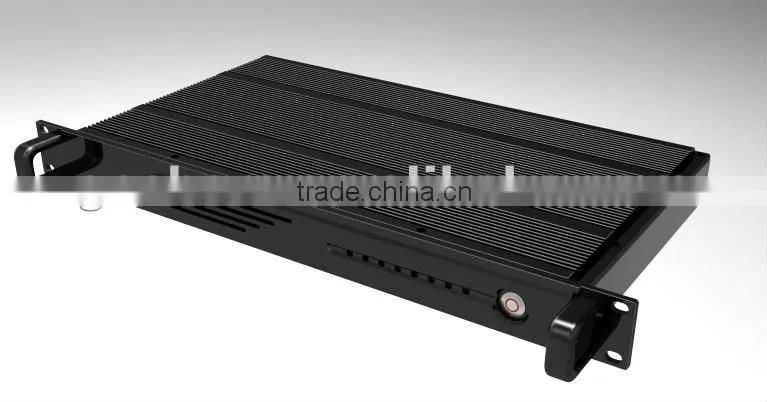

Atom D525 1.8G ICH8M Chipset Firewall

Name: Atom D525 1.8G ICH8M Chipset Firewall
Brand: Geshemtech
SKU: 101474697
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Products Status:

Stock

Type:

Embedded Computer

Brand Name:

Geshemtech

Shenzhen Geshem Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Products Status Stock

Type Embedded Computer

Brand Name Geshemtech

Model Number NPC-GS5410

Place of Origin Guangdong, China

Specifications

1U Rackmount Network Computer Fanless Design
Onboard Intel Atom D525+ICH8M
Onboard 2G memory(Max to 4G)

Test

Model	NPC-GS5410
Display Feature	1xVGA Port
CPU	ATOM D525,1.8GHz Dual Core+Intel ICH8M
Memory	Onboard 2G ( MAX. 4G)
Hardware Monitoring	CPU/system power fan speed detection; CPU/system temperature detection ; System voltage detection
Watchdog Timer	1~255 sec./min. Timer System Reset/Interrupt, Setup By Software
Storage	1x320GB 2.5' Hard Disk SSD/CF(Optional)
Ethernet	6xIntel 82583V 10/100/1000Mbps, One Bypass
Back I/O	2xUSB2.0 Ports;2xSerial Ports ; 4xRJ45
Panel I/O	Power Button; LAN LED
Mechanical And Environmental	Dimensions:482.6x243x44.4 (LxWxHmm); Weight: 3Kg/4 Kg ; Reliability: MTBF≥50000h; MTTR≤0.5h ; Safety: GB4943 ; Operating Temperature : -10°C~50°C; Storage Temperature : -20°C~60°C; Operating Humidity: 10%~95%, non-condensing
Power	Power Supply: 12V DC Power Input; Power consumption: 60W(Max)
Operating System	Linux/ Windows 7/ Windows XP

Vibration	5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
Shock	10g Acceleration, 11ms Duration@HDD 50g Acceleration, 11ms Duration@SSD
EMC	GB9254-2008 class A
Noise	≤ 40 dB
