Home > Products > Multi Needle Quilting Machines > MMS-12000 Multi Needle Chain Stitch Quilting Machine

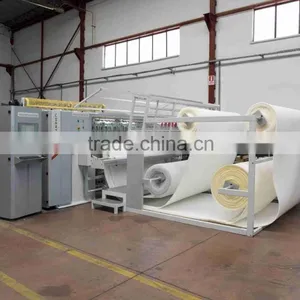

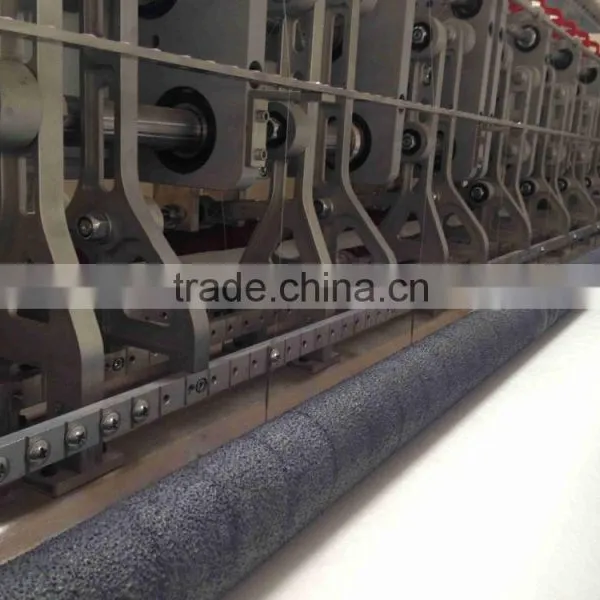

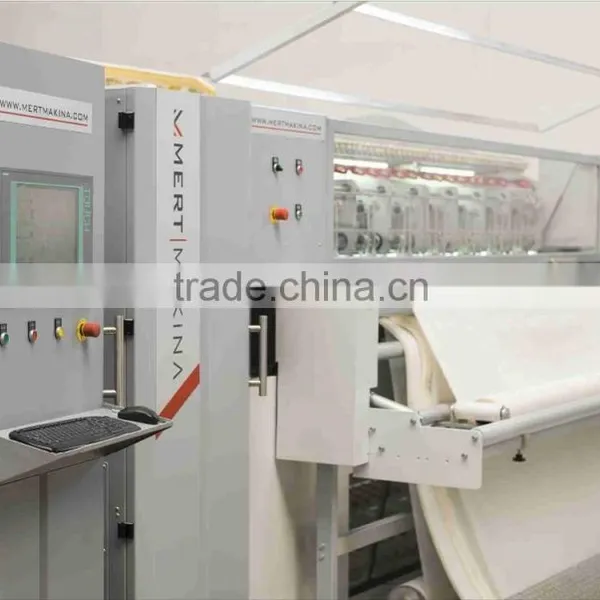

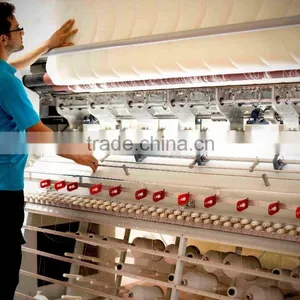

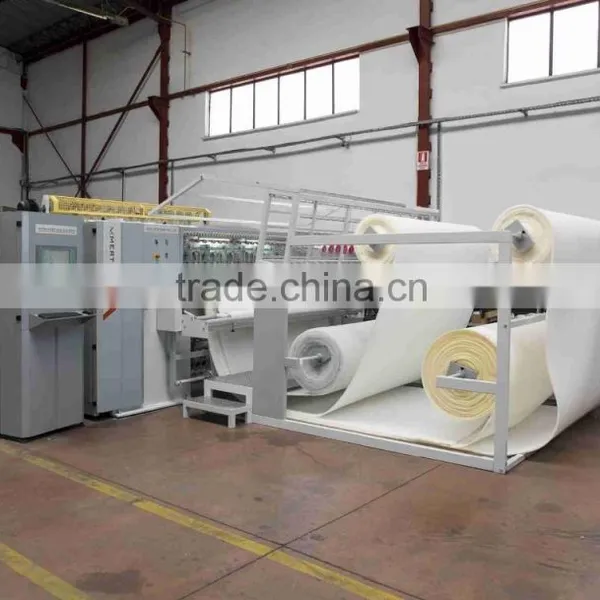

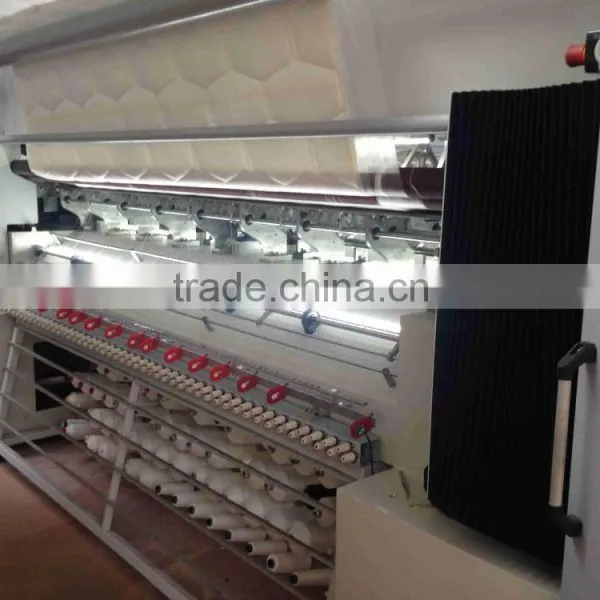

MMS-12000 Multi Needle Chain Stitch Quilting Machine
- 0 per Month
- T/T
- QYFS-22 Foam Crushing Machine
- QYFS-30 Foam Scraps Shredding Crushing Machine for Sale
- QYFS-30 High efficiency and safety Waste Foam Shredding Crushing Machine for Sale
- QYA-96-3C6 Computerized Chain Stitch Multi-needle Quilting Machine
- QYLS-76/64 Computerized Shuttle Multi-needle Quilting Machine for bedding covers
- QYCS-96-3-6 Computerized Chain Stitch Multi-needle Quilting Machine
Product Details
Condition: | New | Place of Origin: | Kayseri, Turkey | Brand Name: | Mert Makina |
Model Number: | MMS-12000 | Voltage: | 16 | Power(W): | 380 |
Weight: | 6.500 | Certification: | CE | Warranty: | 2 years |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Mert Makina is planted 6.000 square meters in Kayseri in 1994. We are produce Mattress and Furniture Production Machineries and are exporting these products to more than 65 countries for nearly 20 years. We have more than 2000 machineries working in mattress production all over the world.
Technical Details;

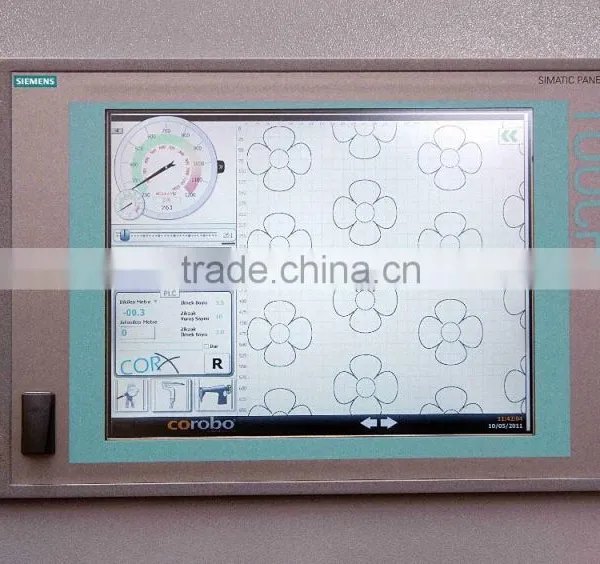

Our MMS 12000 quilting machine has the ability of straight sewing and jump pattern quilting with 1200 rpm production speed even with the thickest materials. Thanks to the industrial touch panel PC, it is designed to provide ease of use with its features of expansion in width and lengthwise, stitch length adjustment, length adjustment for jump patterns, pattern layout page, remote modem connection, adjustable normal sewing speed and jump pattern sewing speed. Innovations are made such as stopping automatically for personnel safety when bottom and top thread break or end, and when rear or front covers are opened; easy Luper adjustment; and placing the fabric supply units in stock parts to provide easiness for personnel intervention on the machine.
Capacity of MMS-12000 Multineedle Chain Stitch Quilting Machinery; It quilts 100 mt to 150 mt per hour. This rate can increase (150-200) and decrease (60-80 mt) but it depends on design. It can be say for standard design 100 mt per hour. This is 100x 8 hours per day: 800 mt can be quilted. This makes 150 to 200 mattress per day.
DEFINATION | MMS-12000 MULTINEEDLE DOUBLE CHAIN STITCH QUILTING MACHINE | DEFINATION | MMS-12000 MULTINEEDLE DOUBLE CHAIN STITCH QUILTING MACHINE |
RPM | 1200 | Advised Bottom Thread | 90-35 tex texturize poly. |
Output | 100 m p/hr (medium –design) 60 m – 150 m p/hr (small – big design) | Advised Upper Thread | 60-24 tex continuous filament poly. |
Quilting Thickness | Min. 1 cm – Max. 10 cm | Auto. Up Thread Cutting System | Available |
Quilting Feature | 360º Sewing Facility | Quality Standard | CE |
Quilting System | CNC Servo Motor Chain Stitch | Warranty | 2 Years |
Tack and Jump Design | Available | Power Requirements | 3 Phase 380 V / 16 KW |
Advised Needle Type | 160/23 | Compressed Air | 6 Bar |
Needle Space | 25 mm | Width | 494 cm |
Max. Material Width | 2700 mm | Length | 650 cm |
Max. Working Width | 2500 mm | Height | 250 cm |
Number of Needle Bars | 3 Bars | Weight | 6500-7000 kgs |
Distance Betw Needle Bars | 75*75 | Required Set-Up Area | 5.5 m x 7 m (width x lenght) |
Max. Lateral Pass | 30 cm | Required Loading Area |
|
Design Pattern | 150-300 load design |
|
|
Stitch Quality | Good |
|
|
Stitch Length | 2 mm – 7 mm |
|
|
