Home > Computer Products > Industrial Computer & Accessories > Industrial Computer > Fanless Box PC With Atom D525 1.8G GM3150 Chipset

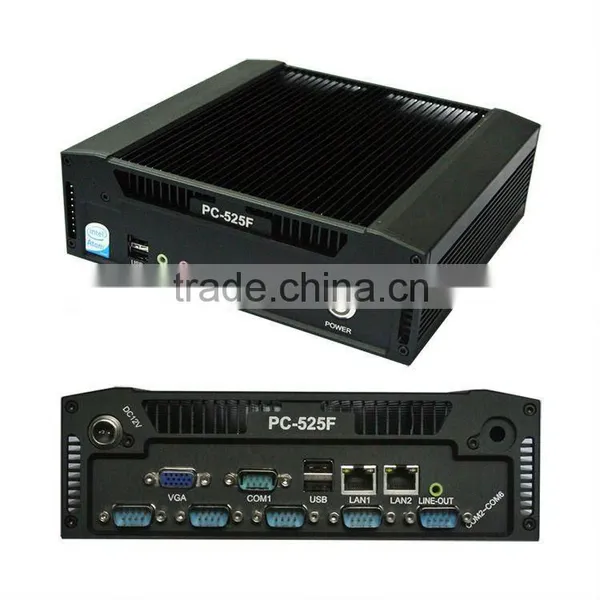

Fanless Box PC With Atom D525 1.8G GM3150 Chipset

Name: Fanless Box PC With Atom D525 1.8G GM3150 Chipset
Brand: Geshemtech
SKU: 101472409
Availability: InStock

Fanless Box PC With Atom D525 1.8G GM3150 Chipset thumbnail-1

Fanless Box PC With Atom D525 1.8G GM3150 Chipset photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Products Status:

Stock

Type:

Embedded Computer

Brand Name:

Geshemtech

Contact Supplier Request Quote Chat Now

Shenzhen Geshem Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Products Status Stock

Type Embedded Computer

Brand Name Geshemtech

Model Number PC-GS525F

Place of Origin Guangdong, China

Specifications

$keywords$
Intel Atom D525 1.8GHz Dual Core ,Fanless
WIFI(Optional),2xRJ45,4xUSB,6xCOM

$keywords$

Products View

Specification

Model	PC-GS525F
CPU	Intel D525 1.8GHz Dual Core
Chipset	Intel D525 + ICH8
Memory	Max. 4G
Graphics	Intel GM3150
Audio	Integrated AL C662 Audio
LAN	2xRTL 8111D, 10/100/1000M
Storage	supports standard SSD/2.5'HDD/Mini-SATA SSD
BIOS	AMI BIOS 4/8 Mbit flash
Back Panel Connector	1xVGR; 2xRJ45; 4xUSB; 6xCOM; WIFI(optional); 12V DC Power Input
Front Panel Connector	2xUSB; Power Button; Mic In/Audio Out
Operating System	Windowx XP/7, Linux, Win CE
Operating Temperature	0°c~50°c
Size	210x200x65mm
Material	High strength aluminum alloy chassis
Color	Black
Stucture	Fanless

Installation

Desktop/Settop/Wallmount/Dinmount

Packaging

One Set/One Carton

Carton Size : 340x260x120mm

Net Weight : 3kg

Gross Weight: 4kg

Carton and foam packaging are all customized according to products dimension which provide

protection of cargo to great extend during shipment.

Accessories

Driver Disk / Lockable Adapter / Power Cord / Internal Inspection Approval

Warranty

One year limited warranty

Testing Equipment

Part of testing equipment ( temperature&humidity&vibration combined testing machine/EMC device/

network performance analyis system/oscilloscope)

Advantage

-Alluminium alloy chassis with radiation fin protects system from erosion while providing high heat dissipation;

-Unique heat tower , made from material with low thermal resistance value, efficiently conduct heat arising from

CPU to chassis which is turned to a big heatsink by this thermal design;

-Fanless design, no CPU fan/system fan/power fan inside, greatly reduce maintenance workload, also make it

possbile to work in dust-rich enviroment;

-Onboard CPU ensure protection against shock and vibration(complying IEC 60068-2-27/64);

-Reliability MTBF≥50000H;MTTR≤0.5H

-Compact structure and small size,suitable for installation in limited space.

Application

Industrial Box PC is widely used in various system(automotive electronics/railsway traffic/vending machine/kiosk...)and mainly used as central control unit.
