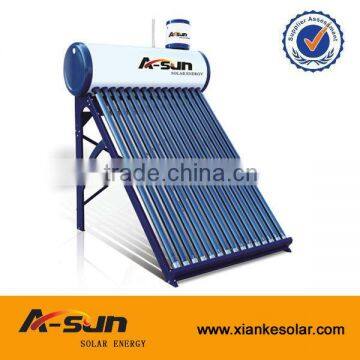

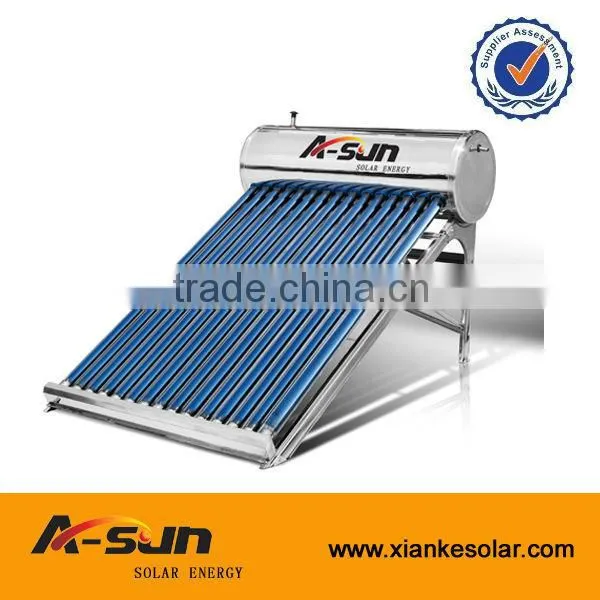

Passive swimming Pool Summer Stainless Steel Solar Heater

Specifications

Passive swimming Pool Summer Stainless Steel Solar Heater
1.easy to install
2.high heat transfer
3.304 stainless steel

Stainless steel solar water heating system



Feature:

1. the coating inside of the vacuum tube absorbs the solar energy.

2. water inside of the vacuum tube is heated by the coating layer.

3. the vacuum tubes insert into the non-pressure tank, so the hot water and cold water can circulate by

themselves because of different density.

4. non-pressure tank with PU layer keeps the water hot and store the water.

5. open loop type, hot water is supplied to the shower room because of water drop.

6. easy to install and high heat transfer rate over 95%.

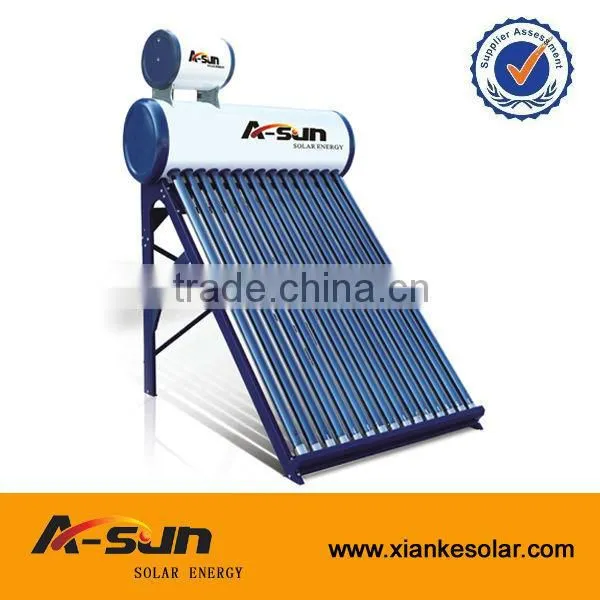

7. if add the feeder tank, it could load the water automatically and reduce the water pressure.

8. it is also applied in the water supply system with big storage tank and widely used in Middle East,

    South America.

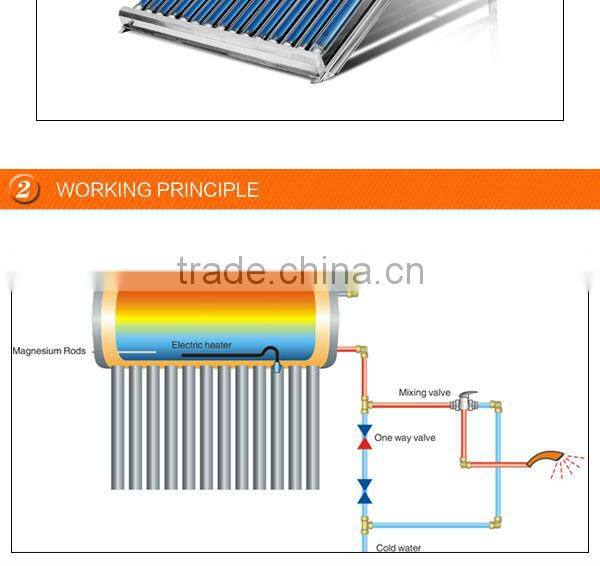

Stainless steel solar products Principle:

This system relies on natural circulation, the water in vacuum tube will be hot after the coating layer absorbs

solar energy. As we know, hot water is lighter and cold water is heavier, so hotter water will flows into tank

and colder water will flow to vacuum tube bottom, this circulation continues because of different water

temperature between the tank and vacuum tube. At last, the water temperature in tank and vacuum

tube will be the same, and circulation will stop. Then you can get hot water after several hours.



A-sun Non-pressure solar water heater stainless steel solar heating system
Model	Tube Quantity	Tank capacity	Volume(m3)
			Frame(m3)	vacuum tube (m3)	Tank(m3)	Total
XKNP47-1500-15	15	90L	0.061	0.088	0.253	0.4
XKNP47-1500-18	18	108L	0.061	0.103	0.295	0.46
XKNP47-1500-20	20	120L	0.061	0.114	0.324	0.5
XKNP47-1500-24	24	144L	0.07	0.134	0.38	0.59
XKNP47-1500-30	30	180L	0.089	0.175	0.465	0.73
XKNP58-1800-15	15	150L	0.066	0.159	0.332	0.56
XKNP58-1800-18	18	180L	0.066	0.198	0.387	0.65
XKNP58-1800-20	20	200L	0.066	0.217	0.425	0.71
XKNP58-1800-24	24	240L	0.07	0.263	0.5	0.83
XKNP58-1800-30	30	300L	0.087	0.319	0.612	1.02
XKNP58-1800-36	36	360L	0.105	0.394	0.725	1.22





Pre-sale:

1.make a report about the products manufacture by pictures and related words,

especially the technique that meet the client’s request.

2.When the client visits our company, we can also write a report to ensure the

production is same as client’s demand.

3.We’ll be responsible for the products loading, and send the clients photos.

After sales:

1.3D installation CD will be provided.

2.Special service for VIP client.

3.Warranty: 3 years for the water tank and 5 years for the vacuum tube.

4.1% vacuum tube for free, screw and silicone ring for free.
