Rubber compression molding machine , rubber vacuum heating press , rubber press machine 250T
1. Machine Features:
1. With double-motor double-pump double-oil-circuit system design, two working positions are controlled independently, and operate independently.
2. Adopting former top mold opening and closing, so that a mold is pushed out from the clamping mechanism, which is opened in front of the machine, thus it is easy to take out the product;
3. Using high negative pressure vacuum hood design, so that a mold can be in a nearly full vacuum environment, improving mold venting;
5. The vacuum hood can achieve vacuum of -650mmHG or above within 4 seconds, so it is most suitable for products difficult in molding and requiring precision;
2. Application:
Applicable to o-rings, packing, keyboards, rotary drums, pharmaceutical stoppers, anti-shock supplies, black rubber products, daily necessities, gaskets, conductive products, electronic equipment, etc. whose appearance require beautiful and precision edges
3. Main model and parameter :
No. |
Item |
Unit |
Model Item Parameters |
|
||
1 |
Clamping Force |
ton |
200 |
250 |
300 |
400 |
2 |
Master Cylinder Diameter |
mm |
φ350 |
φ400 |
φ450 |
φ500 |
3 |
Master Cylinder Stroke |
mm |
250 |
250 |
250 |
300 |
4 |
Mold Stroke |
mm |
660/840 |
750/840 |
750/840 |
750/840 |
5 |
Former Top Cylinder Stroke |
mm |
250 |
300 |
300 |
300 |
6 |
Upper Hot Plate Dimensions |
mm |
503X508 |
600X600 |
600×600 |
700×700 |
7 |
Lower Hot Plate Dimensions |
mm |
540X560 |
650X600 |
650×650 |
700×760 |
8 |
Heating Power |
kW |
13.5x2 |
18x2 |
18×2 |
18x2 |
9 |
Oil Pump Motor Power |
kW |
7.5x2 |
7.5x2 |
7.5×2 |
7.5×2 |
10 |
Oil Tank Capacity |
L |
450 |
450 |
450 |
500 |
11 |
System Pressure |
bar |
200 |
200 |
200 |
200 |
12 |
Total Power |
kW |
42 |
51 |
51 |
55 |
13 |
Dimensions |
m |
3.0×2.4×2.0 |
3.5×2.3×2.65 |
3.35×2.55×2.4 |
4.0×2.8×2.8 |
14 |
Weight |
T |
9 |
11.7 |
13.5 |
22 |

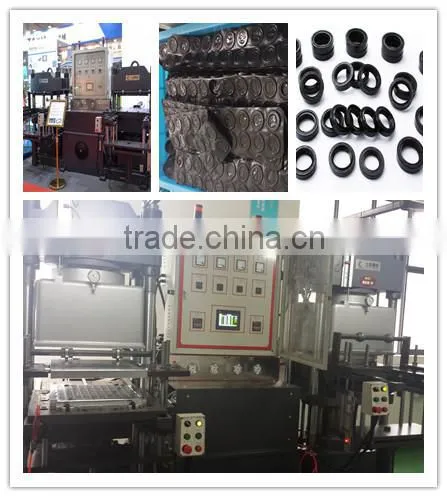

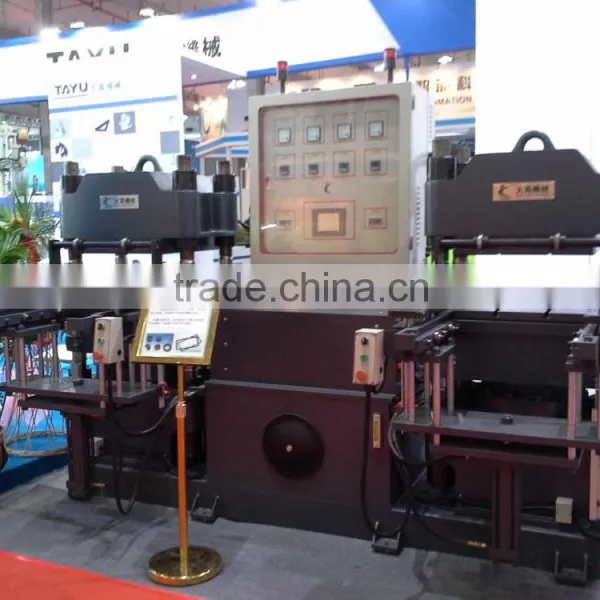

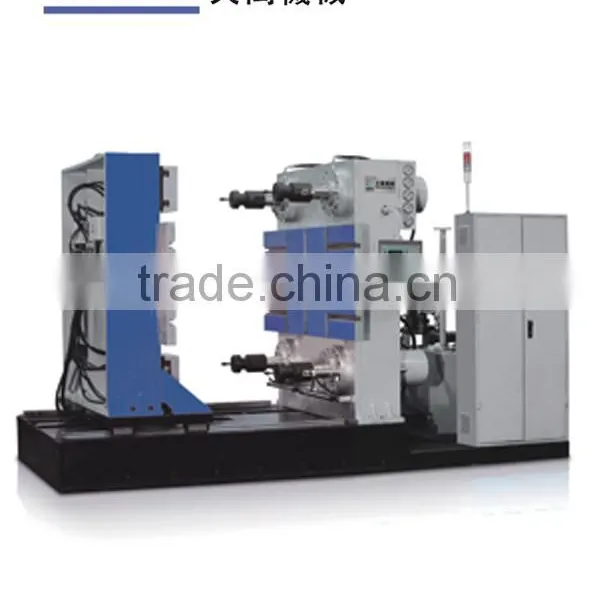

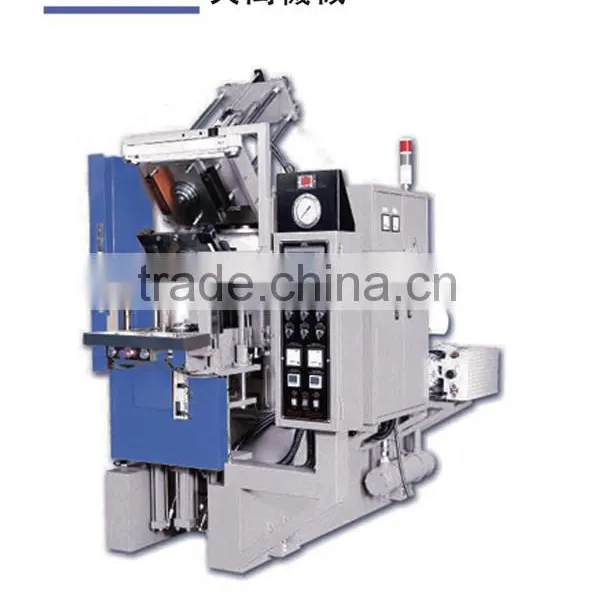

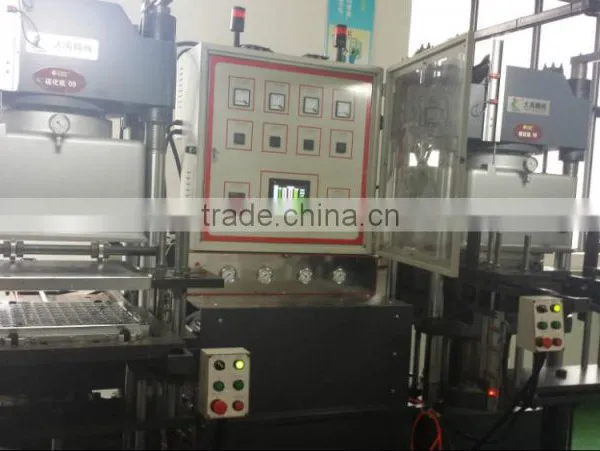

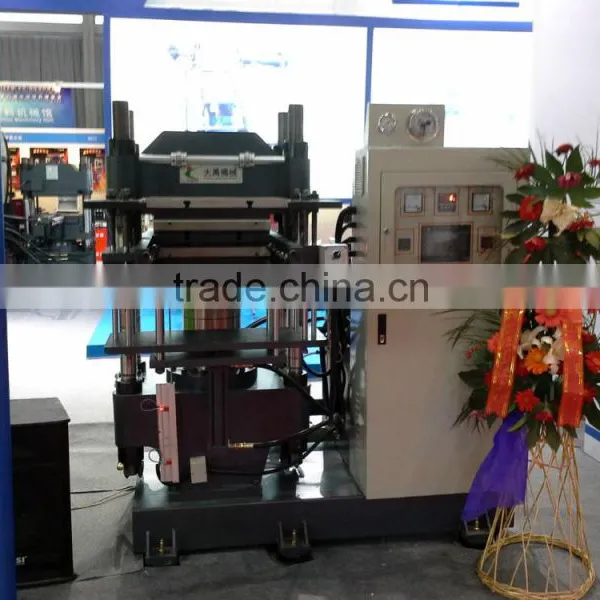

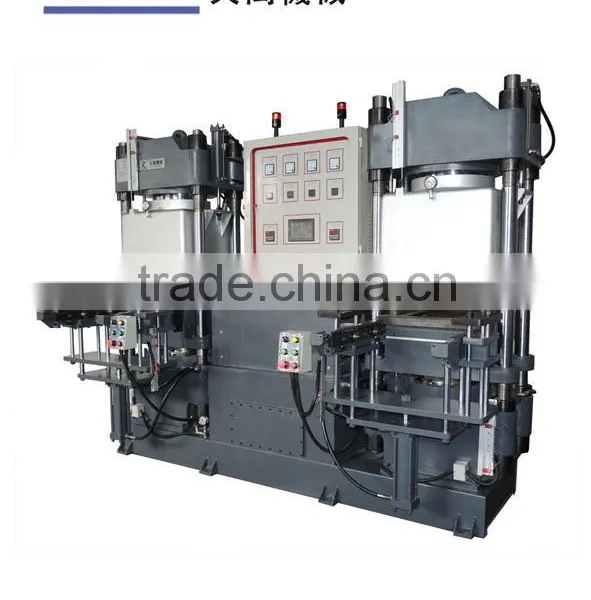

4. Machine and products pictures :
5. Package :
6. Our exhibition :
7.The main service item on our machine
- installation and debugging: Our engineers will teach you about the installation and debugging for free.
- Technology training : Our company will offer technology training for your operation.
- After-sales service: We will supply the free repairment on this machine for one year,
but will supply the maintenance lifetime. ( the service is only for natural damage)
