Vinyl Window With Security Bar

Specifications

vinyl window with security bar
lead-free vinyl extrusion
new construction or replacement
fiberglass screen
AAMA standard

Vinyl Window With Security Bar



- AAMA standard lead-free vinyl extrusion

- Standard white color

- Aluminum reinforcement on sash ( reinforcement on frame optional )

- New construction frame and replacement frame available

- Grids optional

- Security window and rolling shutter optional

- Glass thickness: 4mm/3mm+12A+4mm/4mm+9A+5mm

- Glass options: Clear glass / tinted glass /tempered glass / low-E glass / laminated glass

- With fiberglass mosquito screen

- High quality self-touch lock in white color





Vinyl Window with Security Bar Standard Size



Slider Standard Size			DV (XOX) Standard Size
Call-Out Size	Net Size Width	Net Size Height	Call-Out Size	Net Size Width	Net Size Height
6040	71 1/2	47 1/2	6040	71 1/2	47 1/2
6050	71 1/2	59 1/2	6050	71 1/2	59 1/2
5050	59 1/2	59 1/2	7040	83 1/2	47 1/2
5040	59 1/2	47 1/2	7050	83 1/2	59 1/2
5030	59 1/2	35 1/2	8040	95 1/2	47 1/2
4050	47 1/2	59 1/2	8050	95 1/2	59 1/2
4040	47 1/2	47 1/2
4030	47 1/2	35 1/2
4020	47 1/2	23 1/2
4016	47 1/2	17 1/2
3040	35 1/2	47 1/2
3030	35 1/2	35 1/2
3020	35 1/2	23 1/2
3016	35 1/2	17 1/2
2030	23 1/2	35 1/2
2020	23 1/2	23 1/2
Other custom size available

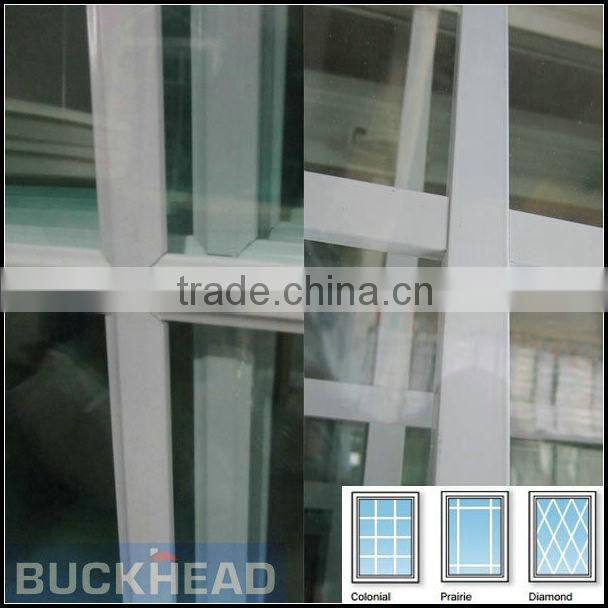

Vinyl Window With Security Bar Details

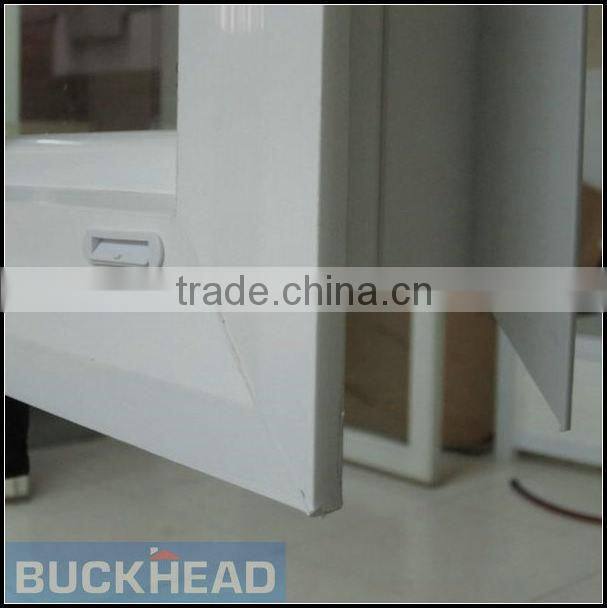

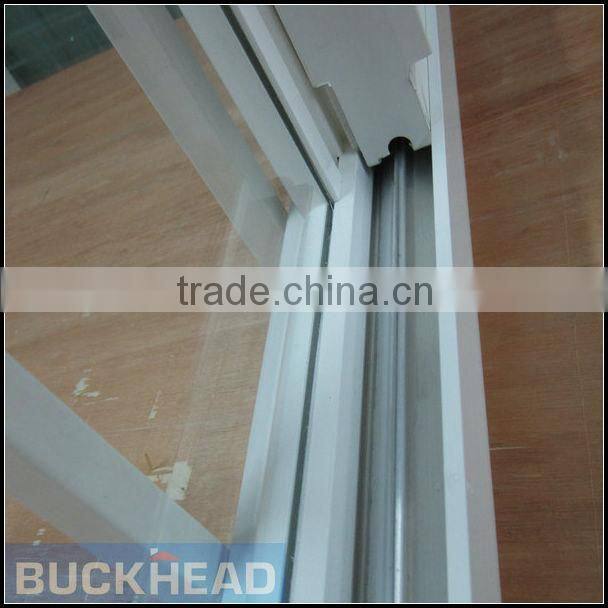

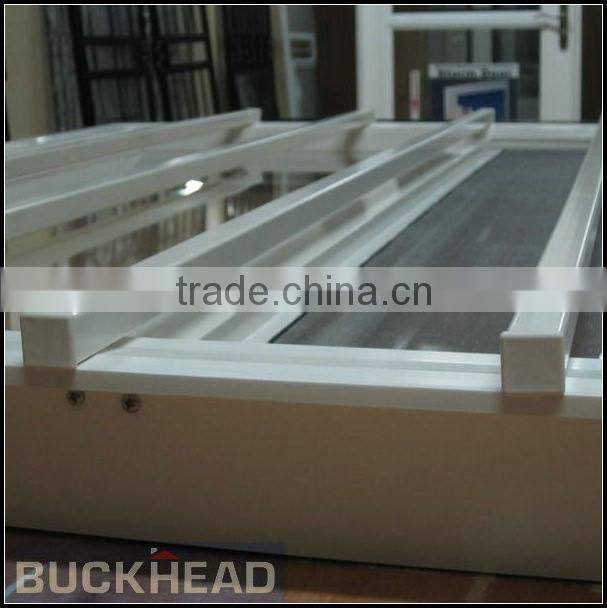

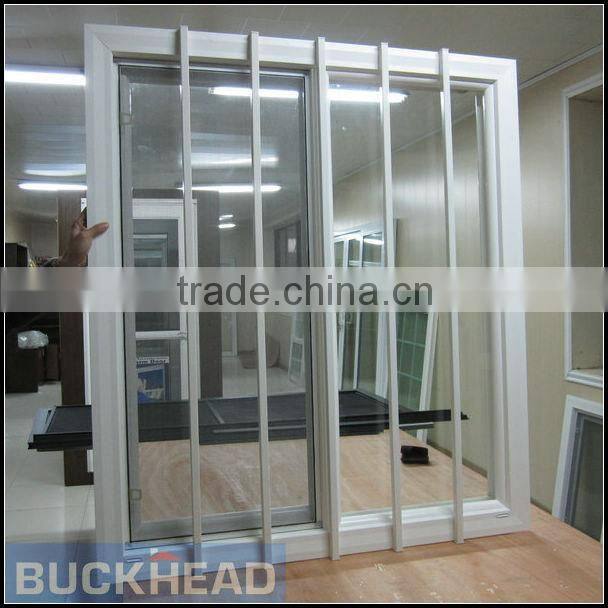

Vinyl Window with Security Bar (Workshop Pictures)

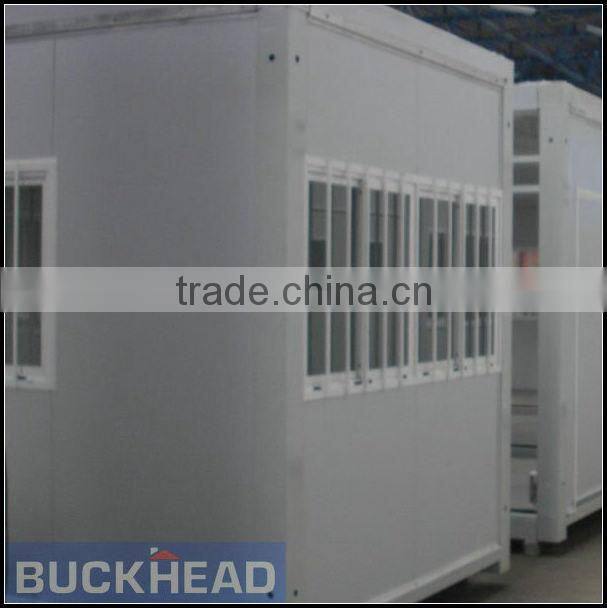

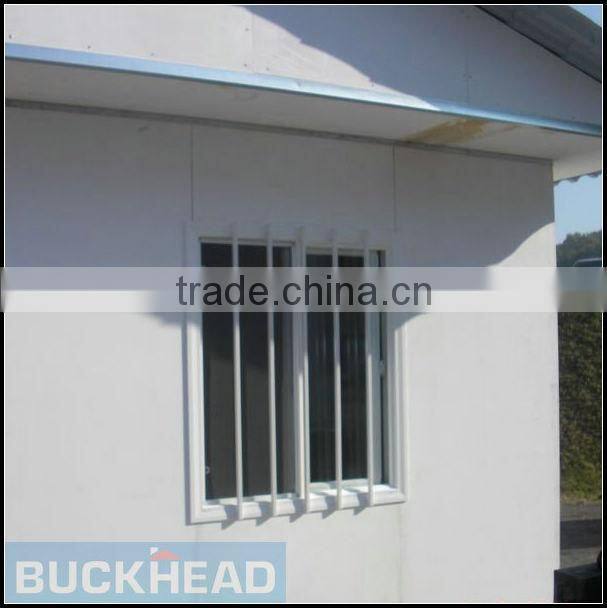

Vinyl Window with Security Bar Application

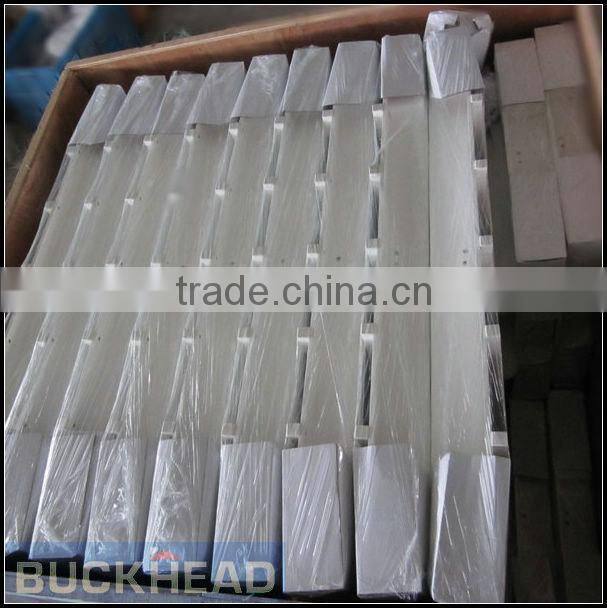

Vinyl Window with Security Bar Package





Vinyl Window with Security Bar was good combination of vinyl window and security window!
