Spain PN16/20/25 DN20/25/32/40/50/63/75/90/110mm PPR pipes and tubes fittings

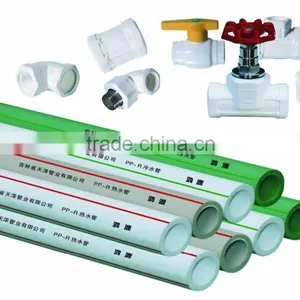

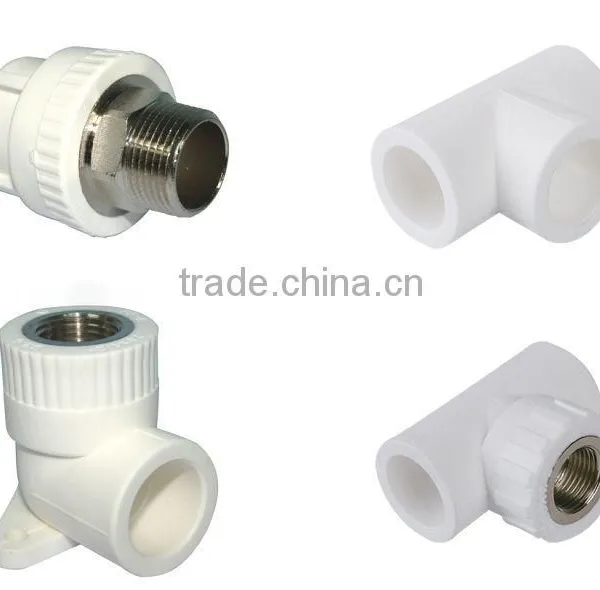

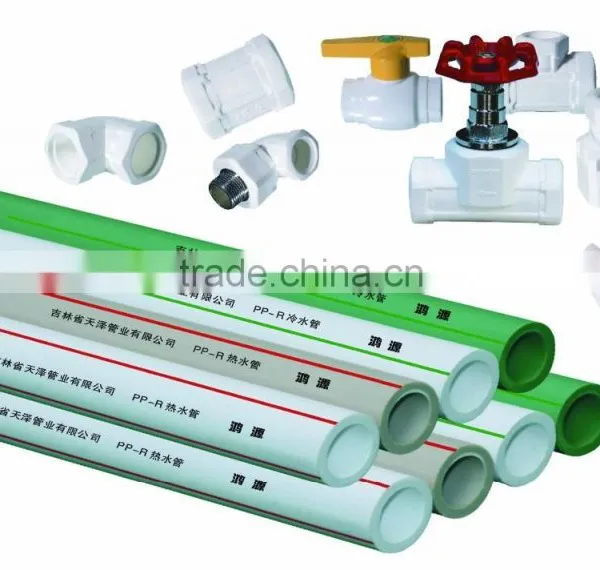

PP-R cold / hot water supply pipes/ tubes and fittings
Specification:
|
PN 1.25MPa |
PN 1.6MPa |
PN 2.0MPa |
PN 2.5MPa |
|
Outer Diameter dn(mm) |
Wall Thickness en (mm) |
Wall Thickness en(mm) |
Wall Thickness en(mm) |
Wall Thickness en(mm) |
20 |
2.3 |
2.8 |
3.4 |
|
25 |
2.3 |
2.8 |
3.5 |
4.2 |
32 |
3.0 |
3.6 |
4.4 |
5.4 |
40 |
3.7 |
4.5 |
5.5 |
6.7 |
50 |
4.6 |
5.6 |
6.9 |
8.4 |
63 |
5.8 |
7.1 |
8.7 |
10.5 |
75 |
6.9 |
8.4 |
10.3 |
12.5 |
90 |
8.2 |
10.1 |
12.3 |
15.0 |
110 |
10 |
12.1 |
15.1 |
18.3 |
Production Description:
Brand Name: HONGYUAN
Material: PP-R ( Random Polypropylene )
Place of Origin: Jilin China (Mainland)
Sizes: 20mm,25mm,32mm,40mm,50mm,63mm,75mm,90mm,110mm
Pressure Rating: 1.25MPa, 1.6MPa, 2.0MPa ,2.5MPa
Colors: light grey, white ,green or other colors on request
Standard: DIN8077/ 8078(German standard). GB/T18742.2-2002(National Standard)
Factory Certification: ISO,BV
Applications: Cold or hot water supply, heating system, industrial liquids transportation
Brief Introduction of Products:
PP-R(polypropylene random)pipes are adopted thermal welding technique during the project of hot / cold water transmission. The comprehensive technical performance and economic indicator of PP-R are much better than galvanized pipe, UPVC pipe, polyethylene-aluminum compound pipe, PE-X (cross-linked polyethylene) and polybutylene pipe etc. For this reason PP-R is the leading products and widely used for feed-water piping in developed countries in Europe and America.
Our company owns advanced facilities as well as very strong technical backstopping supported by Chinese Academy of Sciences and Peking Chemical Colleague, uses the raw materials of “Borealis” from Europe and “Borealis” from North Korea. Tianze has developed the new generation PP-R pipes and fittings, also developed dedicated fusion machine for PP-R pipe construction. All qualification can meet German Standard DIN8077 and DIN8078.
Nowadays PP-R pipes win more attention and have been used all over the whole world more widely with its excellent sanitization performance, high heat resistance, compression resistance, corrosion resistance, pliability and seismic performance which make PP-R the real environmental friendly pipe.
PP-R PIPES Features & Advantages:
1. Sanitization & Non-poison
2. High Temperature Resistance
3. Corrosion-Proof & Non-Fouling
4. Heat Preservation & Energy-Saving
5. Less Weight & High Strength
6. Beautiful Appearance & Higher Flow Capacity
7. Easy and Reliable Installation
8. Long Using Life
9. PP-R is recyclable and environmental friendly
ISO9001:2008 Certificate
Trademark Registration Certification
WHY choose us to cooperation?
About us:
Outstanding advantages as below:
1. Authenticity and Reliability: Jilin Tianze Pipe Industry Co., Ltd. is a verified company by some professional third-party inspection companies: ISO, BV (BUREAU VERITAS) and .
2. Patented product——Manifold: This is designed and developed individually by our independent R&D team. Especially using plastic instead of steel/copper is a great advance.
3. Production facilities are imported from South Korea: Computer monitoring system, totally enclosed automatic feeding system, advanced technology processes, perfect testing instruments.
4. Main raw materials: South Korea LG raw materials (XL1800), SK global chemical DX 800 and HONAM 8100GX, without any reclaimed filler or damaged material in the products.
5. Accessories: imported from Japan and Europe. Such as Germany Degussa DTBP cross-linking agent, Switzerland CIBA A/O1076 major antioxidants, PS802FL auxiliary antioxidants.
6. Years of production & service experience: High-quality products, Customer First..
7. Stable domestic market and stable stock.
Corporate Culture:
Our vision:Provide high-quality green environmental protection pipe system for construction industry.
Our targets: Mutual respects, excellent service, commit improvement, create values
Our management concept: Humanized, militarize and scientific
Our service concept: Thankfulness, dedication, sincerity, high efficiency and win-win
Our mission: Create the outstanding brand in the plastic pipe field.
Our motto: Development and innovation is of top priority.

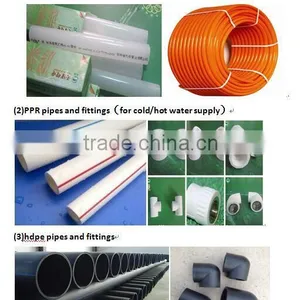

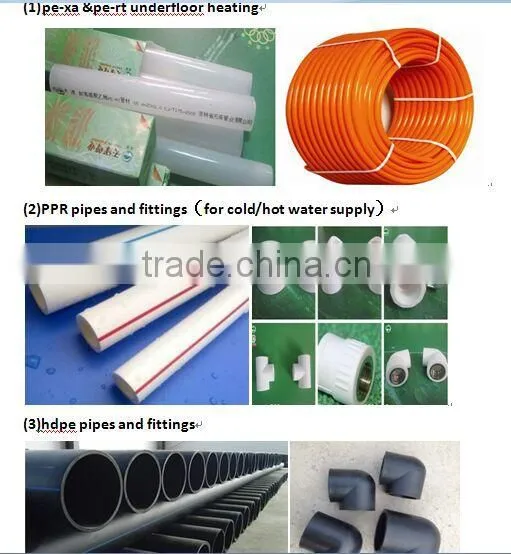

We are the manufacturer specialized in producing many different kinds of pipes and fittings more than 6 years, mainly dedicated to developing and producing “Hongyuan” brand PE-Xa heating pipes, PE-RT geothermal pipes, PP-R hot/cold water pipes, PP-R fittings and manifolds.
If you are interested in any products, please feel free to contact us for more information at anytime.
