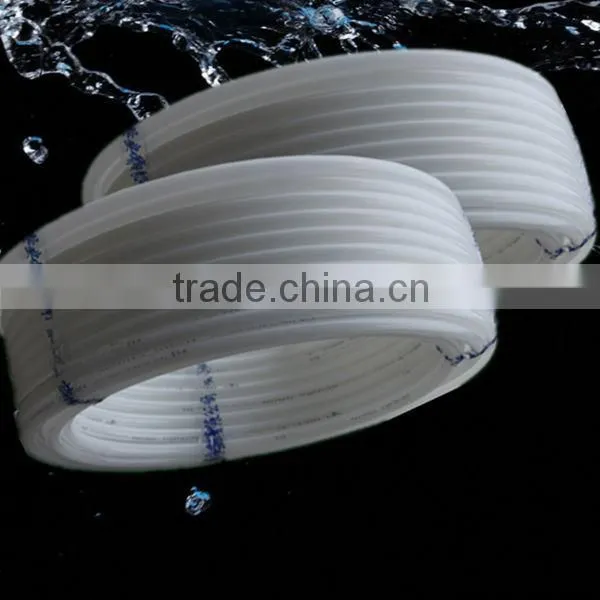

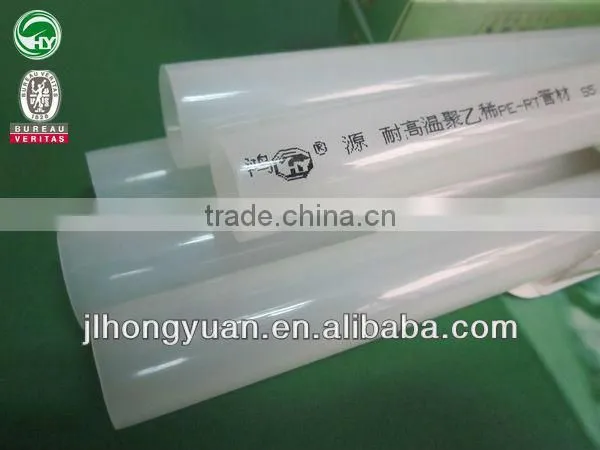

PE-RT Tube for plumbing/floor heating system

PERT Heating Tubing for plumbing&underfloor/floor heating system

Production Specification:

1. Size: 16*2.0mm, 20*2.0mm, 20*2.3mm, 25*2.3

2. Hydrostatic resistance test:No leakage,no crack
3. Thermal stability:No leakage, no crack
4. Longitudinal retraction rate: ≤3%
5. Raw material is SK YUCLAIR DX800.

6. Bending radius:≥5D
7. Heat Conductivity: 0.45w/mk
8. Coefficient of thermal expansion:0.025mm/(m·k)
9. Continuous operating temperature: -20° c ~ +70°c .

10. Packing:200m/coil(About 22kg );300m/coil (About 33kg )

11. PERT(meter/number of turns) :

    13 meters / 1 turns

    29 meters / 2 turns

    45 meters / 3 turns

    61 meters / 4 turns

    79 meters / 5 turns

    99 meters / 6 turns

    119meters /7 turns

    140meters /8 turns

    161meters /9 turns

    185meters/10turns

    209meters/11turns

    234meters/12turns

    259meters/13turns

    286meters/14turns

    300meters/15turns

Brief Introduction of Products:

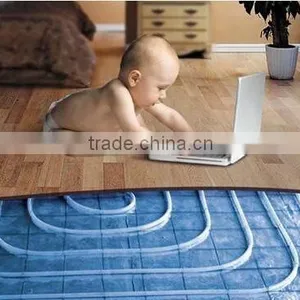

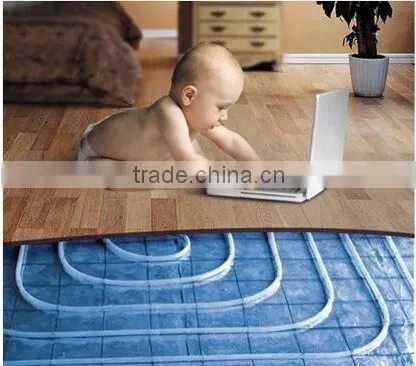

Plastic material pipes are more and more important and popular in room heating, cooling and water service and sanitary distribution system. PE-RT means Temperature-Resistance Polyethylene. PE-RT pipe for heating floor is made of YUCLAIR DX800 produced by Korean SK Corp, and recognized as an ideal floor heating product for its sanitary conditions, favorable standards, and good heat radiation. When the hot water pipes are circling under the floor, the heat will be dispersed through the floor.

It is widely use in hot & cold water distribution, floor heating system. residential or industrial plumbing.

Because high density polyethylene can not bear high temperature which results in its failing to solve indoor hot water supply problem. Therefore, polyethylene of raised temperature resistance (PE-RT) was developed in USA as a new kind of pipeline material able to bear the high temperature. Besides all the advantages of high density polyethylene, it’s well done in resolving problem of hot water supply. PE-RT is copolymer of comonomer based on ethylene-octane. It can control appropriately the number and distribution on the branched chain of polyethylene molecular chain during polymerization, which makes PE-RT material gain excellent physical mechanics performance and higher heat resistant performance without crosslinked. It can be used 50 years or so under the circumstance of transmitted water temperature 70°C(centigrade degree)& the pressure of 0.97MPa.

PE-RT physical mechanics performance:

PE-RT materials own excellent physical mechanics performance without crosslinked:

1.Good thermal stability & long-term resistance of pressure

2.Excellent resistance to environmental stress cracking performance

3.Good flexibility and toughness

4.Ability of low-temperature impact resistance

5.Excellent health performance
