Specifications
1.Corrosion resistance2.Good Heat preservation
3.Non- toxic,higher flow capacity
4.BV,ISO certificate
5.SK YUCLAIR DX800.

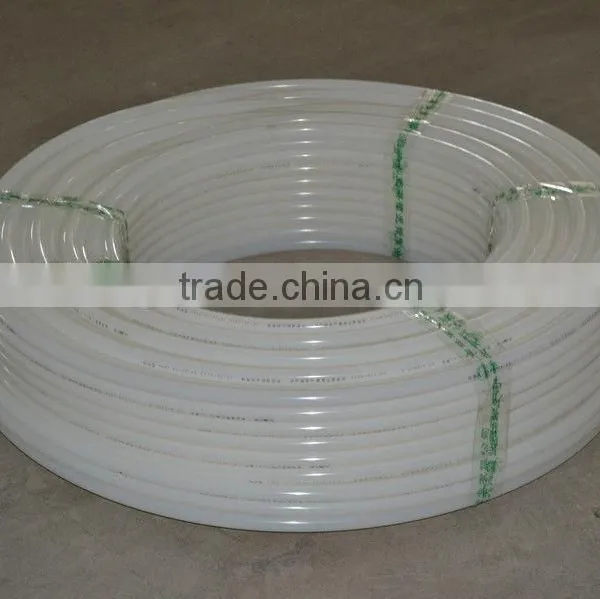

PERT Heating Tubing for plumbing&underfloor/floor heating system
Production Specification:
1. Size: 20*2.0mm, 20*2.3mm, 25*2.3mm, 25*2.4mm
2. Hydrostatic resistance test:No leakage,no crack
3. Thermal stability:No leakage, no crack
4. Longitudinal retraction rate: ≤3%
5. Raw material is SK YUCLAIR DX800.
6. Bending radius:≥5D
7. Heat Conductivity: 0.45w/mk
8. Coefficient of thermal expansion:0.025mm/(m·k)
9. Continuous operating temperature: -20° c ~ +70°c .
10. Packing:200m/coil(About 22kg );300m/coil (About 33kg )
11. PERT(meter/number of turns) :
13 meters / 1 turns
29 meters / 2turns
45 meters / 3turns
61 meters / 4turns
79 meters / 5turns
99 meters / 6turns
119meters /7 turns
140meters /8 turns
161meters /9 turns
185meters/10turns
209meters/11turns
234meters/12turns
259meters/13turns
286meters/14turns
300meters/15turns
PE-RT Pipe Brief Introduction:
The PE-RT pipe inherit the good flexibility, heat conductivity, chemical inertness from PE material. Meanwhile the design of special molecule and synthesis production enable it to be higher resistant to heat and pressure under the high temperature condition. It is suitable for home heating and most housing applications.
Features:
1. Good quality and performance
The PE-RT pipe adopts SK DX800 to ensure the high quality and high performance. We have drafted the PE-RT national standard and "Hongyuan"Brand is the recommended brand by the CCMSA.
2. High durability and security
The pipe features good homogeneity, high stability, creep resistance, allowing it to be durable in the heating and hot water supply systems for over 50 years. The cold cracking temperature as low as -70°C enables it to be constructed in low temperature. The resistance to external force impact is much higher than other pipes.
3. Easy performance and maintenance
It is easy to be bent and convenient to construct with. Small radius Rmin=5D can be reached without bouncing. It can be constructed without pre-heating when at low temperature. This advantage benefits the construction and reduces the cost. If damaged by external force, the pipe can be maintained by hot melting technology, which is safe, convenient and fast. With low construction cost and low maintenance cost, it is really cost-effective.
Specifications:
| DIN Standard PERT Heating pipe | ||||||
| DN | outside diameter, mm | inside diameter, mm | Nominal Thickness, mm | |||
| min | max | min | max | S5 | S4 | |
| 20mm | 20.0 | 20.3 | 16.0 | 16.3 | 2.0 | 2.3 |
| 25mm | 25.0 | 25.3 | 20.4 | 20.7 | 2.3 | 2.4 |
PE-RT physical mechanics performance:
PE-RT materials own excellent physical mechanics performance without crosslinked:
1.Good thermal stability & long-term resistance of pressure
2.Excellent resistance to environmental stress cracking performance
3.Good flexibility and toughness
4.Ability of low-temperature impact resistance
5.Excellent health performance
End Products :
PE-RT Package:
PE-RT Samples and Sample's Package:
Tianze Factory:
ISO 9001:2008 Certificate:
Trademark Registration Certificate
WHY choose us to cooperation?
About us:
Outstanding advantages as below:
1. Authenticity and Reliability: Jilin Tianze Pipe Industry Co., Ltd. is a verified company by some professional third-party inspection companies: ISO, BV (BUREAU VERITAS) and .
2. Patented product——Manifold: This is designed and developed individually by our independent R&D team. Especially using plastic instead of steel/copper is a great advance.
3. Production facilities are imported from South Korea: Computer monitoring system, totally enclosed automatic feeding system, advanced technology processes, perfect testing instruments.
4. Main raw materials: South Korea LG raw materials (XL1800), SK global chemical DX 800 and HONAM 8100GX, without any reclaimed filler or damaged material in the products.
5. Accessories: imported from Japan and Europe. Such as Germany Degussa DTBP cross-linking agent, Switzerland CIBA A/O1076 major antioxidants, PS802FL auxiliary antioxidants.
6. Years of production & service experience: High-quality products, Customer First..
7. Stable domestic market and stable stock.
Corporate Culture:
Our vision:Provide high-quality green environmental protection pipe system for construction industry.
Our targets: Mutual respects, excellent service, commit improvement, create values
Our management concept: Humanized, militarize and scientific
Our service concept: Thankfulness, dedication, sincerity, high efficiency and win-win
Our mission: Create the outstanding brand in the plastic pipe field.
Our motto: Development and innovation is of top priority.
We are the manufacturer specialized in producing many different kinds of pipes and fittings more than 6 years, mainly dedicated to developing and producing “Hongyuan” brand PE-Xa heating pipes, PE-RT geothermal pipes, PP-R hot/cold water pipes, PP-R fittings and manifolds.
If you are interested in any products, please feel free to contact us for more information at anytime.
