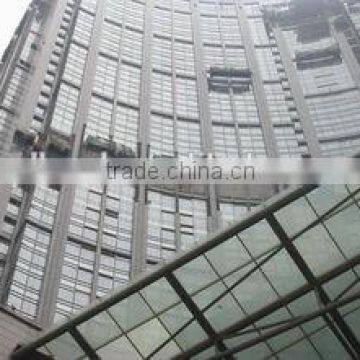

Platform is an alternative to traditional scaffold , reduce labor intensity and improve work efficiency, and the new high operating equipment can be reused. Currently , the use of the gondola building has become a trend , has been widely recognized in the construction of high-rise multi-storey high building facades , and curtain wall installation , construction and maintenance of clean exterior insulation and other high-altitude operations.
At the same time can be used for large tanks , bridges and dams and other engineering operations. The use of this product , you can avoid scaffolding . So that greatly reduce the cost of construction , construction costs only 28 % of the traditional scaffolding , and a substantial increase in work efficiency. Suspended Platform flexible operation , the shift is easy, convenient and practical, safe and reliable.
Name | Technical parameter | ||
Model | ZLP800 | ZLP630 | |
Rated load | 800Kg | 630Kg | |
Lifting speed | 8-10m/min | 8-10m/min | |
Platform Dimension L×W×H(mm) | 7500×720×1300 | 6000×720×1300 | |
Lifting Height | 100 m | 100 m | |
Cable | 100 m | 100 m | |
Steel rope (diameter) | 9.1mm | 8.3mm | |
Hoist | Power | 1.8KW*2 | 1.5KW*2 |
Voltage | 380V/50HZ | 380V/50HZ | |
Safety lock | Permission force of impact | 30KN | 30KN |
Locking Cable Angle | 3°~8° | 3°~8° | |

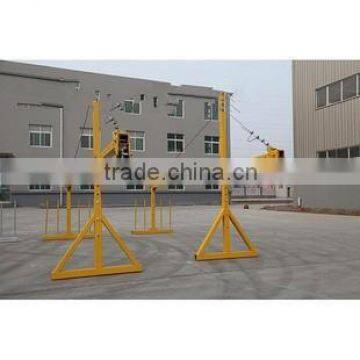

Suspension mechanism | Front beam overhang | 1.3~.1.5m | 1.3~.1.5m |
Support adjustable height | 1.44~2.14m | 1.44~2.14m | |

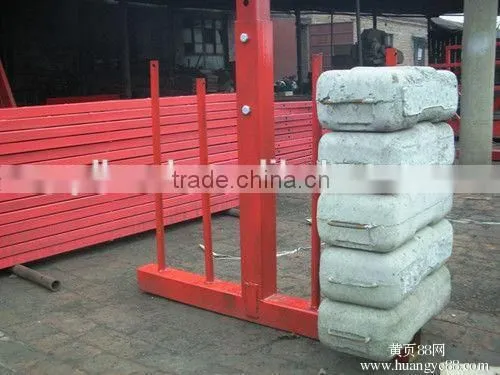

Counterweight | 1000KG | 1000KG | |
20’ft container | 8 sets | 9 sets | |

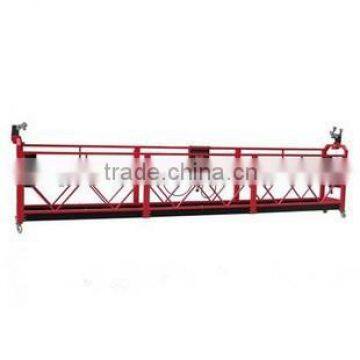

Round shape hanging basket

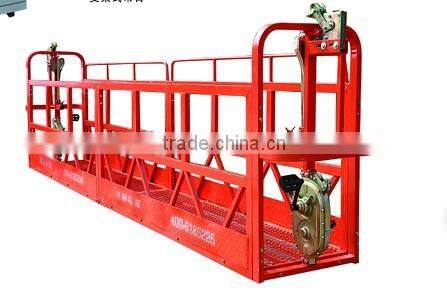

Power driven hanging basket
Pedaling hanging basket

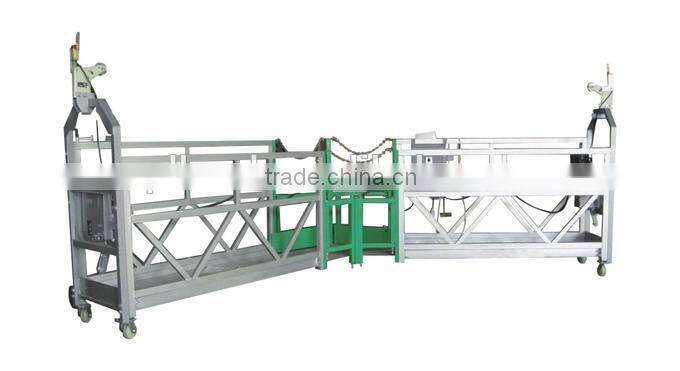

90 Degree
other products:
Elevator:
Elevator | Model specifications | Lt8.0 | |
Rated lifting power/kn | 8 | ||
Electric motor | Power/kw | 1.5 | |
Voltage/v | 380 | ||
Rotating speed/(r/min) | 1400 | ||
Braking torque/(N.m) | 15 | ||

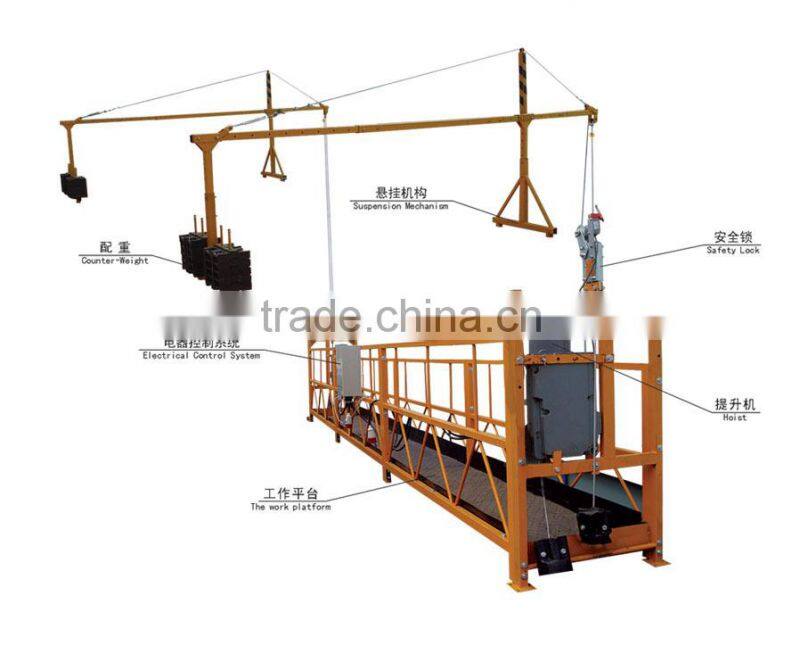

Structure

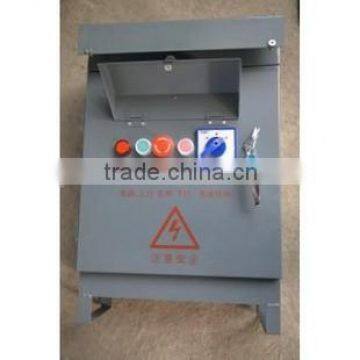

Distribution Box
Distribution box has two, three, four, five groups of six groups, etc.

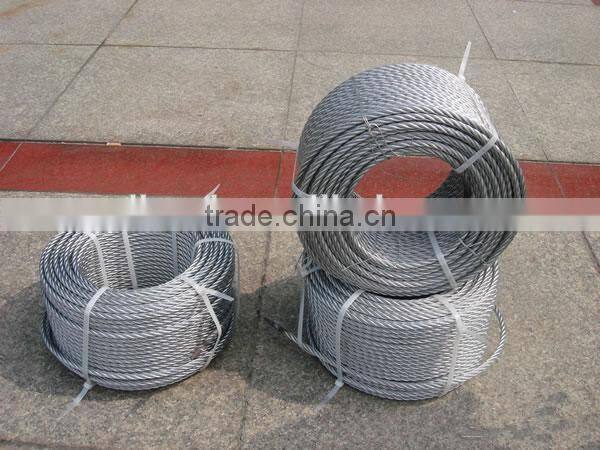

steel wrie rope:
Steel wrie rope | Diameter(mm) | 8.6-9.1 |
Tensile resistance | 1824-1888 | |
Breaking force(kn) | 32.3-40.5 |
saef lock:
Safr lock | Impact force allowed/kn | 20 |
Locking cable angle | <=8 |
Safety rope
ourcompany
packing
Main market
1.Q:Are you a factory or trading company?
A:We are factory,passed CE,BV certification.
2.Q:Where is your factory?How can i visit ?
A:Our factory located in qingdao city.You can fly to qingdao liuting airport,then we can pick you up to our facotry to visit.Warm welcome visit us.
3.Q:How does your factory control the quality of machines and after sales service?
A:Our machines passed CE,BV,ISO,SGS certification,pls confirm the quality.All our machines have 1 year guarantee, will provide lifetime maintenance.
Why choose us?
We are ready to give them a turnkey solution, by designing the line according to their space, designing all
electrical Installation, water installation, civil foundation, training their people and proving that they will
get the targets for production according to the design.
The cost of the machinery they are paying is one off but the correct production design and machine
configuration in order to get the production targets is the most important point. Even if somebody got the
cheapest machine quotation, at the end of the day, what is count are the production quantity, quality and the
durability .so to cover the investment in the correct time.
If you are interested in our machine,or have any doubts,welcome to contact us~~
