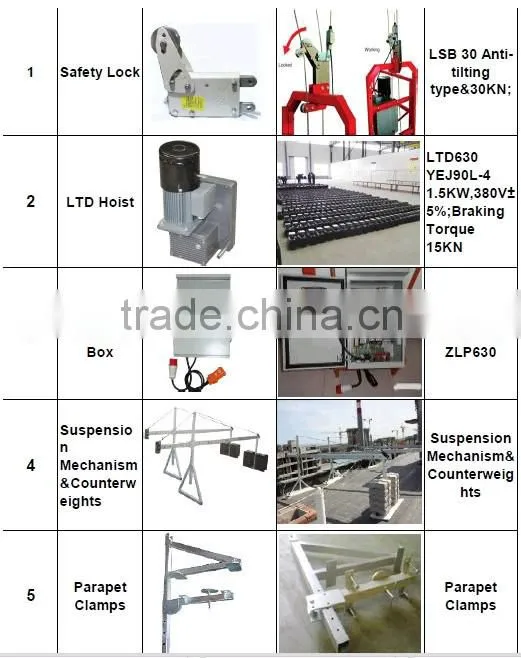

1.Parts contains:
1. Suspended Cage: Steel or Aluminum Alloy (plastic coating or hot galvanization)

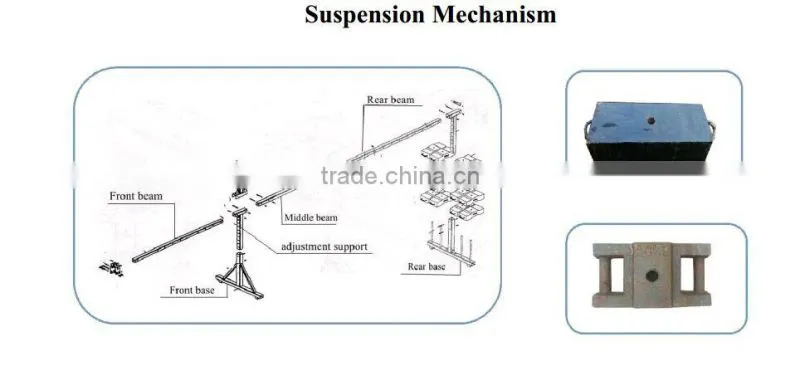

2. Suspension Mechanism: Steel (plastic coating or hot galvanization)

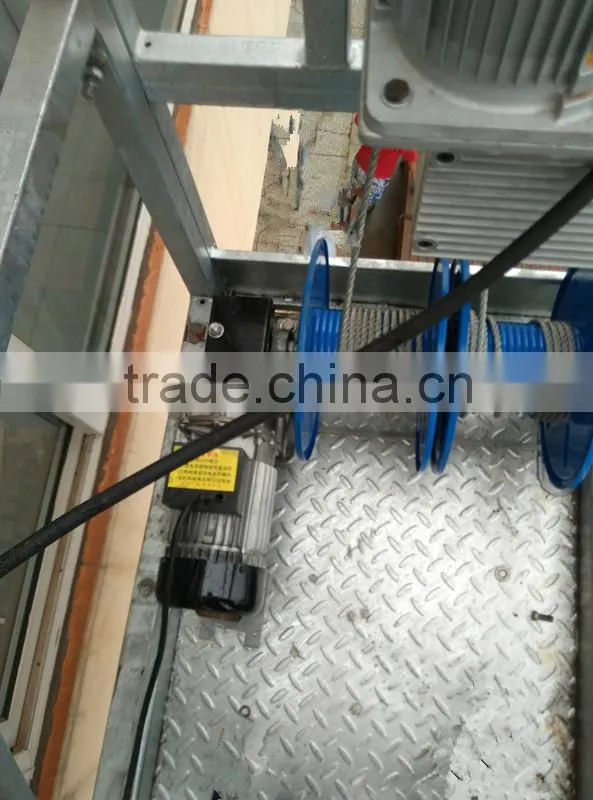

3. Electric hoists: LTD5, LTD6.3 or LTD8
4. Safety Lock: LSB30
5. Electric control box: Along with hoists
6. Steel wire rope: 8.3mm or 8.6mm
7. Power cable: 1.5mm²,2.5 mm², 4 mm² or 6 mm²
8. Counterweights: Cement or Cast Iron
9. Spare parts
Model |
ZLP250 |
ZLP500 |
ZLP630 |
ZLP800 |
ZLP1000 |
Material of platform |
Steel/Aluminum alloy |
||||
Appearance treatment |
Spray painting/ Hot galvanizing |
||||
Rated load |
250KG |
500kg |
630kg |
800kg |
1000kg |
Max lifting height |
200m |
200m |
200m |
200m |
200m |
Steel wire rope |
Ø8.3mm |
Ø8.3mm |
Ø8.3mm |
Ø8.6mm |
Ø8.6mm |
|
Platform Dimension L×W×H (mm) |
3000x690x1300 |
4000×690×1300 |
6000×690×1300 |
7500×690×1300 |
7500×690×1300 |
Motor power |
1.5KW |
1.5KW |
1.5KW |
1.8KW |
2.2KW |
Voltage |
|
Single phase/3-phase 110/220/380/415V 50/60HZ |
|||
Load-electron Limited device(choose)
Equipment of red in wire(choose)
Wire rope meter(choose)

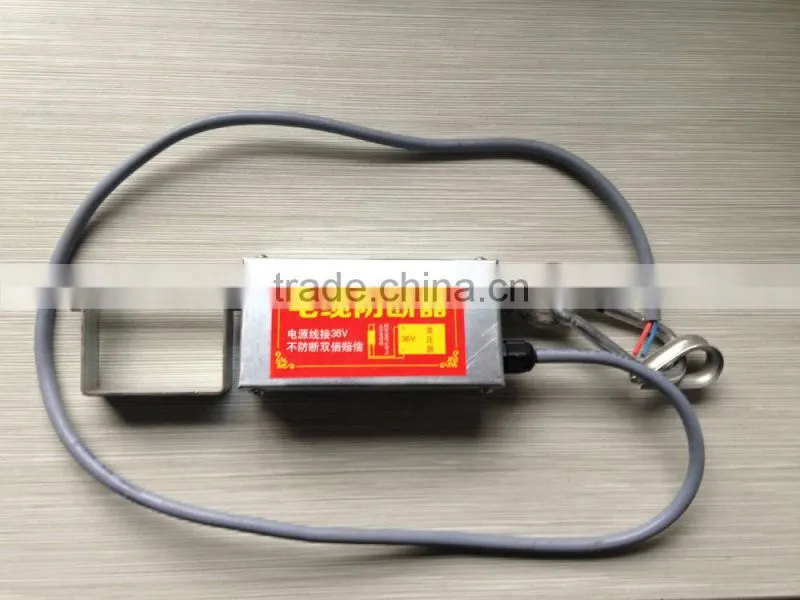

Cable preventing fracture device(choose)
