Home > Manufacturing & Processing Machinery > Lifting Equipment > Lifting Table > ZLP630 Construction Gondola

ZLP630 Construction Gondola

Name: ZLP630 Construction Gondola
Brand: construction gondola
SKU: 101448713
Availability: InStock

US$ 1,000 - 1,500 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

construction gondola

Model Number:

ZLP-630

Contact Supplier Request Quote Chat Now

Qingdao Huizhi Runde International Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name construction gondola

Model Number ZLP-630

ZLP630 construction gondola

Platform is an alternative to traditional scaffold , reduce labor intensity and improve work efficiency, and the new high operating equipment can be reused. Currently , the use of the gondola building has become a trend , has been widely recognized in the construction of high-rise multi-storey high building facades , and curtain wall installation , construction and maintenance of clean exterior insulation and other high-altitude operations.

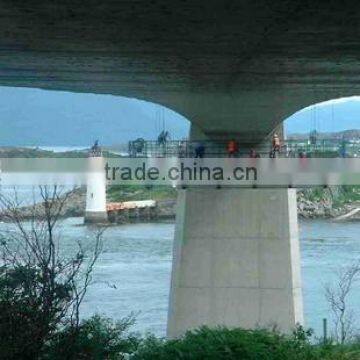

At the same time can be used for large tanks , bridges and dams and other engineering operations. The use of this product , you can avoid scaffolding . So that greatly reduce the cost of construction , construction costs only 28 % of the traditional scaffolding , and a substantial increase in work efficiency. Suspended Platform flexible operation , the shift is easy, convenient and practical, safe and reliable.

Technical parameters

Name		Technical parameter
Model		ZLP800	ZLP630
Rated load		800Kg	630Kg
Lifting speed		8-10m/min	8-10m/min

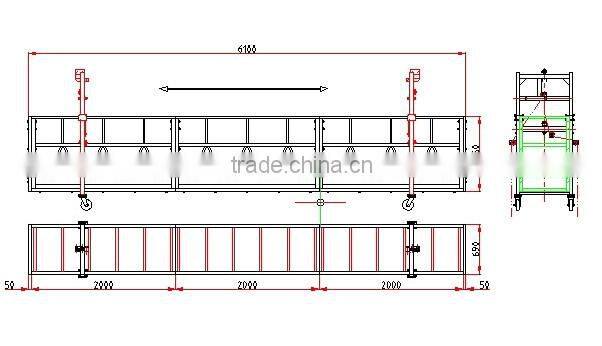

Platform Dimension L×W×H(mm)		7500×720×1300	6000×720×1300
Lifting Height		100 m	100 m
Cable		100 m	100 m
Steel rope (diameter)		9.1mm	8.3mm
Hoist	Power	1.8KW*2	1.5KW*2
Hoist	Voltage	380V/50HZ	380V/50HZ
Safety lock	Permission force of impact	30KN	30KN
Safety lock	Locking Cable Angle	3°~8°	3°~8°
Suspension mechanism	Front beam overhang	1.3~.1.5m	1.3~.1.5m
Suspension mechanism	Support adjustable height	1.44~2.14m	1.44~2.14m
Counterweight		1000KG	1000KG
20’ft container		8 sets	9 sets

Round shape hanging basket

Power driven hanging basket

Pedaling hanging basket

90 degree

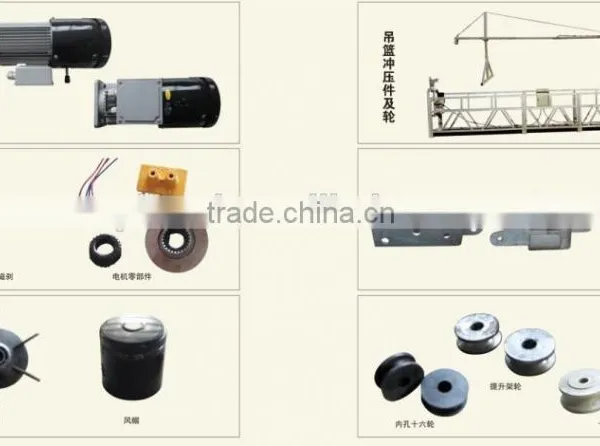

other products:

Elevator:

Elevator	Model specifications		Lt8.0
	Rated lifting power/kn		8
	Electric motor	Power/kw	1.5
		Voltage/v	380
		Rotating speed/(r/min)	1400
		Braking torque/(N.m)	15

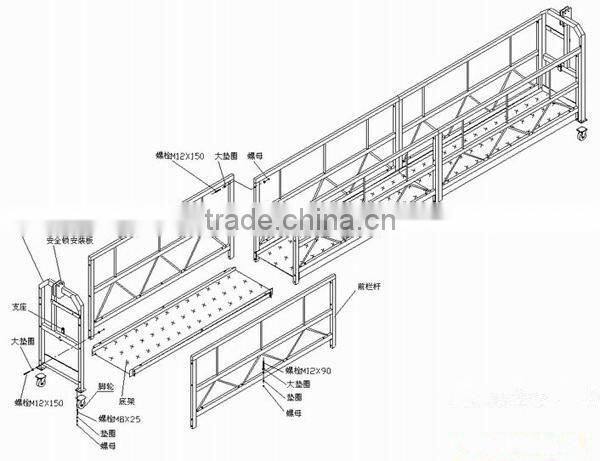

Structure

Distribution Box

Distribution box has two, three, four, five groups of six groups, etc.

steel wrie rope:

Steel wrie rope

Diameter(mm)

8.6-9.1

Tensile resistance

1824-1888

Breaking force(kn)

32.3-40.5

saef lock:

Safr lock	Impact force allowed/kn	20
Safr lock	Locking cable angle	<=8

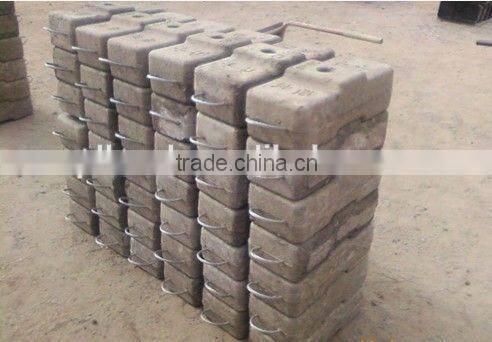

Counterweight

Safety rope

ourcompany

packing

What should you do when working on a suspended platform ?

Ensure that platform is installed and maintained according to job requirements, safety regulations, standards and the manufacturer's specifications.
Inspect all equipment before erecting and before each shift.
Use a separate safety harness attached to an independent life line for each worker. Maintain lanyard attachment at highest point possible.
Ensure that suspended platform roof beams and attachments are secure.
Ensure that the roof or parapet wall is structurally sound to support either outriggers or cornice hooks.
Check for kinked or damaged ropes.
Secure all ropes at anchor ends.
Ensure that all safety equipment, stops, override switches and brakes function properly.
Prevent contact between welding or grinding equipment and wire safety or suspension ropes.
Secure hand tools to the platform.
Ensure that power source is secured and properly grounded.
Secure platform when not in use.
Ensure that guardrails and toe boards are in place.
Extend suspension ropes completely to the ground or terminate with wire rope clips to prevent the stage from running off the end of the ropes.
Test by raising the fully loaded platform a few feet off the ground before going aloft.

What should you not do ?

Do not exceed platform load capacity.
Do not enter or leave the platform other than at ground level or at other safe access points.
Do not allow electric cables or connections to lie in gutters or other areas where water can collect.
Do not work near exposed electrical circuits or equipment.
Do not join platforms unless they are designed for this purpose.
Do not use damaged or defective equipment.
Do not alter, substitute or remove components of platform.
Do not use life line for raising or lowering tools or materials.
Do not move work platform unless all workers on it are protected by individual safety belts and lines.
