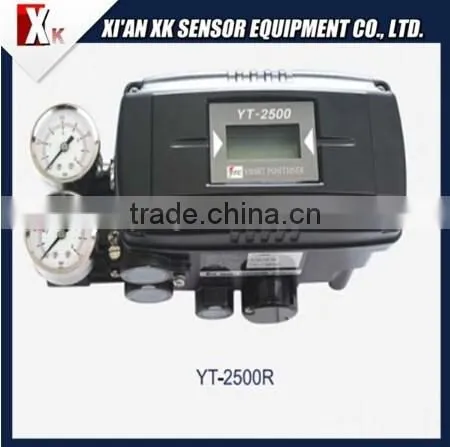

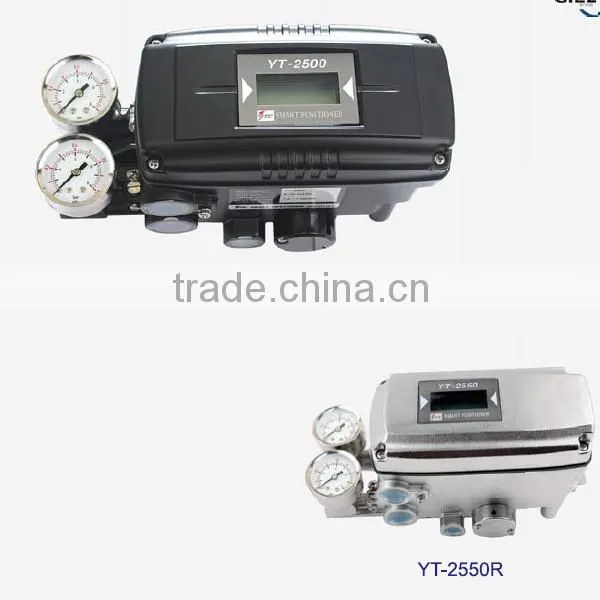

South Korea YTC YT-2500, YT-2550 smart electric valve positioner
Product Description:
YT-2500 Smart Valve Positioner accurately controls valve stroke, according to input signal of 4-20mA, which is being input from the controller. In addition, built-in micro-processing operator optimizes the positioner's performance and provides unique functions such as Auto calibration, PID control, Alarm, and Hart protocol.
Standard Specifications:
Item.Type |
YT-2500 |
YT-2550 |
||
Input Signal |
4-20mA DC |
|||
Supply Pressure |
0.14-0.7MPa(1.4-7bar) |
|||
Stroke |
Linear Type |
10-150mm |
||
Rotary Type |
0-90° |
|||
Impedance |
Max.500Ω@20mA DC |
|||
Air Connection |
PT(NPT)1/4 |
NPT1/4 |
||
Gauge Connection |
PT(NPT)1/8 |
NPT1/8 |
||
Conduit |
PF1/2(G1/2) |
|||
Ambient Temp |
Operating Temp |
(-30°C~80°C)/(-22~176°F) |
||
Explosion Temp |
(-40°C~60°C T5)/(-40°C~40°C T6) |
|||
Linearity |
±0.5% F.S |
|||
Hysteresis |
±0.5% F.S |
|||
Sensitivity |
±0.2% F.S |
|||
Repeatability |
±0.3% F.S |
|||
Air Consumption |
Fail Freeze |
0.01LPM(sup=0.14MPa) |
||
Fail Safe |
6LPM(sup=0.14MPa) |
|||
Flow Capacity |
60LPM(sup=0.14MPa) |
|||
Output Characteristics |
Linear,EQ%,Quick Open user set(16 Point) |
|||
Material |
Aluminum Diecasting |
Stainless Steel316 |
||
Enclosure |
IP66 |
|||
Explosion Proof Type |
Exia IIC T5/T6 |
|||
Weight |
1.5kg(3.3Ib) |
2.9kg(6.4Ib) |
||
