Machine Manufacturers hanging basket

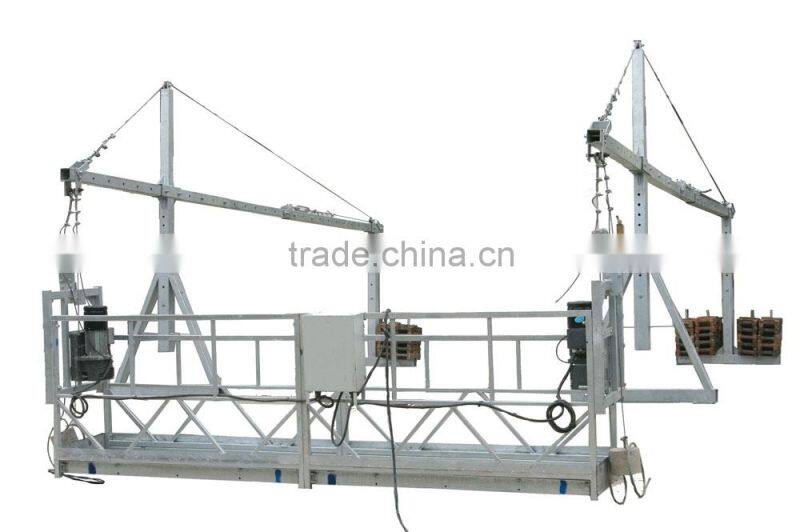

ZLP series suspended platform can be devided into two kinds of specifications,ZLP630 and ZLP800.The main components include platform,hoist mechanism,safety lock,suspension mechanism and electric control system.
Brief introduction of hanging basket(platform):
Suspended Platform/ Suspension Platform/ Suspended Scaffolding Platform:
We can manufacture various specifications (ZLP500,ZLP630,ZLP800 & ZLP1000) and special temporary suspended platform according to customers′ requirements.
Application of hanging basket(platform):

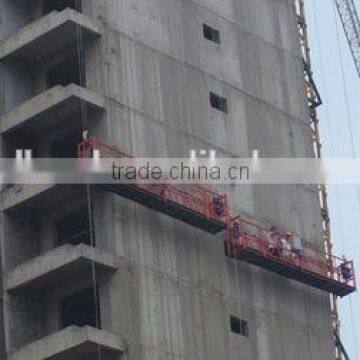

1. High-rise building: Decoration, construction for external wall, installation of curtain wall and external
components,repairing, checking, maintenance and cleaning for external wall.
2. Large-scale project: construction,repairing and maintenance for large tank, chimney, dams, bridges,derrick.
3. Large ships: welding, cleaning and painting.
4. billboard: installation billboard for high-rise building.
Name |
Suspended Platform |
||
Model |
ZLP630 |
ZLP800 |
|
suspended Platform |
Rated Load |
630KG |
800KG |
Rated Lifting Speed |
9.3±0.5m/min |
8.2±0.5m/min |
|
Length |
6000mm |
7500mm |
|
Surface Proceeding |
steel or aluminum |
||
steel |
Cold/Hot-dip Galvanized,Spraying for platform and suspension |
||
aluminum |
Hot-dip Galvanized for suspension,aluminum for suspension |
||
Lifting Height |
100m |
100m |
|
Max Lifting Height |
200m |
200m |
|
Hoist |
Type |
LTD6.3 |
LTD8.0 |
Braking Torque |
6.3KN |
8.0KN |
|
Power |
1.5KW*2 |
1.8KW*2 |
|
Voltage |
220V/230V/380V/415V, Three-Phase/Single phase |
||
Rotation Speed |
1420 r/min |
1420 r/min |
|
Braking Torque |
15 N m |
15 N m |
|

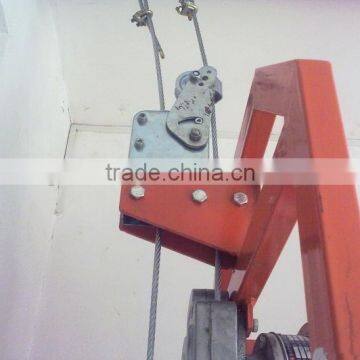

Safety Lock |
Type |
LSF30(Anti-dip) |
|
Permission Force of Impact |
30KN |
30KN |
|
Cable |
100m |
100m |
|
Diameter of Cable |
8.3mm |
8.6mm |
|
Locking Cable Angle |
3°~ 8° |
3°~ 8° Cleaning Lift Platform |
|
Allowable Load |
>800kg |
>800kg |
|
Cable Locking Distance |
≤100mm |
≤100mm |
|
Suspension Mechanism |
Front Beam Overhang |
1.3 ~ 1.5m ±0.26 |
1.3 ~ 1.5m ±0.26 |
Support Adjustable Height |
1.44 ~ 2.14m ±0.26 |
1.44 ~ 2.14m ±0.26 |
|
Weight |
360kg |
360kg |
|
Can be made acccording to special requirements | |||
Electrical |
Install with international and national famous brands electric components.Safety devices,such as an electric leakage production of power system,automatic limited switch are install to make operation easer,safer and more reliable. |
||
Counter Weight |
1000KG |
1000KG |
|
20' ft Container |
6 ~ 9sets |
6 ~ 8sets |
|
40' ft Container |
12 ~ 15sets |
12 ~ 15sets |
|
Superiority:
1. We had already passed the authorization by ISO9001:2008 and CE and established a complete set of quality assurance system.
2. Under such a complete set of quality assurance systems, there is a complete set of regulations for ordering, order handling, quality design, purchasing raw materials, working out production plan, production, test and inspection, packaging, storage, delivering, trace, keep in touch with clients, etc.
3. The CNC control center and PC-based production and marketing system not only improves the working efficiency but also assures the products quality.
4. Our test lines are equipped with a large amount of online test instruments, so that they can ensure and improve the products quality.
5. We also have a complete set of equipment and techniques for testing and controlling the performance of products, which ensures our Selling Construction Suspension Crane Basket/ Zlp630 Electric Hanging Basket quality to take a leading position among the fellow products at home and reach the international standard.
