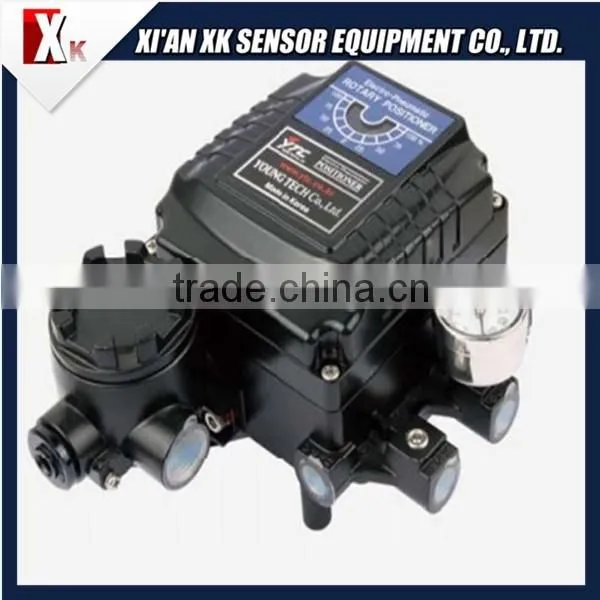

South Korea YTC type YT-1000R electro pneumatic positioner
Product Description:
YT-1000R series can have options of position transmitter (PTM), which outputs 4-20mA, and/or limit switch (L/S). - It is designed for high durability and performance in high vibration environment - Durability has proven after testing of 1 million times minimum.
Features:
- It is designed for high durability and performance in high vibration environment.
- Durability has proven after testing of 1 million times minimum.
- Response time is very short and accurate.
- Simple part change can set 1/2 Split Range.
- It is economical due to less air-consumption.
- Direct/Reverse action can be set easily.
- Zero & Span adjustment process is simply.
- Feedback Connection is easy.

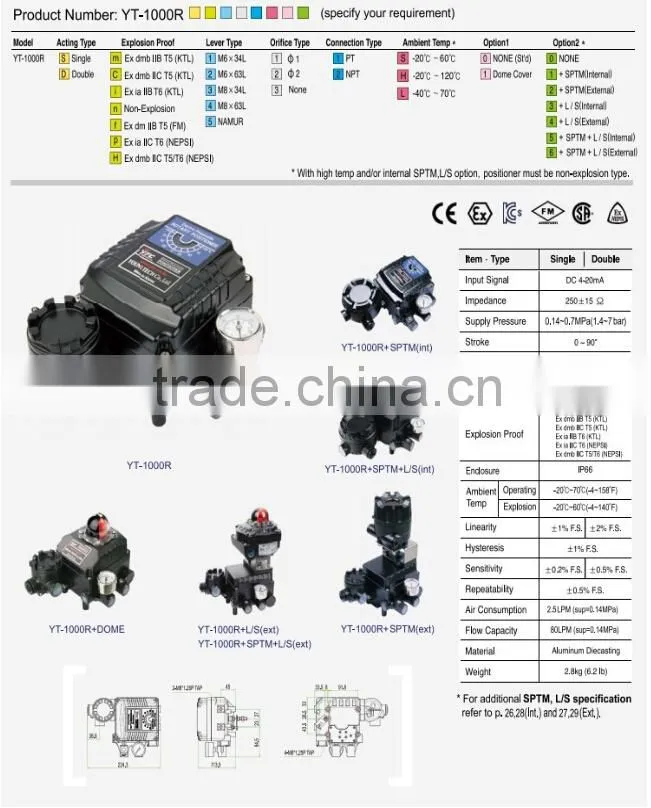

Specifications:
Item Type |
Single |
Double |
||
Input Signal |
4-20mA DC |
|||
Impedance |
250±15Ω |
|||
Supply Pressure |
0.14-0.7MPa(1.4-7bar) |
|||
Stroke |
0-90° |
|||
Air Connection |
PT(NPT)1/4 |
|||
Gauge Connection |
PT(NPT)1/8 |
|||
Conduit |
PF1/2(G1/2) |
|||
Explosion Proof |
Ex dmb IIB T5(KTL) |
|||
Ex dmb IIC T5(KTL) | ||||
Ex ia IIB T6(KTL) | ||||
Ex ia IIC T6(NEPSI) | ||||
Ex dmb IIC T5/T6(NEPSI) | ||||
Enclosure |
IP66 |
|||
Ambient Temp |
Operaling |
(-20℃~70℃ )/ (-4~158°F) |
||
Explosion |
(-20℃~60℃ )/ (-4~140°F) |
|||
Linearity |
±1% F.S |
±2% F.S |
||
Hysteresis |
±1% F.S |
|||
Sensitivity |
±0.2% F.S |
±0.5% F.S |
||
Repeatability |
±0.5% F.S |
|||
Air Consumption |
2.5LPM(sup=0.14MPa) |
|||
Flow Capacity |
80LPM(sup=0.14MPa) |
|||
Material |
Aluminum Diecasting |
|||
Weight |
2.8kg(6.2Ib) |
|||
