Master/Slave Operation Laser Light Sensor OLV125-F225-B12-40

US$ 2 - 1,000 MOQ: 1 Piece

Key Specifications

Place of Origin:

Germany

Brand Name:

P+F

Model Number:

Laser light sensor OLV125-F225-B12-40

Xian XK Sensor Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

XI'AN

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Germany

Brand Name P+F

Model Number Laser light sensor OLV125-F225-B12-40

Product Description

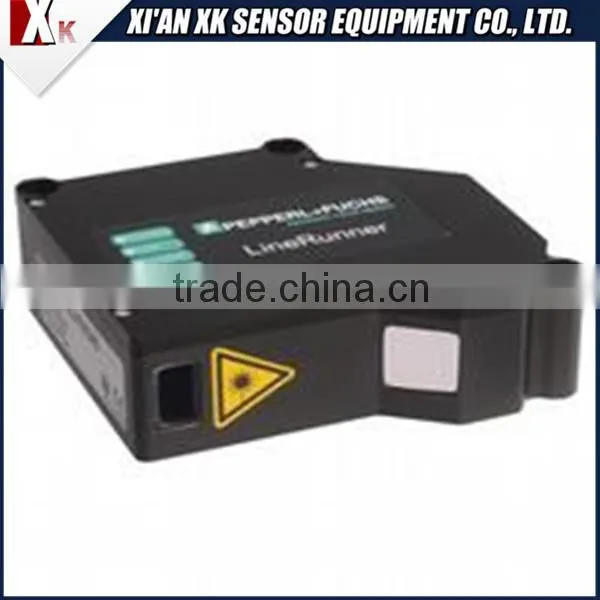

Laser light sensor OLV125-F225-B12-40

Product Description
Linerunner 300 laser light sensor for measuring height and width information

General specifications
Measurement range		Xmin = ±15 mm Xmax = ±21.5 mm Z = 65 mm ... 125 mm
Light source		laser diode
Light type		Red laser for measuring location indication, 650 nm Infrared light laser as measuring laser, 785 nm Both laser lines are congruent and are operated in parallel
Laser nominal ratings
	Laser class	1
	Wave length	Alignment laser: 650 nm Measurement laser: 785 nm
	Laser monitoring	The safety system switches off the laser when the laser current is too high
Scan rate		90 s^-1
Indicators/operating means
Function indicator		LAN, laser, status
Electrical specifications
Operating voltage		24 V DC ± 10 %, SELV/PELV
Interface
Interface type		Ethernet via TCP/IP , 100 Mbit/s
Output
Switching type		PNP
Compliance with standards and directives
Standard conformity
	Noise immunity	EN 60947-5-2
	Emitted interference	EN 60947-5-2
	Degree of protection	EN 60529
	Laser class	IEC 60825-1:2007
Mechanical specifications
Degree of protection		IP65
Connection		8-pin, M12 x 1 connector (supply voltage + I/O) 4-pin, M12 x 1 socket, D-coded (Ethernet)
Material
	Optical face	glass pane
