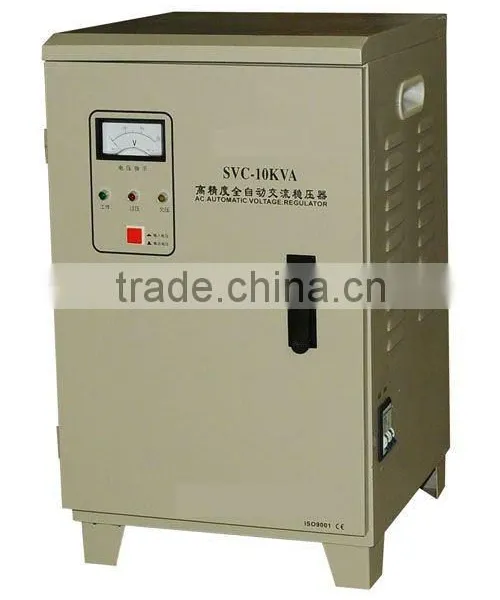

Help CenterSVC(TND)-10K High-Precision Automatic AC Voltage Stabilizer
Related Products
-
SVC(TND)-15K High-Precision Automatic AC Voltage StabilizerUS$ 10 - 350MOQ: 100 Pieces -
SVC(TND)-15K High-Precision Automatic AC Voltage StabilizerUS$ 10 - 350MOQ: 100 Pieces
-
SVC(TND)-30K High-Precision Automatic AC Voltage StabilizerUS$ 10 - 350MOQ: 100 Pieces
-
SVC(TND)-50K High-Precision Automatic AC Voltage StabilizerUS$ 10 - 350MOQ: 100 Pieces
-
SBW.DBW Automatic Compensated Power Voltage StabilizerUS$ 10 - 350MOQ: 100 Pieces
Specifications
1.SVC(TND)-10K single phase Automatic Voltage Stabilizer2.Input voltage:160-250V
3.Output voltage:220V
4.Warranty:1 Year
SVC(TND)-10Ksingle phase Automatic Voltage Stabilizer
| Phase | Single Phase | Three Phase |
| Input Voltage | 160-250V | 280-430V |
| Output Voltage | 220(1±5%)V setable | 380(1±5%)V setable |
| Frequency | 50~60Hz | 50~60Hz |
| Accuracy | ±(1~5) setable | ±(1~5) setable |
| Response Time | ≤0.5s | ≤0.5s |
| Efficiency | ≥98% | ≥98% |
| Temperature | 0°C~+40°C | 0°C~+40°C |
| Humidity | ≤90% | ≤90% |
| Insulation Resistance | 50MΩ | 50MΩ |
SVC automatic voltage regulator employs variable auto-transformer, buck and boost transformer, AC synchronous motor, IC loop control system. It features small waveform distortion, high efficiency, and high power factor. It can be widely used in places where voltage is unstable.
SVC Three Phase automatic voltage stabilizers have all the functions of single phase automatic voltage stabilizer. The stabilizer has three meters to indicate three phase separately, and a select switch connected with voltage meter to shift and observe the voltage of each phase.
Spec(KVA) |
Product size |
Package size |
Weight |
Qty |
Spec(KVA) |
Product size |
Package size |
Weight |
Qty |
||
Single-phase two-wire (desk type) |
SVC-0.5 |
17*19*13 |
44*25*35 |
5.0 |
4 |
Single-phase two-wire (vertical type) |
SVC-5 |
29*24*40 |
31*29*48 |
28.5 |
1 |
SVC-1 |
20*22*16 |
50*28*40 |
7.0 |
4 |
SVC-8 |
29 *24*42 |
40*35*52 |
39 |
1 |
||
SVC-1.5 |
20*22*16 |
50*28*40 |
8.0 |
4 |
SVC-10 |
29*24*42 |
40*35*52 |
40 |
1 |
||
SVC-2 |
26*24*19 |
34*32*50 |
14 |
2 |
SVC-15 |
40*33*65 |
48*45*90 |
75 |
1 |
||
SVC-3 |
29*22*24 |
62*38*34 |
16 |
2 |
SVC-20 |
58*35*68 |
68*48*90 |
110 |
1 |
||
SVC-5 |
46*24*29 |
54*32*27 |
27 |
1 |
SVC-30 |
53*43*102 |
64*53*112 |
165 |
1 |
||
SVC-8 |
57*27*24 |
71*40*35 |
40 |
1 |
SVC-45 |
79*43*129 |
90*65*140 |
200 |
1 |
||
SVC-10 |
57*27*24 |
71*40*35 |
41 |
1 |
SVC-60 |
79*43*129 |
90*65*140 |
250 |
1 |
||
SVC-1.5 |
40*36*17 |
52*48*28 |
18 |
1 |
SVC-20 |
43*51*91 |
64*55*106 |
124 |
1 |
||
Three-phase four-wire |
SVC-3 |
42*38*19 |
54*50*31 |
23 |
1 |
Three-phase four-wire |
SVC-30 |
43*51*91 |
64*55*106 |
131 |
1 |
SVC-4.5 |
42*38*19 |
54*50*31 |
27 |
1 |
SVC-45 |
65*43*95 |
78*55*110 |
197 |
1 |
||
SVC-6 |
37*28*68 |
48*40*78 |
39 |
1 |
SVC-60 |
77*55*100 |
90*67*115 |
260 |
1 |
||
SVC-9 |
35*33*78 |
48*45*90 |
48 |
1 |
SVC-80 |
77*55*100 |
90*67*115 |
290 |
1 |
||
SVC-15 |
43*38*73 |
55*51*90 |
85 |
1 |
SVC-100 |
77*55*100 |
90*67*115 |
350 |
1 |
||
