SVC High-Precision Automatic AC Voltage Stabilizer

SVC High-Precision Automatic AC Voltage Stabilizer thumbnail-1
SVC High-Precision Automatic AC Voltage Stabilizer photo-1
US$ 10 - 350 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
SENTAI
Model Number:
Automatic Voltage Regulator SVC-500
Contact Supplier Request Quote Chat Now
Zhejiang Sentai Electrical Apparatus Factory
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name SENTAI
Model Number Automatic Voltage Regulator SVC-500
Usage SVC
Phase Single Phase
Current Type AC

Specifications

1.SVC-500 Automatic Voltage Regulator
2.Input voltage:160-260V
3.Output voltage:110V/220V
4.Warranty 1 Year
5.OEM,ODM,CE

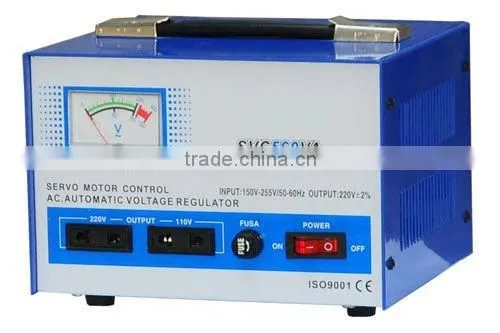

SVC-500 Automatic Voltage Regulator



1.Description

SVC single-phase and three-phase high accuracy full-automatic AC voltage stabilizer is one kind of our dominant products, made up of contact auto voltage regulator, servo motor, automatic control circuit, etc. When the power network voltage fluctuates or the load varies, automaticsampling control circuit will send signal to drive the servo motor which can adjust the position of carbon brush of auto voltage regulator, then, the output voltage will be adjusted to rated value and get a steady state.
This voltage stabilizer is of common type, it has the function of connecting through the commercial power. Compared with other voltage stabilizers, it has the advantage of great variety, complete specification, nice appearance and obvious features of high efficiency, no wave distortion,reliable performance, working continually for long time, besides, it is provided with short time delay and over voltage protection, and the long time delay and under voltage protection also can be set according to user requirement. This product is an ideal stabilized voltage supply, widely used in any locations requiring electricity and ensures your power device can run normally.
For office equipment, testing equipment, medical equipment,industrial automation equipment, household appliance, lighting system,communication system, etc.
Provide kinds of electrical appliances with abundant electric powermeeting different requirements


2.Technical data:

   Model Measurement(cm) Weight(kg) Pieces Packed Input voltage(V) Output voltage(V)
SVR-500VA 36.5*27*30.5 19 8 AC110V-250V
or160V-270V		 AC220V±8%
or110V±8%
SVR-1000VA 33*31*42 12 4
SVR-1500VA 33*31*42 14 4
SVR-2000VA 33*31*42 18 4
SVR-3000VA 41.5*28.5*35 12 1
SVR-5000VA 41.5*28.5*35 13 1

Spec(KVA)

Product size
D*W*H(cm)

Package size
D*W*H(cm)

Weight
(kg)

Qty

Spec(KVA)

Product size
D*W*H(cm)

Package size
D*W*H(cm)

Weight
(kg)



Qty

Single-phase two-wire (desk type)

SVC-0.5

17*19*13

44*25*35

5.0

4

Single-phase two-wire (vertical type)

SVC-5

29*24*40

31*29*48

28.5

1

SVC-1

20*22*16

50*28*40

7.0

4

SVC-8

29 *24*42

40*35*52

39

1

SVC-1.5

20*22*16

50*28*40

8.0

4

SVC-10

29*24*42

40*35*52

40

1

SVC-2

26*24*19

34*32*50

14

2

SVC-15

40*33*65

48*45*90

75

1

SVC-3

29*22*24

62*38*34

16

2

SVC-20

58*35*68

68*48*90

110

1

SVC-5

46*24*29

54*32*27

27

1

SVC-30

53*43*102

64*53*112

165

1

SVC-8

57*27*24

71*40*35

40

1

SVC-45

79*43*129

90*65*140

200

1

SVC-10

57*27*24

71*40*35

41

1

SVC-60

79*43*129

90*65*140

250

1

SVC-1.5

40*36*17

52*48*28

18

1

SVC-20

43*51*91

64*55*106

124

1

Three-phase four-wire

SVC-3

42*38*19

54*50*31

23

1

Three-phase four-wire

SVC-30

43*51*91

64*55*106

131

1

SVC-4.5

42*38*19

54*50*31

27

1

SVC-45

65*43*95

78*55*110

197

1

SVC-6

37*28*68

48*40*78

39

1

SVC-60

77*55*100

90*67*115

260

1

SVC-9

35*33*78

48*45*90

48

1

SVC-80

77*55*100

90*67*115

290

1

SVC-15

43*38*73

55*51*90

85

1

SVC-100

77*55*100

90*67*115

350

1
