Switch Power Supply

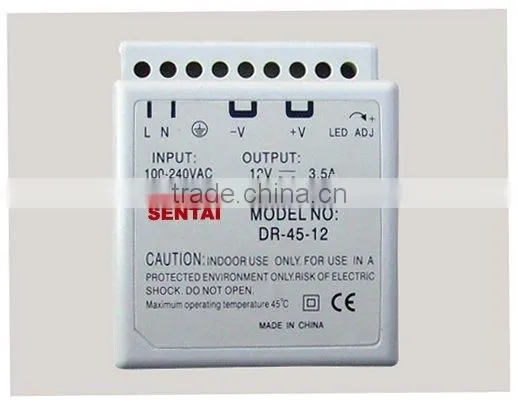

Switch Power Supply thumbnail-1
Switch Power Supply photo-1
US$ 0.1 - 10 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
SENTAI
Model Number:
DR-45
Contact Supplier Request Quote Chat Now
Zhejiang Sentai Electrical Apparatus Factory
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
china port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name SENTAI
Model Number DR-45
Output Power 1 - 50W
Output Type Other, DC
Input Voltage 220V
Output Voltage 5-24V
Output Frequency 50Hz
Output Current 2-5A

Specifications

1.High efficiency and low operation temperature
2.Soft-start current can reduce the AC input impact effecticly

Model DR-45-5 DR-45-12 DR-45-15 DR-45-24
Specification
DC output voltage 5V 12V 15V 24V
Output voltage range(Note:2) ±2% ±1% ±1% ±1%
Rated outpru current 5A 3.5A 2.8A 2A
Output current range 0-5A 0-3.5A 0-2.8A 0-2A
Wave and noise(Note:3) 100mVp-p 200mVp-p 240mVp-p 480mVp-p
Inlet stability(Note:4) ±1% ±1% ±1% ±1%
Load stability(Note:5) ±1% ±1% ±1% ±1%
DC output power 25W 42W 42W 48W
Efficiency 72% 77% 77% 80%
Adjustable range
for DC voltage		 4.75~5.5V 10.8~13.2V 13.5~16.5V 21.6~26.4
AC input voltage range 85~264VAC 47~63Hz;120~370DC
Input current 1.5A/115V 0.75A/230V
AC Inrush current Cold-start current 30A/115V 60A/230V
Leakage current <1mA/240VAC
Overload proctection 105%~150% Type:pulsing hiccup
shutdown Reset:auto recovery
Over-voltage protection
High-temperature protection
Temperature coefficient ±0.03%/(0~50)
Setup,rise,hold up time 800ms,60ms,50ms/230V
Vibraton 10~500Hz,2G 10min,/1cycle,period for 60min,
Each axes
Withsatnd voltage Input and output internal:1.5KvAC,input and enclosure:1.5Kv
AC,output and enclosure:0.5KvAC
Isolation resistance Input and output internal,input and enclosure,output and
enclosure:500VDC/100M
Working termperature
and humidity		 -10~+60(Refer to output derating vurve),
20%~90%RH
Store temperature and humidity -20 +85,10%~95%RH
Overall dimension 93*78*67mm
Weight  0.31Kgs
Safety standards Meet UL 1012R requirement(Not apply for the mark)
EMC standards Meet FCC PART15 J Conduction class B
Note:1.The testing condition for the paramenter above is:230VAC input,rated load,2570% RH,Temperature.
2.Error.include the setting error,line stability and load stability.(Note:5)
3.Wave test:adopting"A12"double wire for 20MHz and 0.1UF&47UF capacitor short-circuit for interrupting
4.Inlet voltage stability test:when is over load,the lowest voltage of inlet is up to the highest voltage.
5.Load stability test:The load is from 0% to 100%.
