Good Quality Sieve Analysis Instrument For Chemical
1. Product Introduction - Sieve Analysis Instrument
Sieve Analysis Instrument is designed for the measurement of particles size distribution and
the test analysis of impurity content or solid content in liquid, which are extensively suited
for any powder, grain and liquid materials, such as the foodstuff, chemical pharmaceutical,
grinding, ceramic and metals processing ,especially in scientific laboratories and quality
inspection departments.
2. Working Principle - Sieve Analysis Instrument
Sieve Analysis Instrument adopts new type power generator that generates multivariate
high-frequency vibration to sieve and filter samples efficiently. Meanwhile, its standard
screen makes sure high precision sample analysis.
3. Advantage - Sieve Analysis Instrument

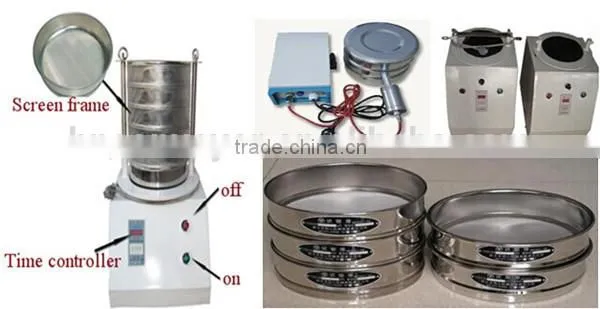

1.The products can be shut down according to electric time controller.
2.Wire mesh, easy to replace screen.
3. Accurate judgment of the sample product quality.
4.Compact, durable design, powder, particle and liquid can be screening.
4. Application - Sieve Analysis Instrument
1.Chemical industry: resin, pigment, industrial medicine, cosmetic, etc.
2.Food industry: sugar powder, starch, salt, rice noodles,etc.
3.Environment: disposed oil, disposed water, etc.
4.Coatings : Powder coatings, pigment paints, etc.
5.Metals : Metal powders, alloys, etc.
5. Technical Parameter - Sieve Analysis Instrument
NO. |
Name |
Unit |
Parameter |
|
1 |
Mesh diameter |
mm |
200 |
|
2 |
Sieves number |
layer |
5 |
|
3 |
Vibration frequency |
n/m |
1400 |
|
4 |
Vibration amplitude |
mm |
1-4 |
|
5 |
Exciting force |
KN |
3 |
|
6 |
Horizontal chassis |
mm |
≤0.6 |
|
7 |
Motor |
Power |
kw |
0.12 |
Rotate speed |
r/min |
1400 |
||
8 |
Shape size |
mm |
L*W*H, 370*350*650 |
|
9 |
Time alarm |
min |
1-5 |
|

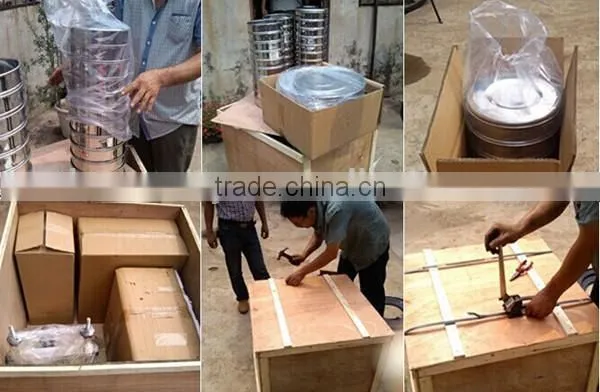

7. Transport & Package - Sieve Analysis Instrument

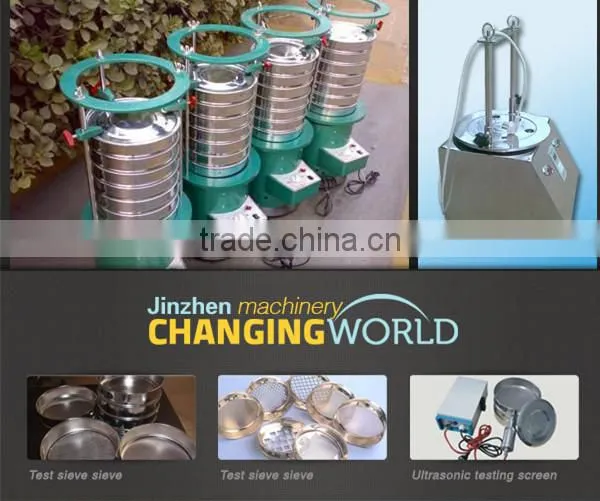

8. Company Profile
10. Why choose us ?
1. All the steel come from AN Gang which is one of the best steel.
2. 24 hours online SERVICE or mobile service.
3. Technical personnel overseas services
4. Regular telephone interviews
11. Q & A
(1) What's the material you will test ? has any special characteristics ?
A: Name of products; Such as corrosivity, viscosity, and etc.
(2) What's the diameter size of test sieve ?
A: We accept customize 200mm or 300mm.
(3) How many layers you want ?
A: We accept customize from 1 - 6 layers.

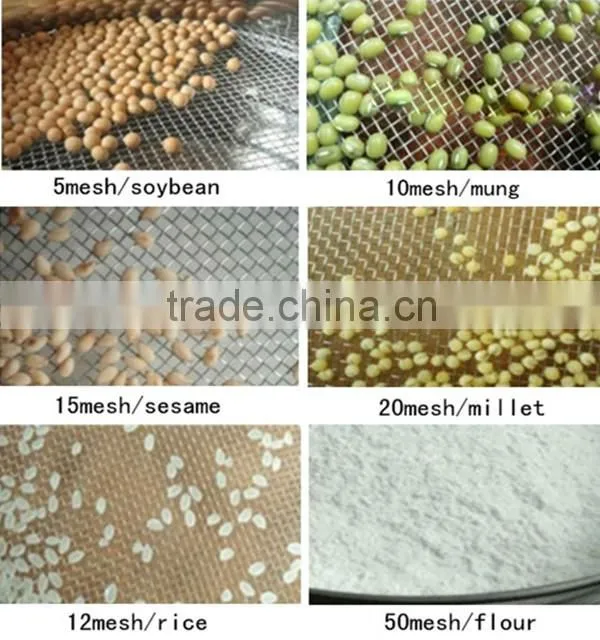

(4) What's the mesh size or hole diameter of each layer you want ?
A: 5-500 mesh OR 30-3000 micron.
