Specifications
Agricultural Machinery1.Large capacity
2.Professional design
3.Easy operation&Strong structure
4.CE, ISO900,BV
Alibaba Conveyor Manufacturer Wholesaler Bucket Elevator Agricultural Machinery

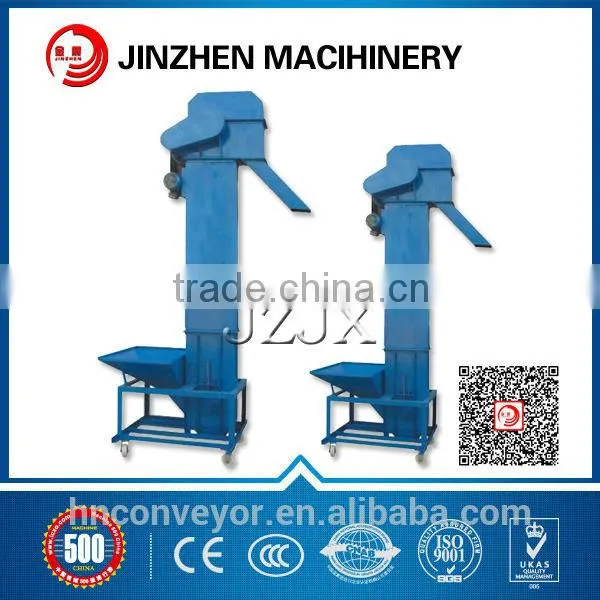

Product introduction- Agricultural Machinery
Bucket elevator is a kind of with a belt or chain for the traction mechanism of vertical lifting equipment. Canveying height is 30-80 meters. Bucket elevator application scope is extremely broad, it's suitable for many different industries. Small field area, hoisting height range, good sealing, reliable operation, high efficiency, low energy consumption characteristics.
Working principle- Agricultural Machinery
The hopper material scooped up from the following storage, with the conveyor belt or chain ascend to the top, flip down after bypass the crown chakra, bucket elevator poured material into receiving groove.

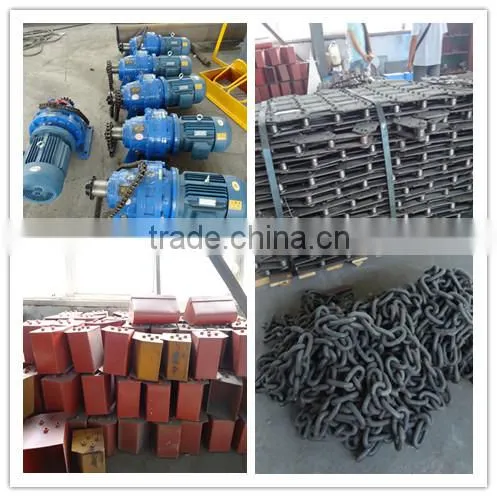

Product parts- Agricultural Machinery
1.Feed inlet 2.adjusting bolt 3.chain 4.bucket 5.Transmission platform 6.actuating device 7.transmission
8.The upper section 9.Outlet 10.The middle housing case 11.Footing fixing bolt 12.The lower section
Application- Agricultural Machinery
1. Food industry: fodder, flour, rice, starch, sugar, salt, corn, etc.
2. Mining industry: coal, sand, mineral, limestone, gypsum, etc.
3. Building industry: stone, cement, clay, lime, concrete, soil, etc.
Technical parameters- Agricultural Machinery
| Type |
Capacity (m³/h) |
Bunker parameter |
The speed of Main shaft (r/min) |
Particle size of material (mm) |
Lifting height (m) |
Power (Kw) |
|||
| Volume(L) | Distance(mm) | Speed(r/min) | |||||||
| JZHL300 | S | 28 | 5.2 | 500 | 1.25 | 37.5 | 40 | 30.16 | 5.5-10 |
| Q | 16 | 4.4 | 500 | 1.25 | 37.5 | 40 | 30.16 | ||
| JZHL400 | S | 47.2 | 10.5 | 600 | 1.25 | 37.5 | 50 | 21.92 | 5.5-10 |
| Q | 30 | 10 | 600 | 1.25 | 37.5 | 50 | 30.32 | ||
| JZTH315 | zh | 35 | 3.75 | 512 | 1.4 | 42.5 | 45 | 50 | 4-11 |
| sh | 59 | 6.0 | 512 | 1.4 | 42.5 | 45 | 50 | ||
| JZTH400 | zh | 58 | 5.9 | 512 | 1.4 | 37.6 | 55 | 50 | 7.5-18 |
| sh | 94 | 9.5 | 512 | 1.4 | 37.6 | 55 | 50 | ||
| JZTH500 | zh | 73 | 9.3 | 688 | 1.5 | 35.8 | 65 | 45 | 11-22 |
| sh | 118 | 15 | 688 | 1.5 | 35.8 | 65 | 45 | ||
| JZTH630 | zh | 114 | 14.6 | 688 | 1.5 | 31.8 | 75 | 50 | 11-37 |
| sh | 185 | 23.6 | 688 | 1.5 | 31.8 | 75 | 50 | ||
JZTH: zh- Medium deep bucket, for clammy material, like sugar, wet sand.
sh- Deep bucket, for dry powder and grain, like cement, sand and coal.
JZHL: Q- Shallow round bottom bucket, for the material that wet, easy to caking, hard to throw, like wet sand, wet coal.
S- Deep round botton bucket, for the material that dry, loose and easy to throw, like cement, coal sheet, gravel.
Advantages- Agricultural Machinery
1. Tough Chain structure and very strong hopper connection.
2. The abrasion of chain is small, Stronger than belt type.
3. Suitable for a large quantity of industries.
4. Large capacity, Reliably Sealing and High efficiency.

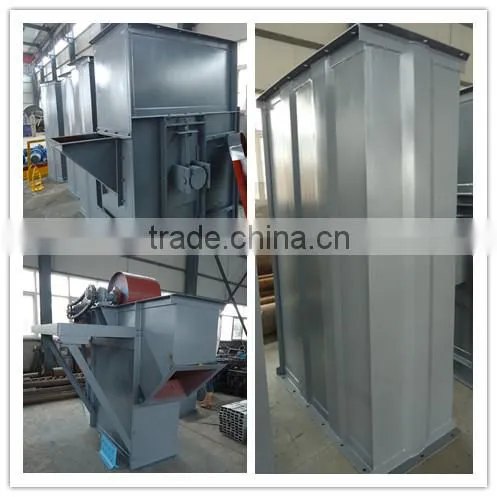

Producing process- Agricultural Machinery
Certification- Agricultural Machinery
CE,BV,ISO9001,Supplier Assessment,Letter of Patent,Quality Authentication
Packaging- Agricultural Machinery
Fumigation-free wooden case.
Waterproof, anti-corrosion, difficult to burn, sturdy and durable
Q&A:
What is the Advantage of the Bucket Elevator in JINZHEN?
1. Great sealing (good elevator sealing, internal pressure, dust suction inside, don't float in the sky).
2. Material won't feed back too much ( Good design of the Bucket spacing and input port, tensioning device tight the chain very good).
3. The material is easy to throw out from out put port.
4. Case is very firm, not easy to be out of shape.
How to choose the suitable type?
1. What is the material? (such as sand, gravel, grain, power etc.)
2. How much is the hoisting height? (in meter)
3. How much is the capacity? (in m3/h)
4. How much is the width of the bucket? (in mm)
5. What is the material of bucket and main case? ( Bucket: iron; plastic; stainless steel.
Main case: Carbon steel; stainless steel; contact part stainless steel.)
Why choose us?
Jinzhen Machinery Manufacturing
BEST QUALITY+ REASONABLE PRICE+ PROFESSIONAL SERVICE= JINZHEN
