Help CenterITO Sensor Glass
Related Products
ITO Sensor is made by coating Mo-Al-Mo metal layers and SiO2 layers on single or double sides of ITO Glass according to functional requests, producing the high-tech coated products with special structures through etching ITO and Mo-Al-Mo layers. ITO sensor is the key component of capacitive touch screen.
Features:
1. Product's Structure:
Single-side Structure: Glass/ITO/SiO2/MoAlMo/SiO2
Double-side Structure: SiO2/MoAlMo/ITO/Glass/ITO/MoAlMo/SiO2
During the process, some layers will be etched precisely in order to form the special structure of ITO sensor.
2. Properties of ITO Layer:
Light Transmittance:≥93%
Square Resistance:100±10
Surface Hardness:≥3H
Layer Thickness:1500±200A
Specifications:
Thickness: 0.3-1.1mm
Tolerance: ±0.05mm
Size: Customizable at customer’s request.
Applications:

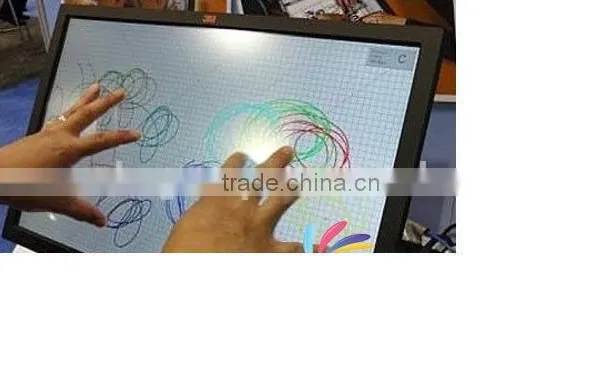

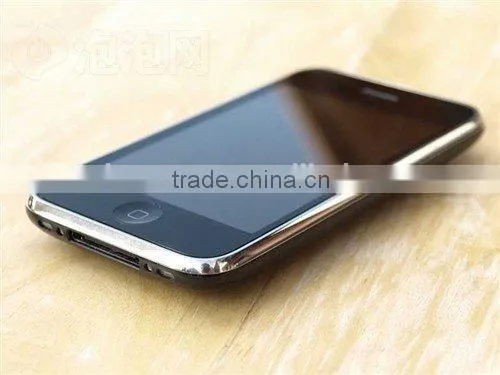

With the Apple iPhone becoming a rage, the advantages of the capacitive touch screen such as good texture, long life and multi-point touch attract many manufacturers diving into the development and production of this product. The application is not only existing in the mobile phone and it must be expanded into many high-tech products. Obviously, ITO glass will meet with the full production and application at the peak time.
