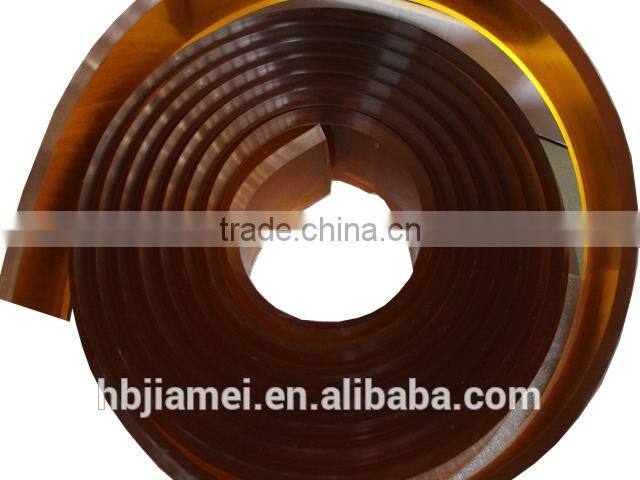

Printing machine spare part rubber squeegee used screen printing
1.Our factory:
Shenze jiamei screen printing co., ltd manufactures materials of screen printing machines,For example:screen printing squeegee rubber ,aluminum printing frames,drying rack and other screen printing equipment. We specialize in this filed for several years.
2. screen rubber squeegee specification:
Material |
TDI, MDI, PPG, PTMG, PU etc. |
Color |
as requested |
Hardness |
50-95(Shore A) |
Density |
1.12-1.25g/cm3 |
Tensile Strength |
25-55Mpa |
Tear Strength |
85-155KN/M |
Elongation |
450-650% |
Impact Elasticity |
>20-30% |
Tolerance |
0.1-0.3mm |
Working Temperature |
120°C(max) |
Surface Finish |
One side or both |
3. screen rubber squeegee AS series: Transparent color
Using high-quality raw materials,stable quality ,with anti-resistant common solvents,good elasticity,used in textile printing and general patterns
4. screen rubber squeegee AM series: Dark brown
Using high-quality raw materials,stable quality, good solvent resistance,abrasion resistance.used for general pattern printing.
5. screen rubber squeegee AA series:Red green blue white
Using imported raw materials,stay in grade,solvent resistance,easy to grind and long service durability,apply for advertising,electronics,packing,tobacco and other standard mechanical printing.
6. screen rubber squeegee AQ series:white
Imported raw materials and equipment.Excellent solvent resistance,abrasion resistance,sharp knife grinding leveling can be repeated,especially for glass printing and some high-end printing.
7. screen rubber squeegee AD series:
Imported raw material,imported equipment.With superior solvent resistance,abrasion resistance,stability,especially for the electronics industry and used in printed circuit board ,suitable for all areas of high-grade printing.

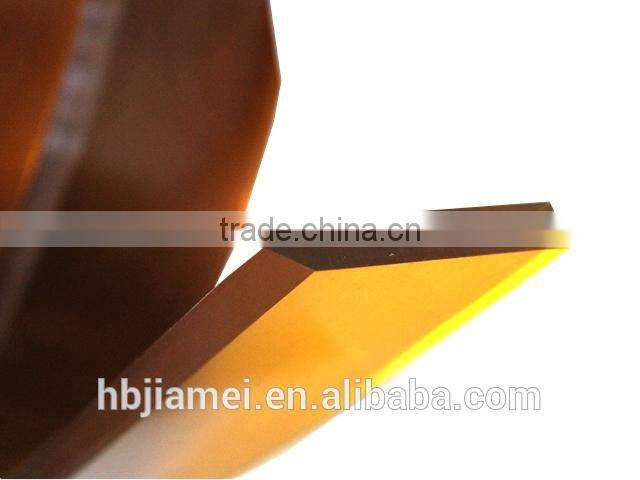

8. screen rubber squeegee edge shape:
9. screen rubber squeegee packing:

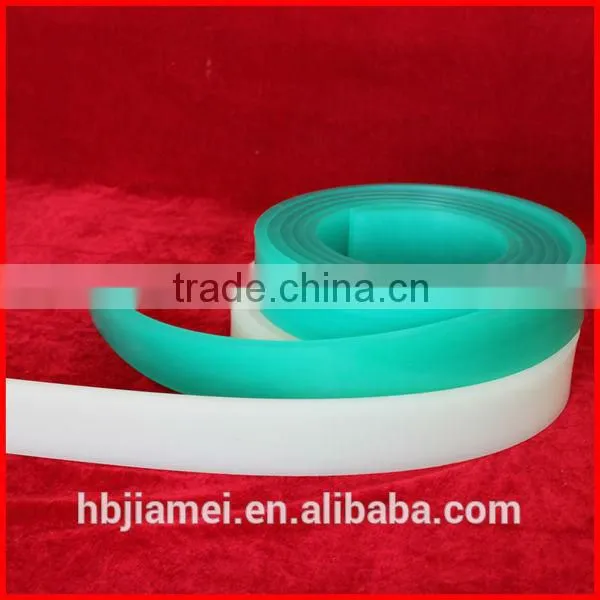

10. screen rubber squeegee hardness:
Soft 55 60 65 shore A red or natural
Medium 70 75 shore A green or natural
Hard 80 85 shore A blue or natural
Super hard 90 95 shore A white
Tripe medium 75/ 90/ 75 shore A green/white/green
Tripe soft 65/90/65 shore A red/white/red
Other hardness and colors are available on request
11. screen rubber squeegee application:
1.Applt for graphic printing, good resistance to solvent, and abrasion resistance
2.Apply to textile screen printing industry
3.Apply to large advertisement industry
4.Apply for auto-printing machine
5.Apply to High precise LCD, high precise multi-layered circuit board and electronic printing ect.
12.Our other screen rubber squeegee :
Please contact us whenever issues occur and we we’d try our best to assist.
If you interested our aluminum frame for silk screen printing , pelease no hesitate to contact me!!
