Specifications
silk screen printing rubberImported raw materials
High resistance to abrasion
Low price
Factory
low price printing squeegee/silk screen printing rubber
About us
Shenze Jiamei was founded in 1999,located in shenze.Our company mainly produce and supply screen printing squeegee rubber,squeegee,silk screen printing rubber.We have technicist with abundant knowledge and a lot of practice in this line.
Our company has a good reputation and a large number of customers in Europe, the Americas, Africa, the Middle East, Southeast Asia and other countries and regions.
We hope that our high-quality products, the solid reputation, the most favorable price can built a bridge to glory with you.
silk screen printing rubber introduce
Screen print squeegee rubber is also called scraper, it is one kind of tool that used to scratch the ink on the screen to make it leak to the substrate.
Squeegee is made by the combination of scratching strip and handle, rubber blade is inserted into the wood handle and stapled in position, then professionally sharpened after assembly. Use for both graphic and textile applications, for all hand printing and many machine applications.

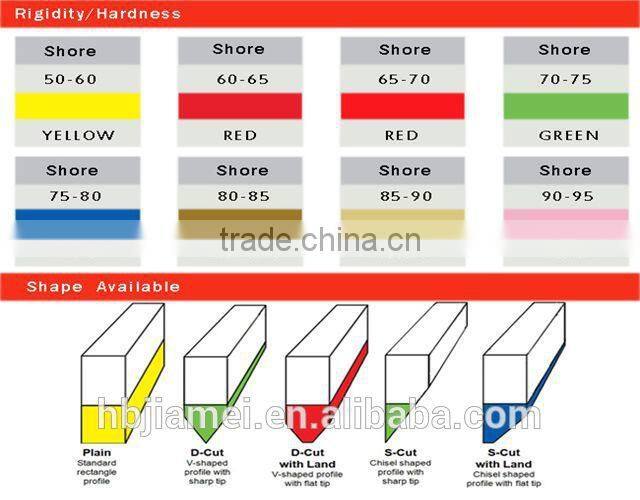

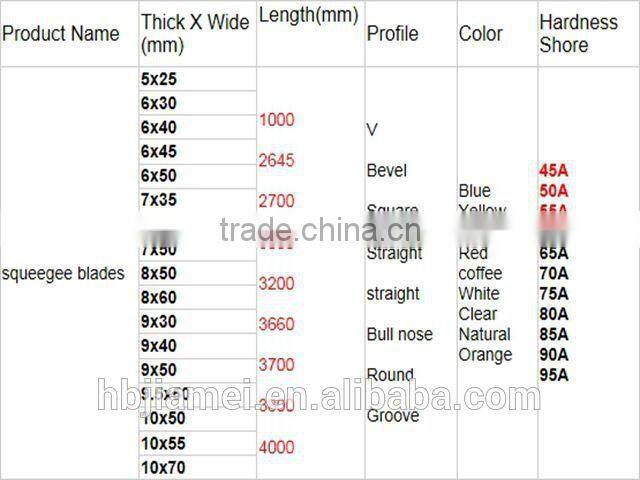

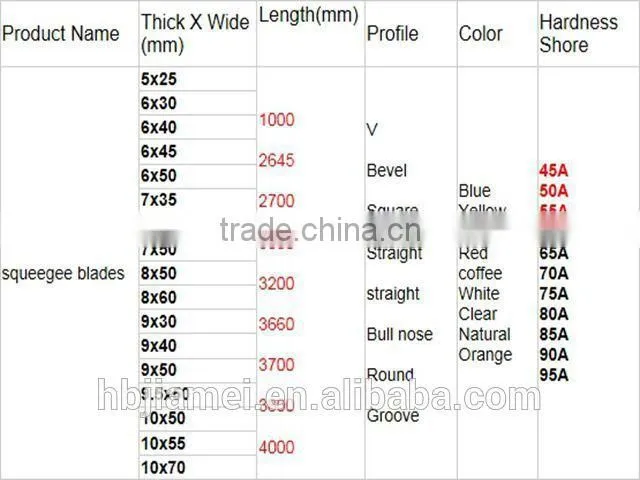

silk screen printing rubber specification

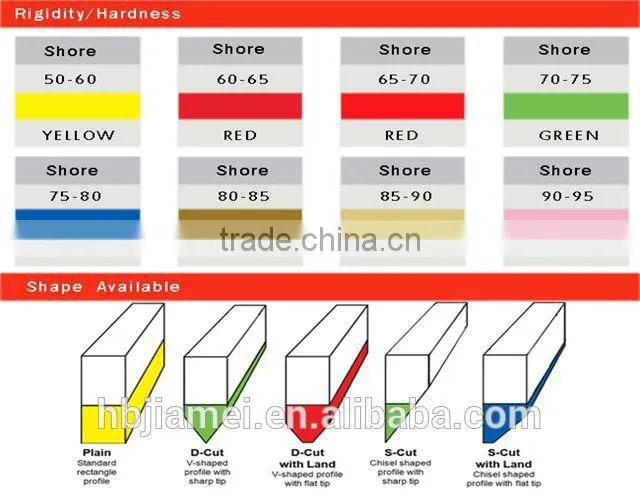

silk screen printing rubber selection
How to Choose the hardness
60,65 SH squeegees are very soft; they are usually used to print on ceramic and with glitter inks.
70,75 SH squeegees are recommended for printing on glass and on garments.
80,85 SH squeegees are used to print with high-speed automatic machines, to print on CDs, credit cards, electronic circuits, small objects, where high precision is required.
SURFACE: if the item you have to print has an rough, non-planar surface, the most suitable squeegee durometer is between 60 and 70 sh. If the surface is smooth, a harder durometer squeegee, between 80 and 90, should be used.
MESH: if a high mesh count (mesh very thin!) is being used, you need a harder squeegee (80 or 90 sh); if you are printing with glitter ink (which has large flakes of shiny, plastic material that have to pass through the mesh) you should use a softer squeegee.
INKS: the more aggressive inks, such as UV inks, cause more damage to the squeegee than a standard water based ink. The harder the material, the more solvent resistant the blade. Therefore, to eliminate swelling and chemical breakdown, use a harder durometer squeegee
INK DEPOSIT: a soft squeegee will deposit a thicker layer of ink than a harder squeegee.
silk screen printing rubber classifacation
AS Series
Using high-quality raw materials,stable quality ,with wear-resistant common solvents,good elasticity,used in textile printing and general patterns
AM Series
Using high-quality raw materials,stable quality, good solvent resistance,abrasion resistance.used for general pattern printing.
AA Series
Using imported raw materials,stay in grade,solvent resistance,easy to grind and long service durability,apply for advertising,electronics,packing,tobacco and other standard mechanical printing.
AQ Series
Imported raw materials and equipment.Excellent solvent resistance,abrasion resistance,sharp knife grinding leveling can be repeated,especially for glass printing and some high-end printing.
AD Series
Imported raw material,imported equipment.With superior solvent resistance,abrasion resistance,stability,especially for the electronics industry,suitable for all areas of high-grade printing.
Three layer scraper Series
Three layer scraper has triple hardness,include a hard part between(90 degrees)make the sword scraping ink increase angle,to reduce the amount of ink attached,soft part(60 degrees-70degrees)can reduce the sword scraping ink printing interface to the damage
silk screen printing rubber feature
1.Our squeegee made of special polyurethane elastomer have the following advantages.
2.High abrasion resistance and tear resistant better elasticty resulting in prints of uniformly high quality material.
3.Excellent resistance and minimum swell to a wide range of pastes,inlss and solvents.
4.Precisely finished edge.

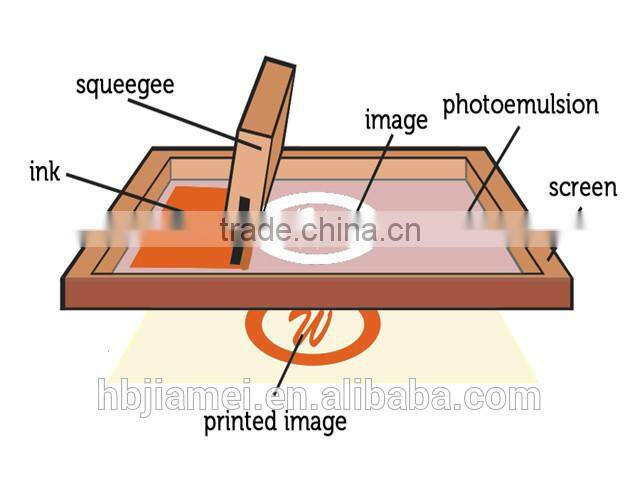

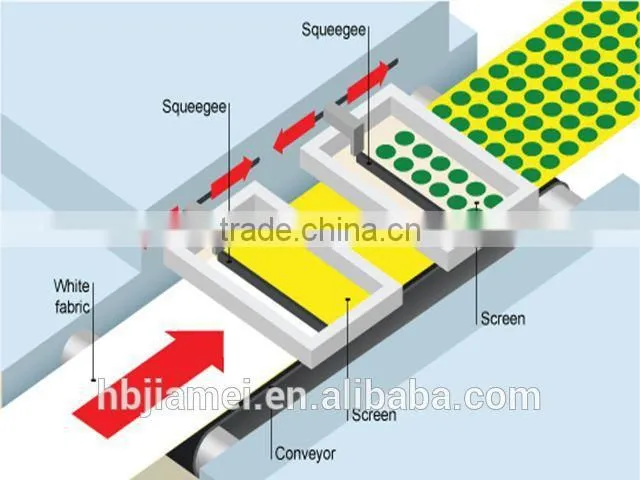

silk screen printing rubber use in screen printing

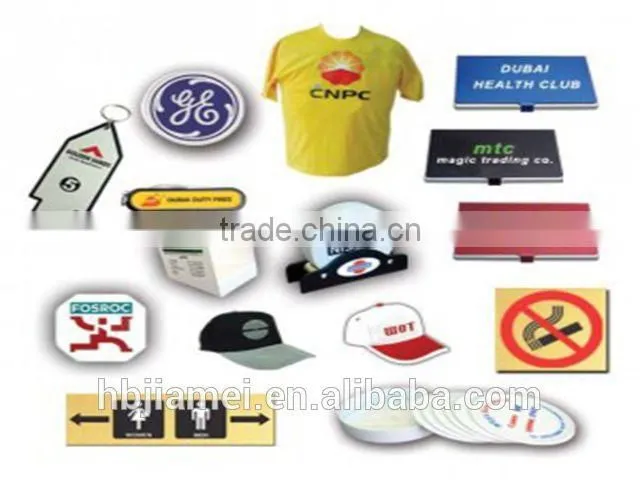

silk screen printing rubber application
1.screen printing industry.
Use to scrape the screen printing solvent liquid, and make to get the equisite pattern
2.Photography printing industry
Used in photography printing to dry the photographic paper after it is washed,preventing wrinkles or water sports
3.Window film,Car vinyl film, Ceramic and Sanitaryware design in ceramic industry
Use to scrap the thin film sticked on the window, make film very flat.
Or scrape vinyl film, make to achieve bubble free application.
4.Electronic industry.
To crape circuit board.

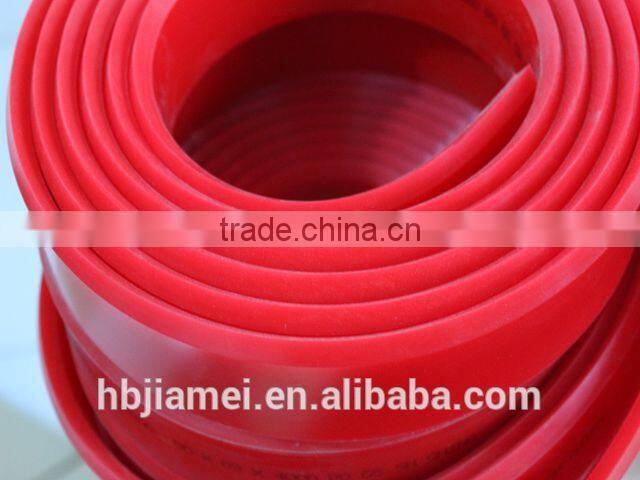

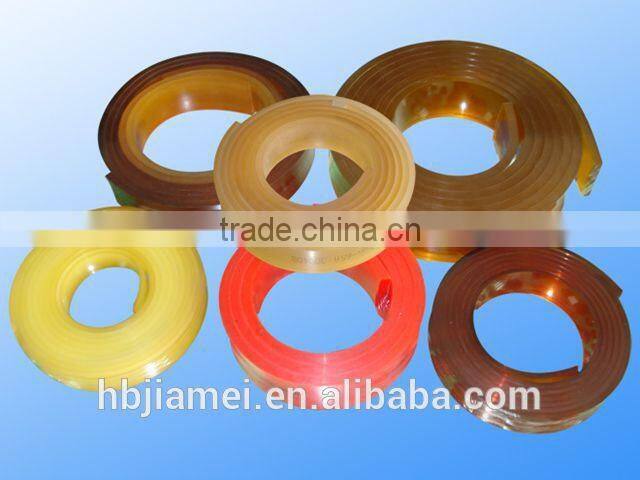

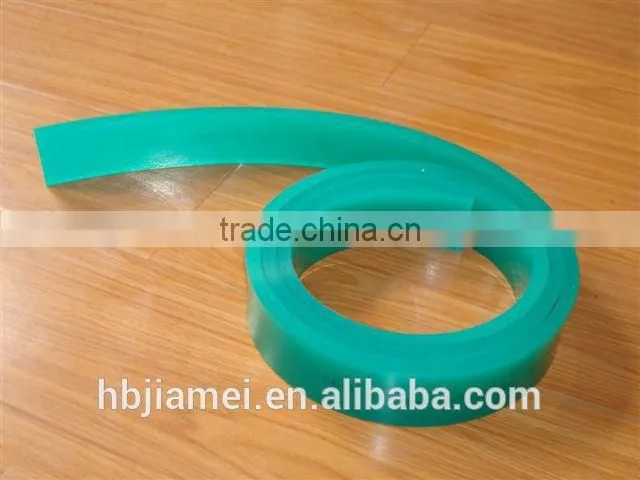

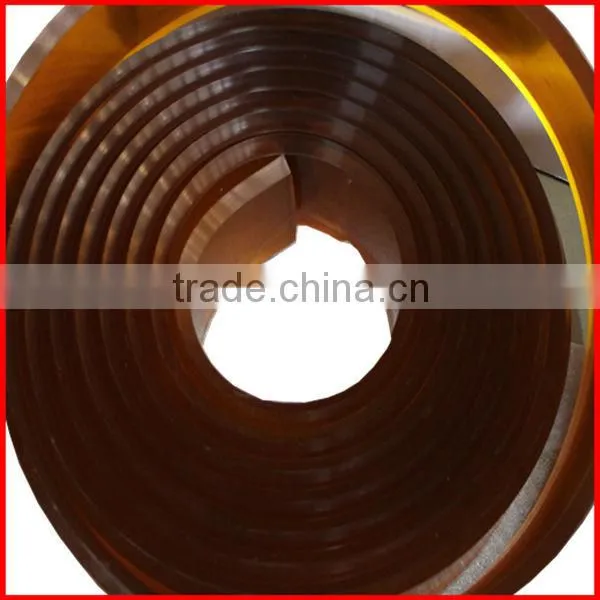

silk screen printing rubber pictures
Our service
If you are interested in our products please contact me as sonn as possible!
High quantity and best price
Shenze Jiamei Screen Printing Co.,Ltd.---Your Best Friend And Business Partner.
Skype:992
QQ:656403360
M:86-13832152559 Amy Wang
