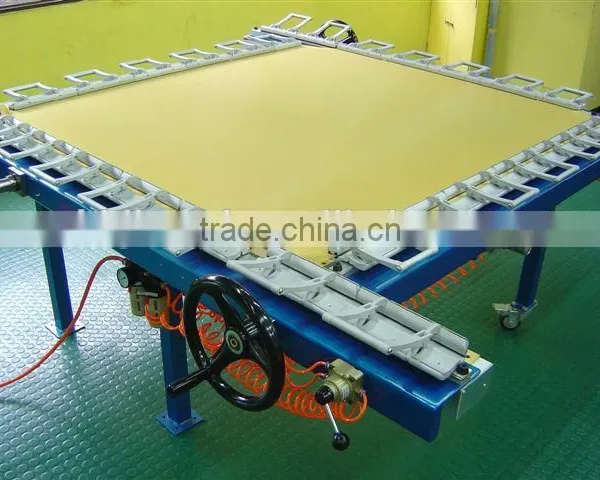

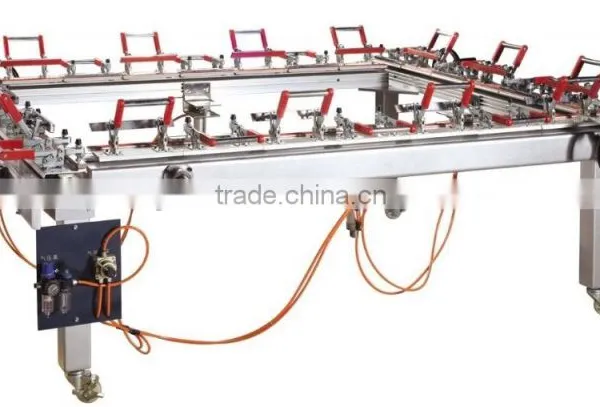

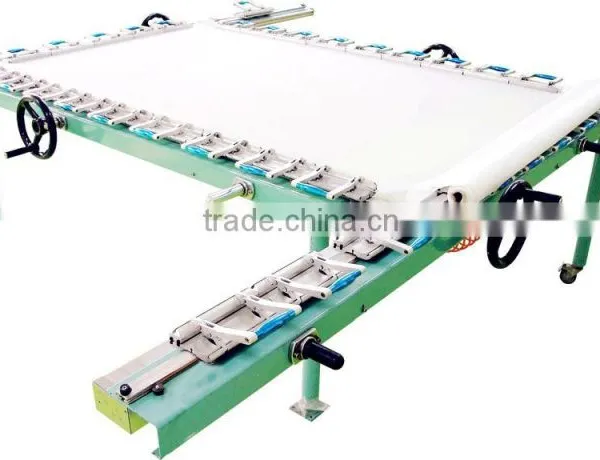

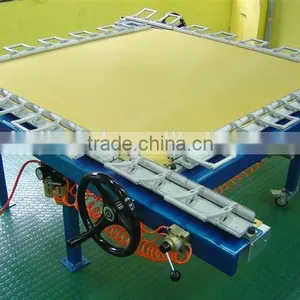

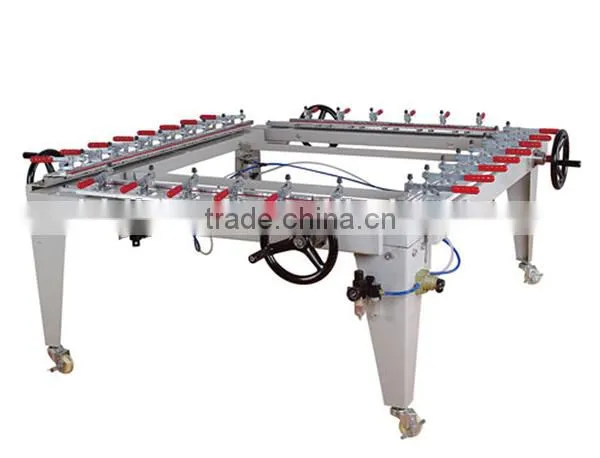

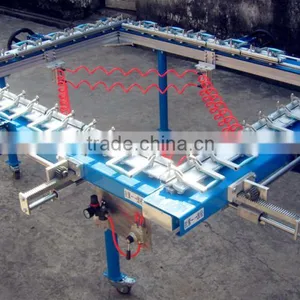

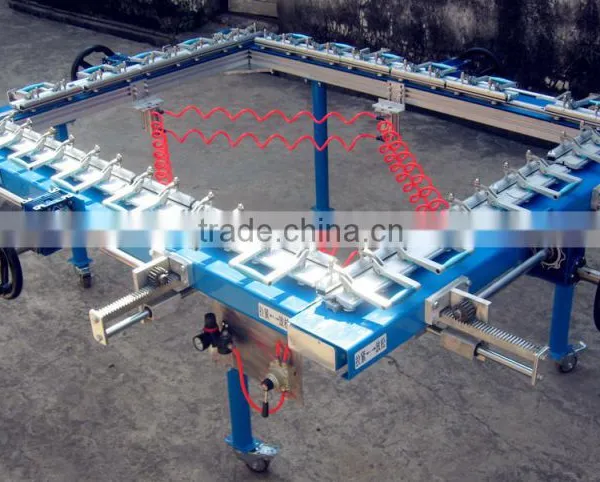

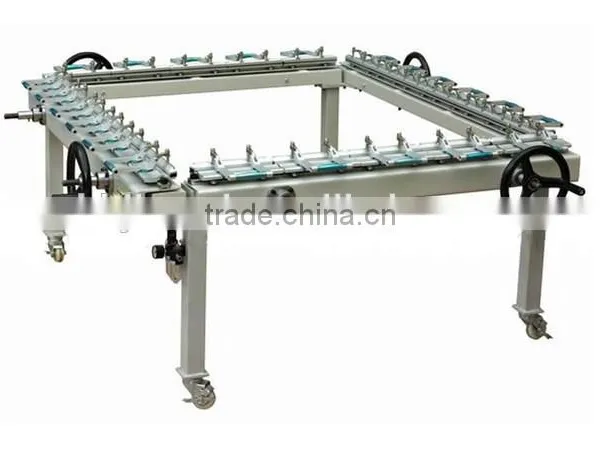

Help CenterSilk Screen Stretching Machine
Related Products
-
Manual Silk Screen StretcherUS$ 12 - 19MOQ: 50 Pieces -
One Color Manual Textile Screen Printing TableUS$ 100 - 115MOQ: 1 Set
-
One Color Manual Silkscreen Textile Printing TableUS$ 100 - 115MOQ: 1 Set
-
T-shirt and Bag Silk Screen Printing Table in China With Best QualityUS$ 100 - 115MOQ: 1 Set
-
High Quality Screen Printing Drying Racks And Drying Racks For Screen Print(Direct Supplier)US$ 70.01 - 149.9MOQ: 1 Set
Specifications
1. Max. Screen drawing area: 1500*2000mm
2. Min. Screen drawing area: 800*800mm
3. screen stretching machine,screen printing
Mesh Stretching Machine, Screen Stretching Machine, Mesh Tightened Machine

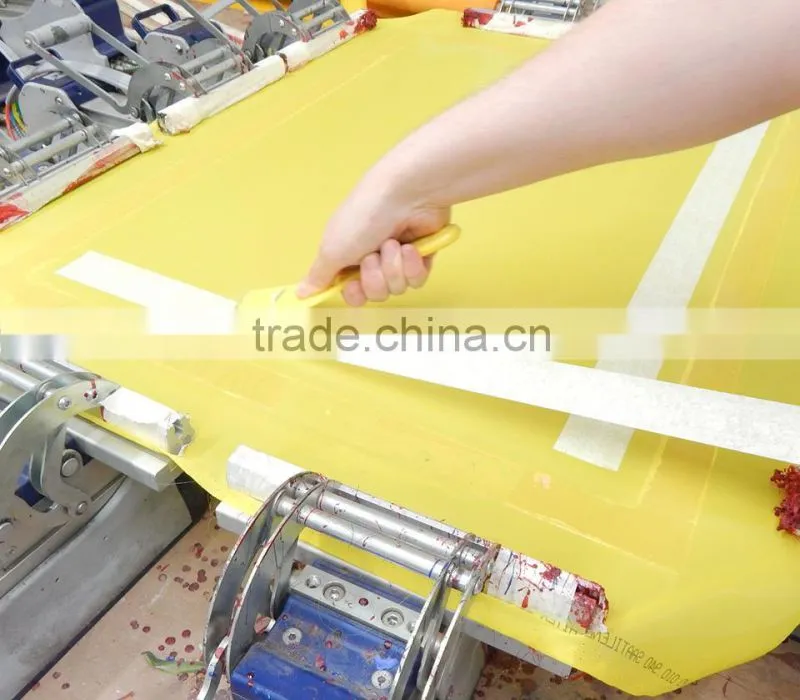

The first step is tightened silk mesh onto Screen frame made by Aluminium frame, Wooden Frame, Steel frame with Tighten silk machine; Air-controling to hold Metal shelf ensure contact compactly with silk surface; Hand-wheel operated to make precision tension. Many frames to be tightened meantime ensure same silk tension and correct overprint.
Pneumatic Silk Mesh Tighten machine is characterized not only for its ingenious, practical and elegant appearance, but also for its firm structure, light weight, durability and reliability and has therefore become an non-substitutable product in the silk-screen industry.
Which are connected into a rectangle stretching area. With the chain-drive and trapezium whorl silk-pole-moving structure, the machine operator can easily control the tensile strength of the stretcher by turning the plastic covered handle.
The lamination of the frame and the stretching surface is finished by the moving of the four cylinder, The stroke of the cylinder can be used for varied thickn-ess of frames by adjusting the spiral bolt and therefore guarantee the quality of the silk net.
Specification:
Model |
JM-800 |
JM-150 |
JM-200 |
Screen drawing area |
800*1000mm |
1200*1500mm |
1000*2000mm |
Max. Tension |
≥ 50N/CN |
≥ 50N/CN |
≥ 50N/CN |
Machine shape size |
1350× 1100× 800mm(L× W× H) |
1350× 1550× 1000mm(L× W× H) |
1100× 2000× 1100mm(L× W× H) |
Weight |
160kg |
200kg |
250kg |
