Master Handset Panel, Trouble Indicator with Charger Panel AMD Handset Zone Selector PanelMaster Handset Panel (MODEL : FV-101) is the central component of FIREVOX fully supervised Fireman Intercom System. The handset of the Master Handset Panel is mould with tough red ABS plastic, a solid -state speech amplifier, coiled cord and the abovementioned features. Each system requires 1 no. of Master Handset Panel.
The Trouble Indicator with Charger Panel (MODEL : FV-102) provides a frim and reliable circuitry for the charging of battery, supply of power, both audio and visual indication when trouble occurs within the operation system. Once the fault condition is solved, the audible system resets itself and is ready to indicate any later fault conditions again. During AC power failure, the Battery will automatically takeover if it is connected. One unit of Trouble Indicator with Charger Panel is required in an operation system.
the Handset Zone Selector Panel (MODEL FV-103) consists od 10 nos. push button c/w built-in GREEN CALL LED, 10 nos. RED FAULT LED and 10 nos. plug-in module card within the motherboard for Zone supervision purpose. The built-in CALL LED in the push button will flash to show visually when a zone has been selected. The flashing LED illuminates steadily once the push button is pressed. When there is an open or short circuit in the Handset lines, the RED FAULT LED located beside the push button will light up to indicates tre is a fault occurs in the system. One no. Zone Selector Panel is needed for each 10 nos. Remote Handset Zones.

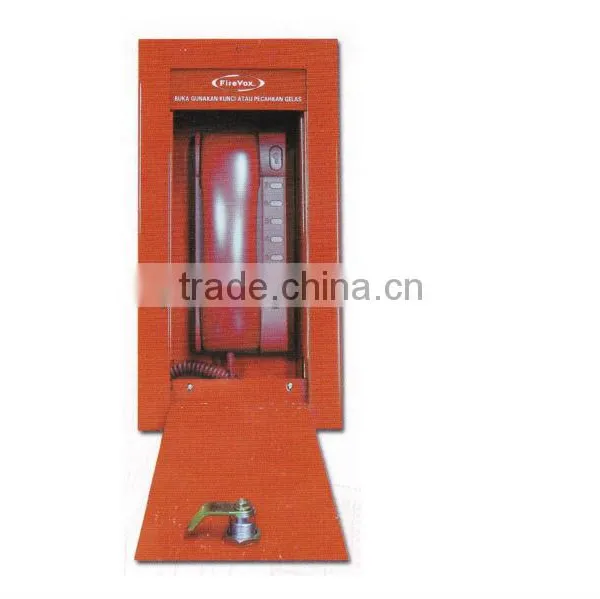

Remote Handsets (MODEL : FV-111) are placed at specified locations, within a building, to enable communication between fire-fighters and Master Handset Panel during fire evacuation. A metal enclosure with a knockout hole made each at the top and bottom of it is used to house handset. A set of key lock and master key system with a break-glass window access (usage for emerge door opening) is included in the unit. The Handset is moulded of ABS plastic and attached with a coiled cord. A high dB electronic buzzer and a Red flashing LED indicator is built-in within the handset unit.
