US$ 30 - 60 MOQ: 20 Square Meters
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Material:
Stainless Steel Wire
Type:
Weave Wire Mesh
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
xingang
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Material Stainless Steel Wire
Type Weave Wire Mesh
Application Protecting Mesh
Weave Style Other, hand woven
Wire Diameter 1.20mm
Technique Woven
Model Number XTRWM
Brand Name generalmesh

    X-TEND cable mesh ,Flexible stainless wire mesh



      Hebei general metal netting Co.,ltd - your best choice of X-TEND cable mesh ,Flexible stainless wire mesh supplier .



Material:304,316,316L

Mesh type:
1.       Inter-woven type
2.       Ferrule Type (Stainless Steel adapter sleeve)



Mesh feature: Lightweight, high-strength,easilt to install in any condition,very good to protect the animal fur and body .

Applications:

  X-TEND cable mesh ,Flexible stainless wire mesh Used to balustrades for bridges,staircases,marinas and multi-store carparks,large barrier fences,animal enclosures and vertical garden on building facades.



Detailed specification:

    You can choose any size what you want .



Inter-woven type:



Rope structure

breaking force

Rope diameter

Aperture



kN


(Inch)


(mm)


(Inch)


(mm)

7 X 19

7.38

1/8

3.2

4.7" x 4.7"

120 X 120

7 x 19

7.38

1/8

3.2

4" x 4"

102 x 102

7 x 19

7.38

1/8

3.2

3.6" x 3.6"

90 x 90

7 x 19

7.38

1/8

3.2

3" x 3"

76 x 76

7 x 19

7.38

1/8

3.2

2" x 2"

51 x 51

7 x 7

4.18

3/32

2.4

4" x 4"

102 x 102

7 x 7

4.18

3/32

2.4

3.6" x 3.6"

90 x 90

7 x 7

4.18

3/32

2.4

3" x 3"

76 x 76

7 x 7

4.18

3/32

2.4

2.4" x 2.4"

60 x 60

7 x 7

4.18

3/32

2.4

2" x 2"

51 x 51

7 x 7

3.17

5/64

2

3" x 3"

76 x 76

7 x 7

3.17

5/64

2

2.4" x 2.4"

60 x 60

7 x 7

3.17

5/64

2

2" x 2"

51 x 51

7 x 7

3.17

5/64

2

1.5" x 1.5"

38 x 38

7 x 7

2.17

1/16

1.6

3" x 3"

76 x 76

7 x 7

2.17

1/16

1.6

2" x 2"

51 x 51

7 x 7

2.17

1/16

1.6

1.5" x 1.5"

38 x 38

7 x 7

2.17

1/16

1.6

1.2" x 1.2"

30 x 30

7 x 7

2.17

1/16

1.6

1" x 1"

25.4 x 25.4

7 x 7

1.22

3/64

1.2

2” x 2”

51 x 51

7 x 7

1.22

3/64

1.2

1.5" x 1.5"

38 x 38

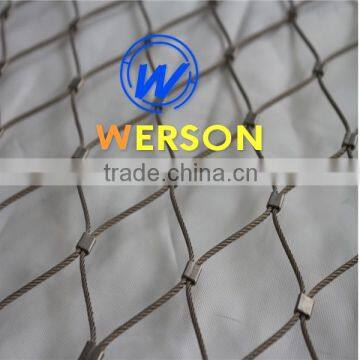

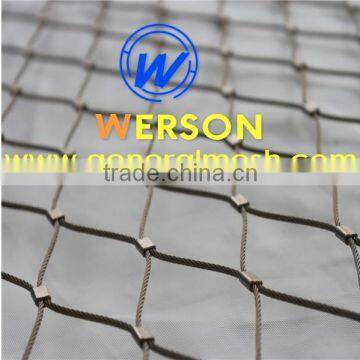

 Ferrule Type :

Rope structure

breaking force

Rope diameter

aperture



KN


(Inch)


(mm)


(mm)

7X19

7.38

1/8

3.2

120 x 208

7X19

7.38

1/8

3.2

100 x 173

7X19

7.38

1/8

3.2

90 x 156

7X7

4.18

3/32

2.4

100 x 173

7X7

4.18

3/32

2.4

90 x 156

7X7

4.18

3/32

2.4

80 x 139

7X7

4.18

3/32

2.4

70 x 121

7X7

3.17

5/64

2.0

100 x 173

7X7

3.17

5/64

2.0

90 x 156

7X7

3.17

5/64

2.0

80 x 139

7X7

3.17

5/64

2.0

70 x 121

7X7

2.17

1/16

1.6

80 x 139

7X7

2.17

1/16

1.6

70 x 121

7X7

2.17

1/16

1.6

60 x 104

7X7

2.17

1/16

1.6

51 x 87

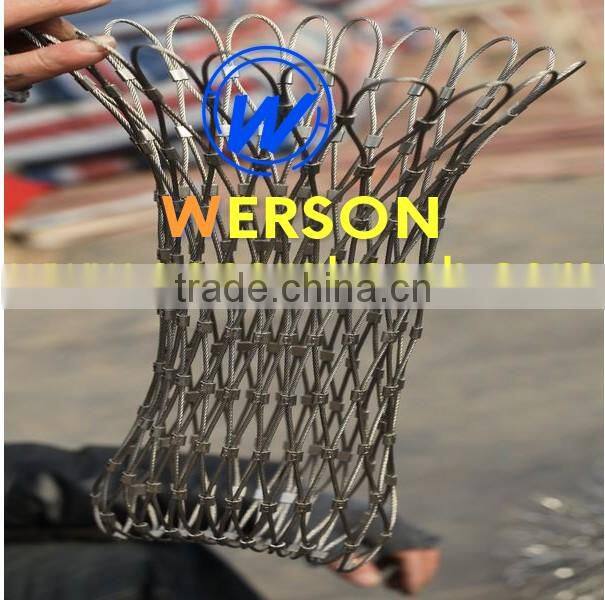

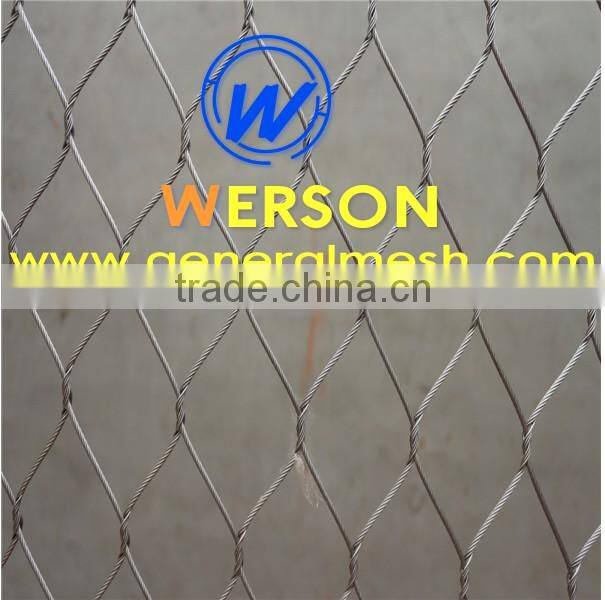

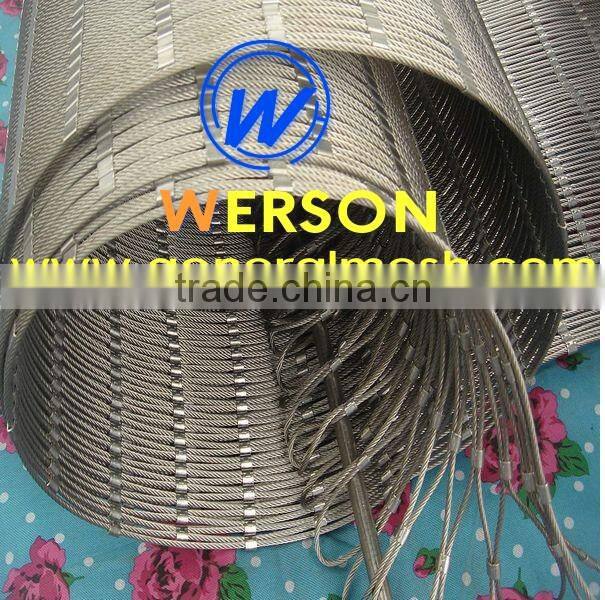

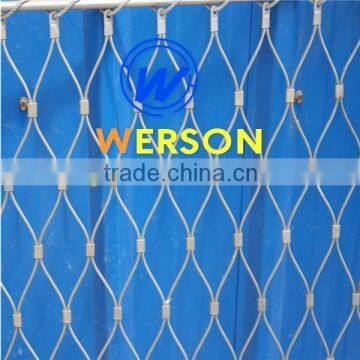

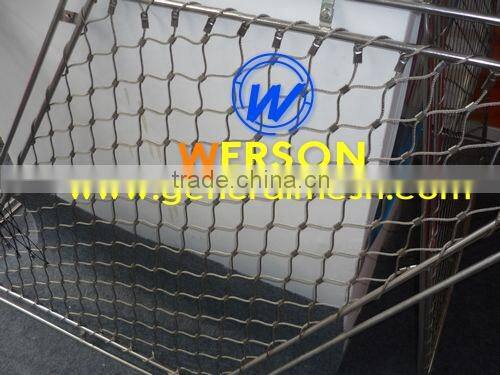

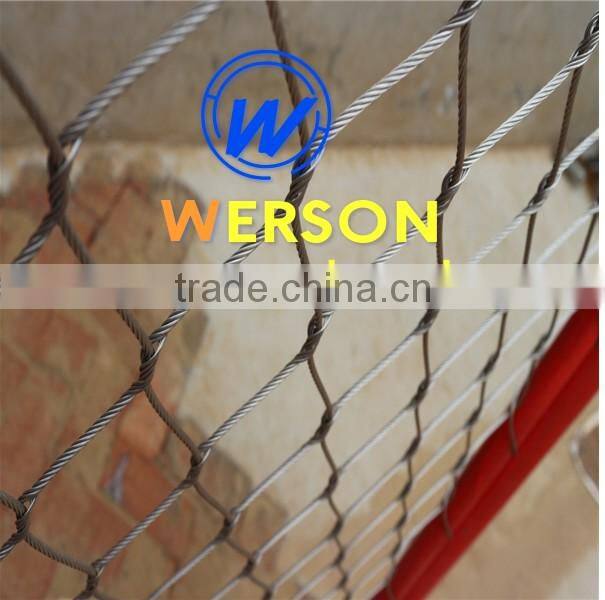

    X-TEND cable mesh ,Flexible stainless wire mesh pictures:



 X-TEND cable mesh ,Flexible stainless wire mesh for balustrade,security and wall gardens,hand woven or ferruled | generalmesh



 X-TEND cable mesh ,Flexible stainless wire mesh for balustrade,security and wall gardens,hand woven or ferruled | generalmesh



 X-TEND cable mesh ,Flexible stainless wire mesh for balustrade,security and wall gardens,hand woven or ferruled | generalmeshX-TEND cable mesh ,Flexible stainless wire mesh for balustrade,security and wall gardens,hand woven or ferruled | generalmeshX-TEND cable mesh ,Flexible stainless wire mesh for balustrade,security and wall gardens,hand woven or ferruled | generalmeshX-TEND cable mesh ,Flexible stainless wire mesh for balustrade,security and wall gardens,hand woven or ferruled | generalmesh

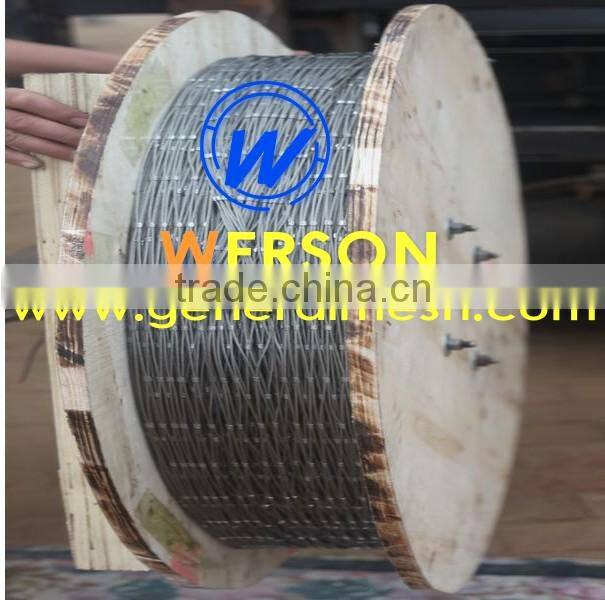

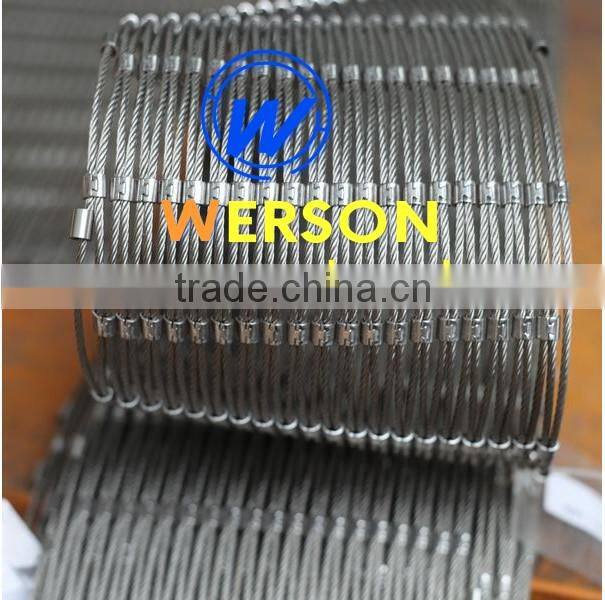

Packing:

X-TEND cable mesh ,Flexible stainless wire mesh for balustrade,security and wall gardens,hand woven or ferruled | generalmesh



 X-TEND cable mesh ,Flexible stainless wire mesh for balustrade,security and wall gardens,hand woven or ferruled | generalmesh

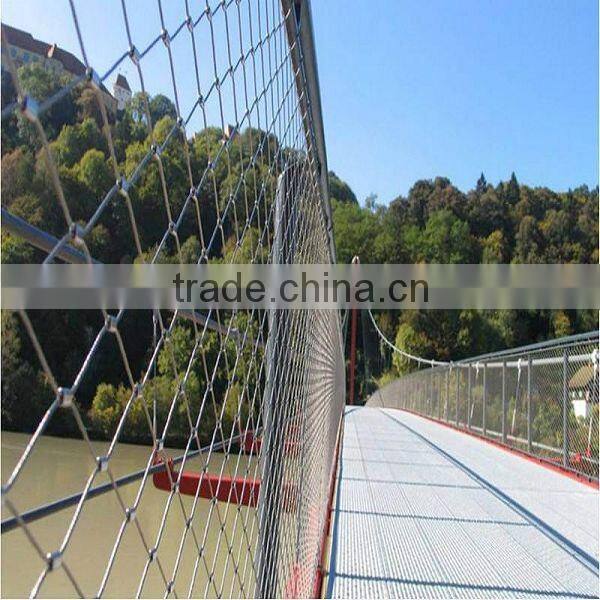

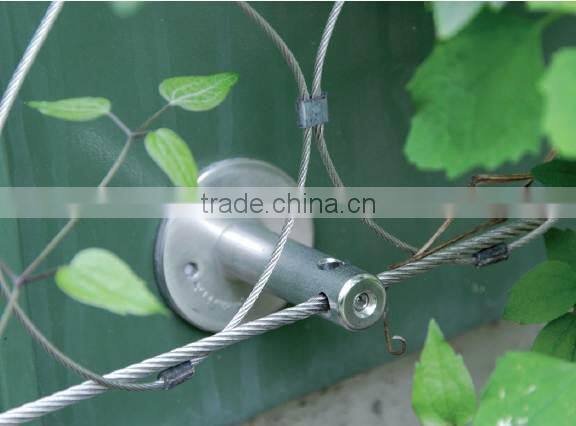

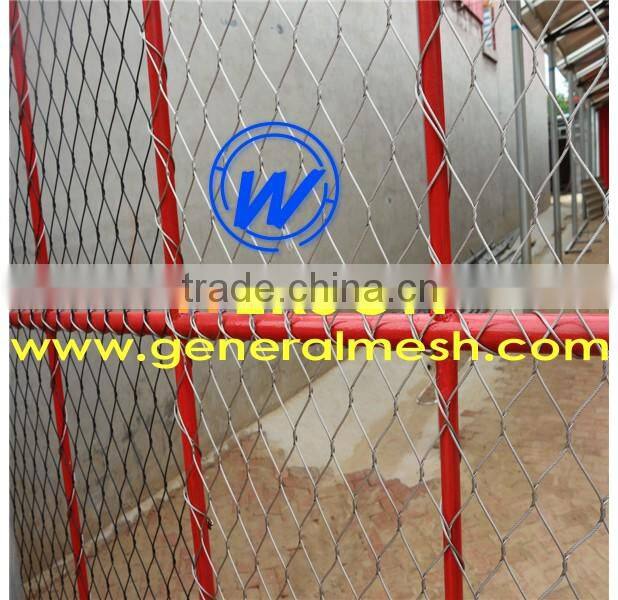

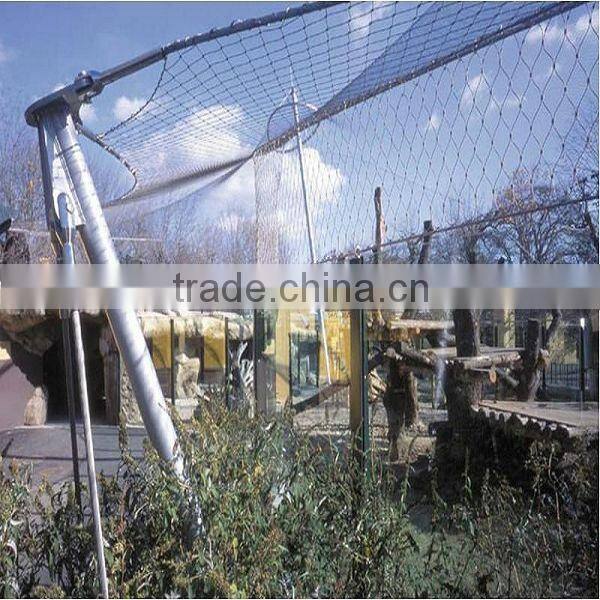

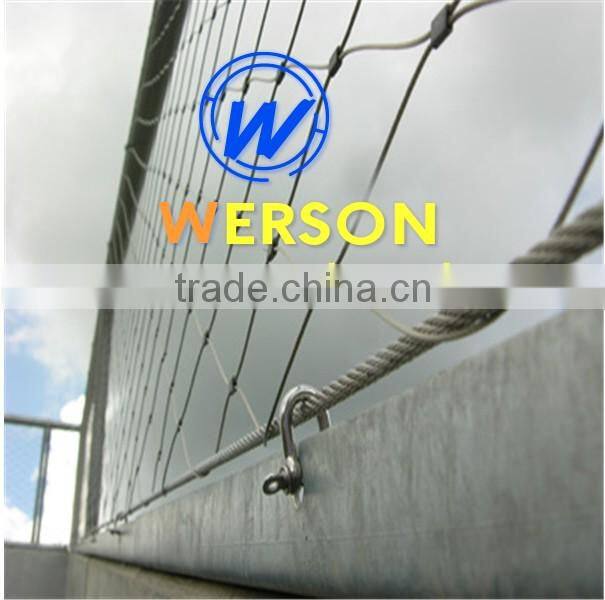

 applications:

X-TEND cable mesh ,Flexible stainless wire mesh for balustrade,security and wall gardens,hand woven or ferruled | generalmesh



 X-TEND cable mesh ,Flexible stainless wire mesh for balustrade,security and wall gardens,hand woven or ferruled | generalmeshX-TEND cable mesh ,Flexible stainless wire mesh for balustrade,security and wall gardens,hand woven or ferruled | generalmeshX-TEND cable mesh ,Flexible stainless wire mesh for balustrade,security and wall gardens,hand woven or ferruled | generalmeshX-TEND cable mesh ,Flexible stainless wire mesh for balustrade,security and wall gardens,hand woven or ferruled | generalmesh
