Specifications
1. asynchonous aluminum motor
2. YS series(0.18-7.5kw)
3. aluminium frame:50-132mm
4. CE certificate,OEM approve
5. Competitive price
YS series 3-phase electric asynchonous aluminum motor
YS Electric Motor description:
YS motor is a fully enclosed three-phase asynchronous motor with self-fan Cooling system and a mouse-cage shape. It features high efficiency, energy saving, high value of startup toque, low noise, low vibration, and reliability of running.
It is widely used on the mechanical equipment in common places where there are no inflammable, explosive and corrosive gases and in places with no special requirements, such as the machine tools for cutting metals, exhaust fan and transportation machinery.
YS Electric motor feature:
Brand Name |
YUTONG |
Model Number |
YS-5622-120W |
Type |
120w three phase motor |
Frequency |
50HZ/60HZ |
Output Power |
120w |
Phase |
Three Phase |
Certification |
CE, CCC, IS9001,IS2008 |
Rated voltage |
220V/380V/660V/or as requested |
Efficiency |
IE1/IE2 |
Frame |
50-132mm |
Poles |
2 , 4 ,6 |
Ambient temperature |
-15° ℃ ≤0 ≤ 40 ℃ |
Altitude |
not exceeding 1000 Meters |
Duty |
Continuous running |
Insulation Class |
B/F |
Protection Class |
IP54/IP55/IP65 |
Cooling Method |
IC0141 (total-enclosed fan-cooled type) |
Price |
USD |
Minimum Order Quantity |
10PCS |
Packaging Details |
Small size:standard export packing(carton and plled) Big size:fumigated wood carton or non-wood packing material carton |
Delivery Time |
7-10 working days after received the payment |
Payment Terms |
L/C,T/T,Western Union |
Supply Ability |
12000 Pieces per Month |
Material |
100% copper wire |
Mounting types |
IMB3, IMB5,IMB35 IMV1,IMV3 and ect. |
Speed |
960-3000rpm |
Relative humidity |
not higher than 85% |

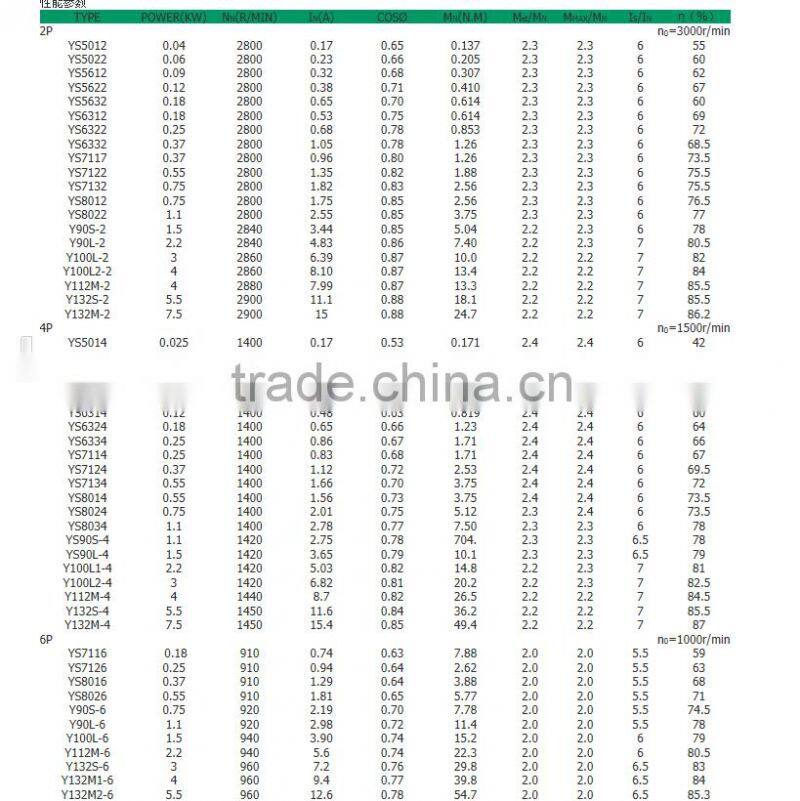

YS Electric Motor main technical parameter:
YS electric motor Packaging:
Packing: Small size:standard export packing(carton and plled) Big size:fumigated wood carton or non-wood packing material carton
Shipping: by sea ,by air,by rill way

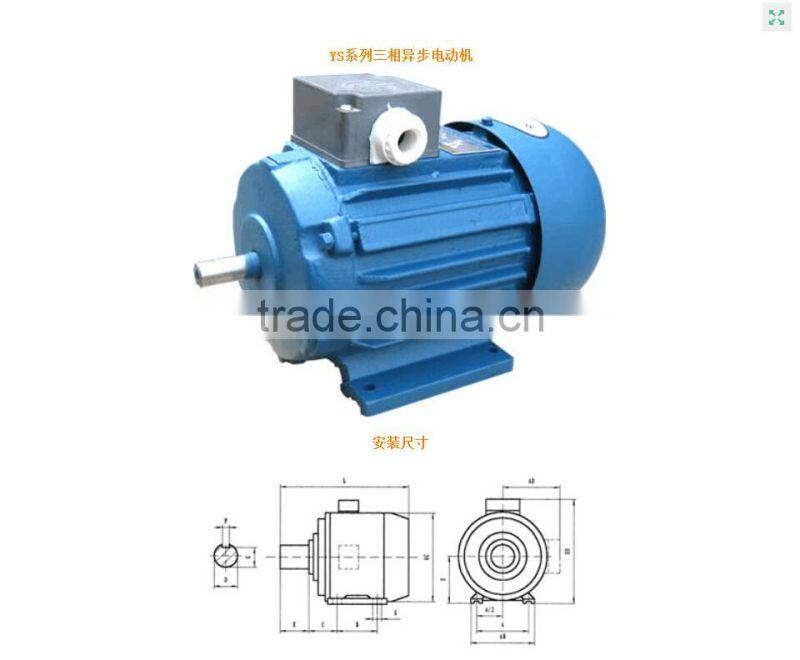

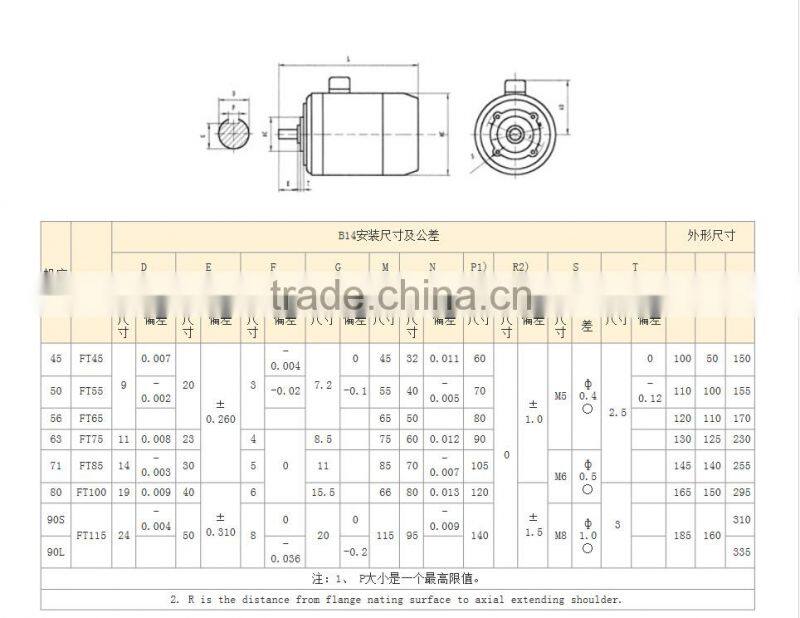

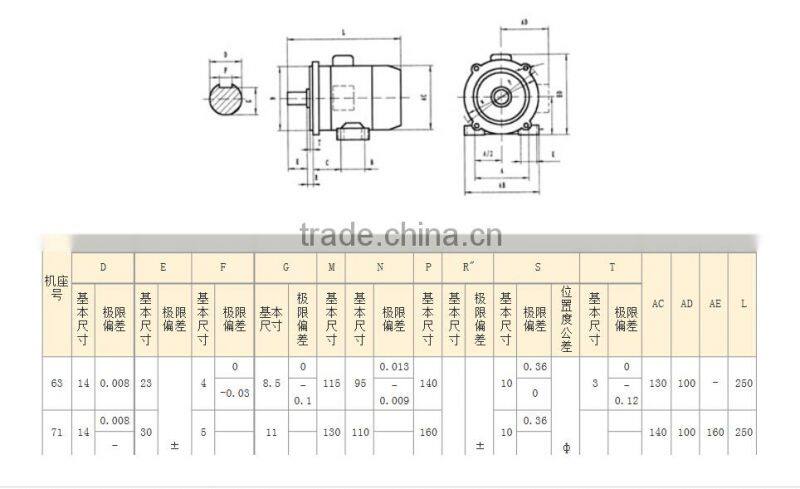

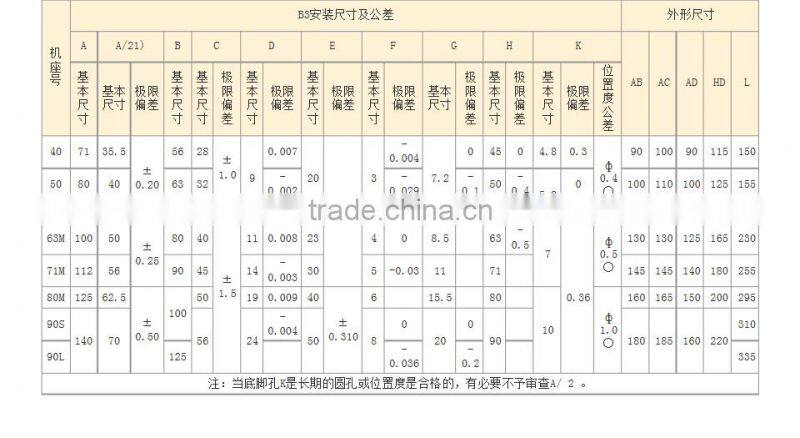

YS electric motor mounting:
YS electric motor manufacturing process:
• Stamping of lamination
• Rotor die-casting
• Winding and inserting – both manual and semi-automatically
• Vacuum varnishing
• Machining shaft, housing, end shields, etc…
• Rotor balancing
• Painting – both wet paint and powder coating
• Motor assembly
• Packing
• Inspecting spare parts every processing
• 100% test after each process and final test before packing

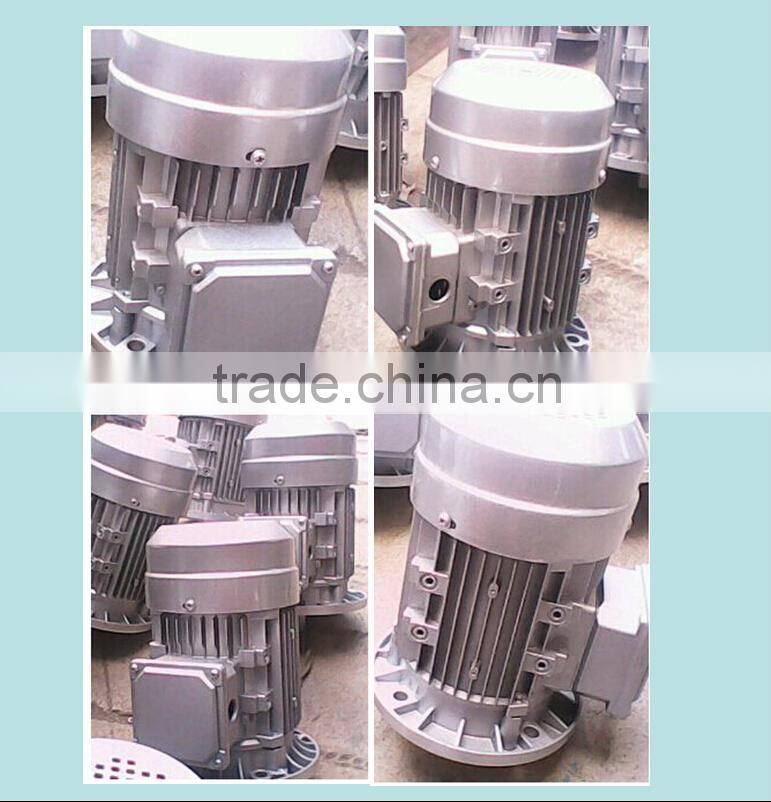

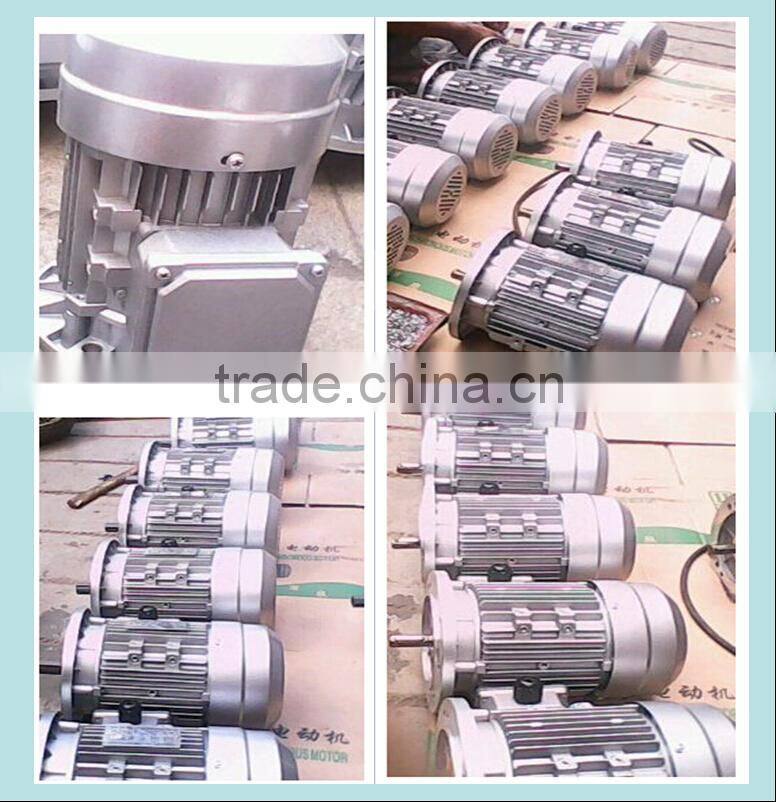

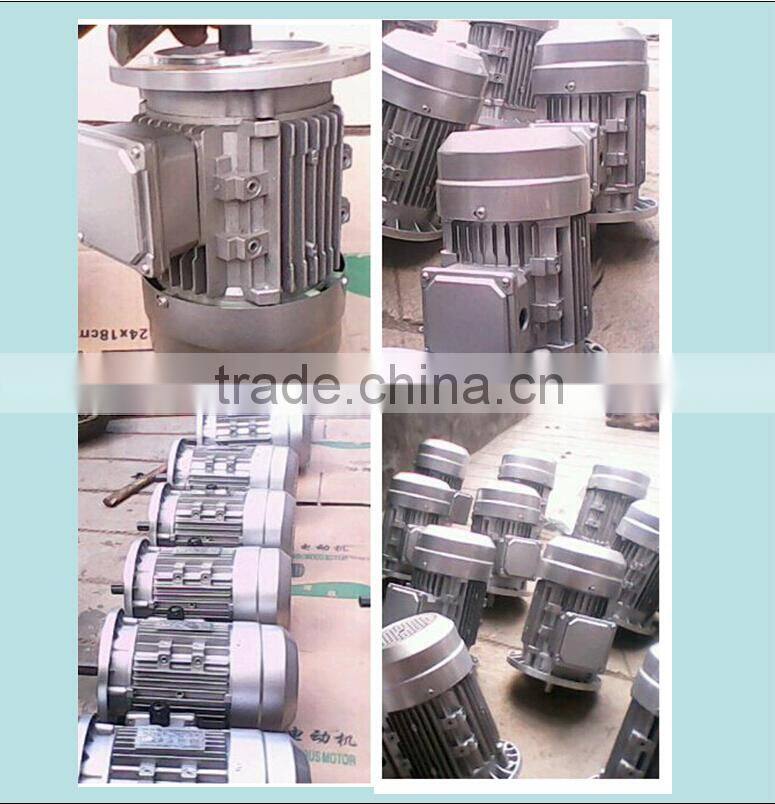

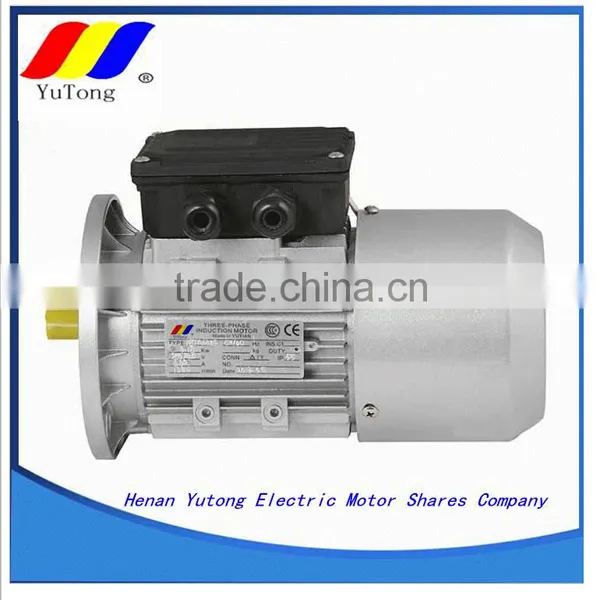

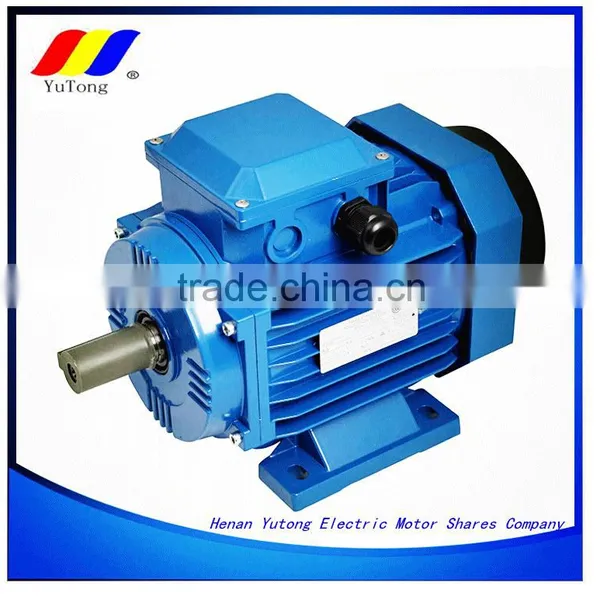

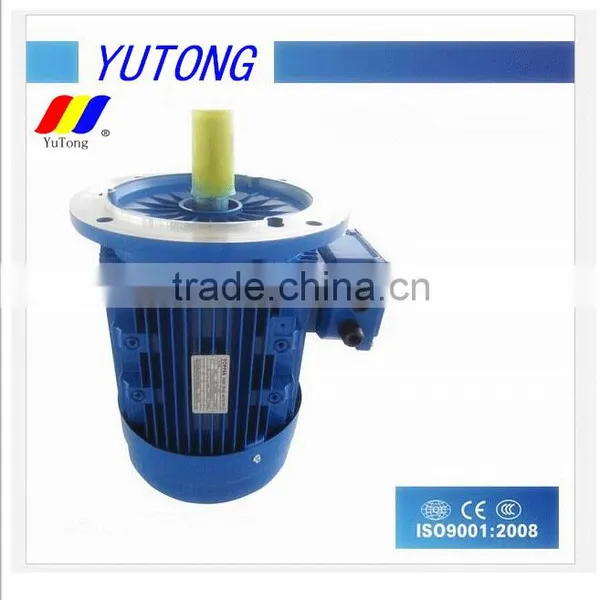

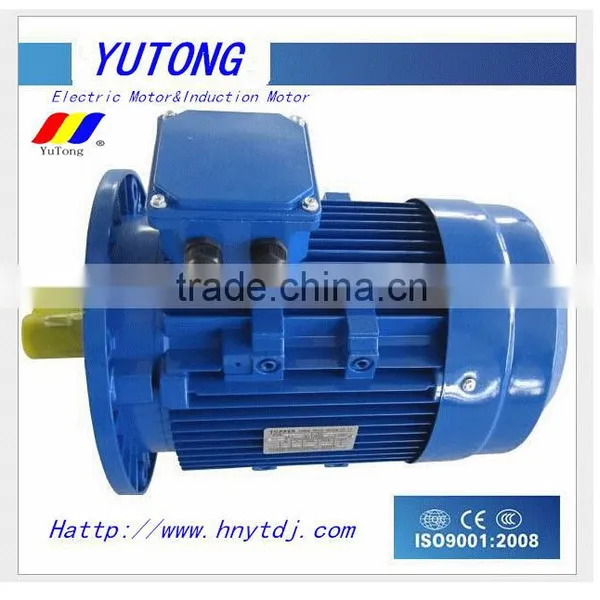

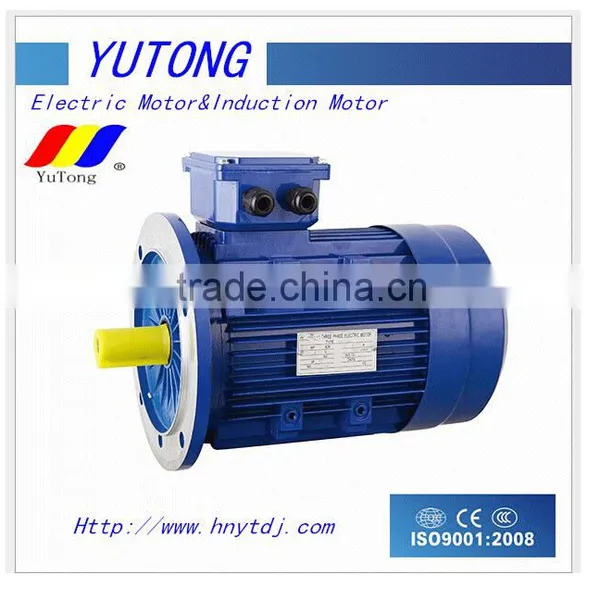

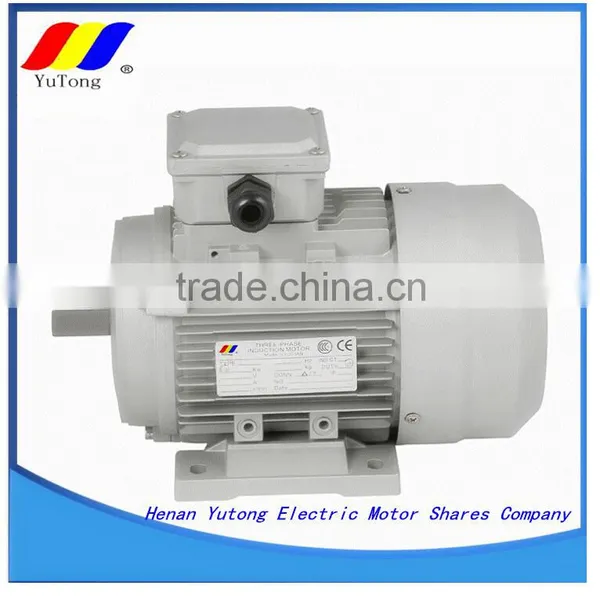

YS electric motor pictures:
The Exhibition :
Certificates:
